FR600 AC/D (FZAV) - Honda Tiller, Made in Japan (SN: FZAV-2010384 - FZAV-2099999) FR600 CONTROL Parts Diagram

Tiller, Made in Japan

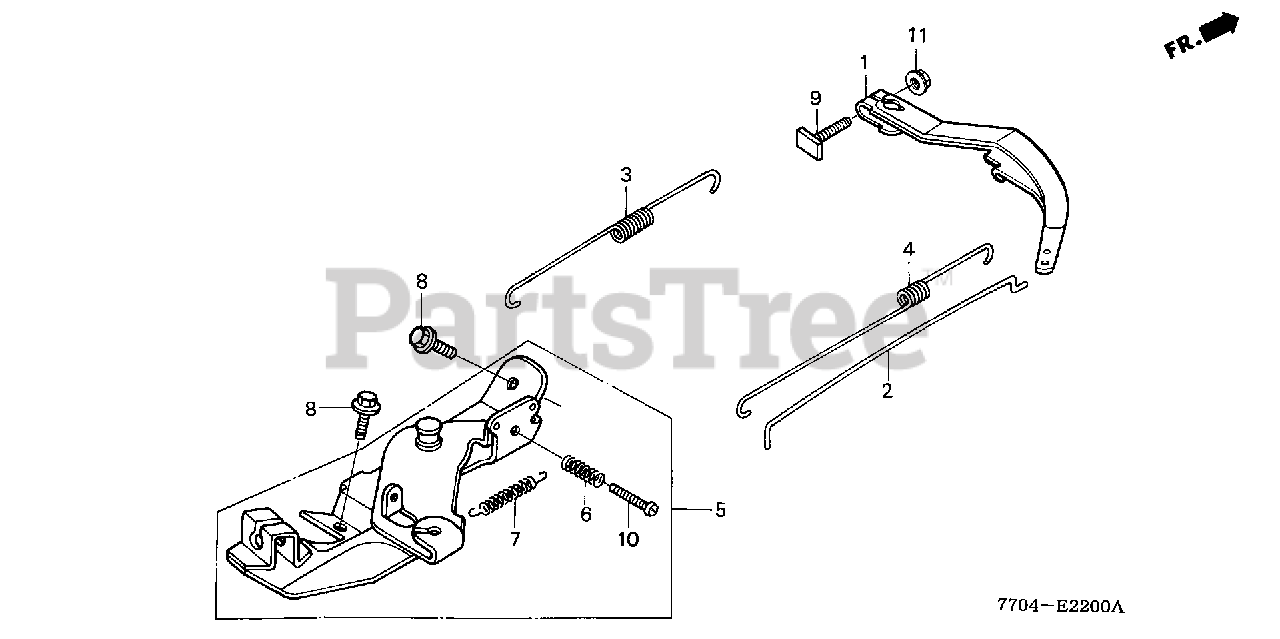

FR600 CONTROL Parts Diagram

  • Title
1

Honda 16551-ZE0-010

ARM, GOVERNOR

$16.99

$

In Stock, only 2 left!

0

2

Honda 16555-ZE1-000

ROD, GOVERNOR

$4.99

$

In Stock, only 3 left!

0

3

Honda 16561-ZE1-020

SPRING, GOVERNOR

$5.49

$

In Stock, Qty 10

0

4

Honda 16562-ZE1-020

SPRING, THROTTLE RETURN

$3.99

$

In Stock, Qty 20+

0

5

Honda 16570-733-751

CONTROL ASSY.

$35.99

$

Usually ships in 3-6 days

0

6

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$5.49

$

In Stock, Qty 7

0

7

Honda 16592-ZE1-810

SPRING, CABLE RETURN

$2.49

$

In Stock, only 1 left!

0

8

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 17

0

9

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

$3.49

$

In Stock, only 3 left!

0

10

Honda 93500-05028-0H

SCREW, PAN (5X28)

$1.49

$

Usually ships in 3-6 days

0

11

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0
