FR600 A (FZAV) - Honda Tiller, Made in Japan (SN: FZAV-1000001 - FZAV-1999999) PULLEY Parts Diagram

Tiller, Made in Japan

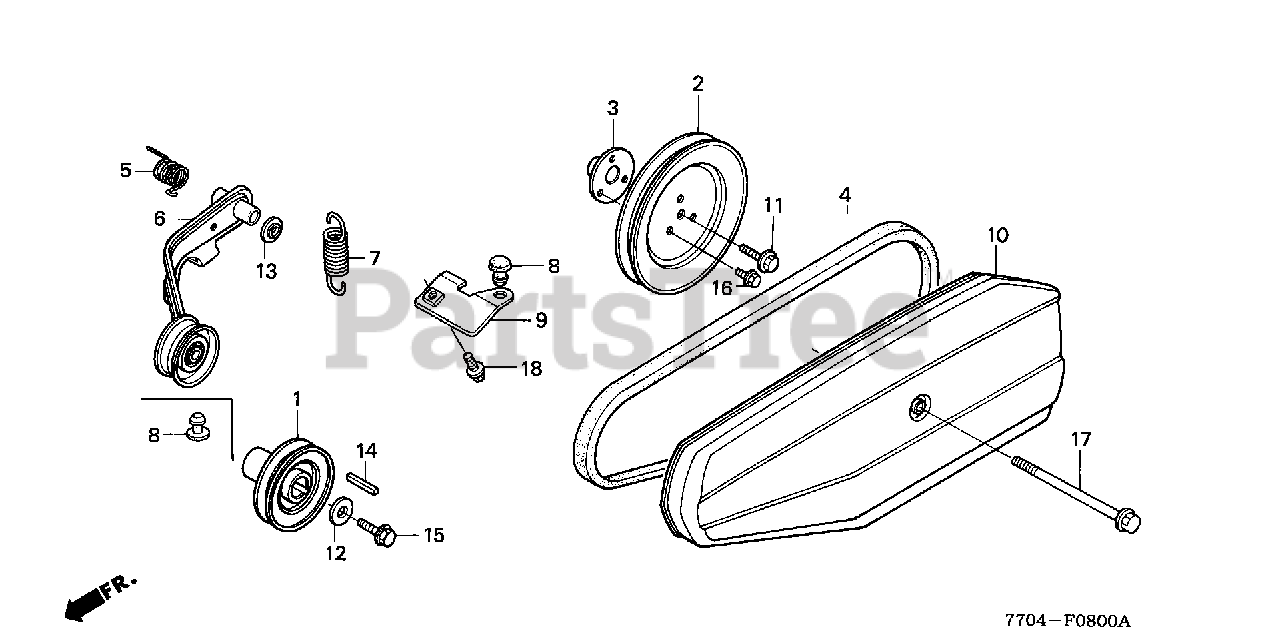

PULLEY Parts Diagram

  • Title

1

Honda 22411-734-700

PULLEY, DRIVE (80MM)

$57.99

$

Usually ships in 3-6 days

0

2

Honda 22415-733-000

PULLEY, DRIVEN (156MM)

$48.99

$

Usually ships in 3-6 days

0

3

Honda 22426-733-000

BOSS, DRIVEN PULLEY

$12.99

$

Usually ships in 3-6 days

0

4

Honda 22431-734-013

V-BELT (40)

$41.99

$

In Stock, only 1 left!

0

5

Honda 22512-734-800

SPRING, TENSION ARM RETURN

$5.49

$

Usually ships in 3-6 days

0

6

Honda 22520-734-000

ARM, TENSION

$59.99

$

Usually ships in 3-6 days

0

7

Honda 22531-734-630

SPRING, BELT TENSIONER

$

$

Not available

8

Honda 61112-727-000

RUBBER, TENSIONER ARM

$3.99

$

Usually ships in 3-6 days

0

9

Honda 61112-770-000

STOPPER, TENSIONER ARM

$10.99

$

Usually ships in 3-6 days

0

10

Honda 63610-734-000ZD

COVER, BELT *R280* (POWER RED)

$85.99

$

Usually ships in 3-6 days

0

11

Honda 90101-733-000

BOLT, FLANGE

$4.49

$

In Stock, only 1 left!

0

12

Honda 90428-844-650

WASHER (8MM)

$4.99

$

Usually ships in 3-6 days

0

13

Honda 90563-045-000

WASHER, NUMBER BRACKET MOUNTING

$4.49

$

Usually ships in 3-6 days

0

14

Honda 90746-835-000

KEY (5X5X33)

$9.49

$

In Stock, only 1 left!

0

15

Honda 95701-08025-00

BOLT, FLANGE (8X25)

$2.49

$

In Stock, only 3 left!

0

16

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 13

0

17

Honda 95701-06075-00

BOLT, FLANGE (6X75)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 95701-08012-00

BOLT, FLANGE (8X12)

$1.49

$

In Stock, only 2 left!

0
