FR600 A (FZAV) - Honda Tiller, Made in Japan (SN: FZAV-1000001 - FZAV-1999999) HANDLEBAR Parts Diagram

Tiller, Made in Japan

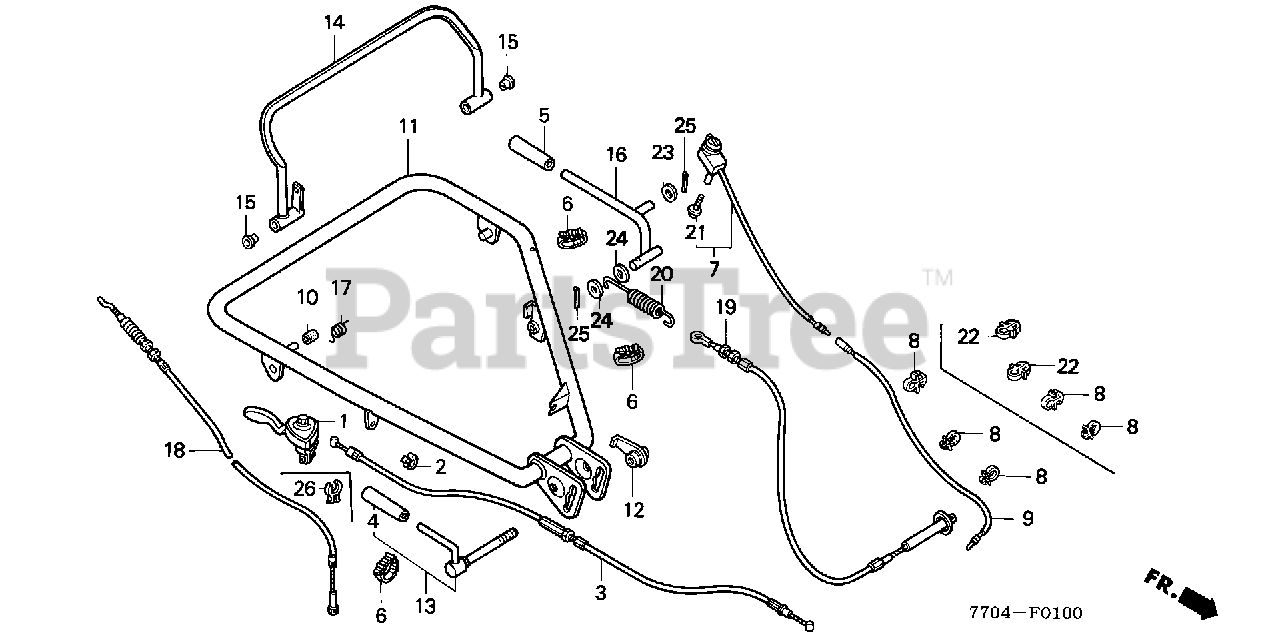

HANDLEBAR Parts Diagram

  • Title

1

Honda 17850-723-003

LEVER ASSY., THROTTLE (STEEL PRESSED LEVER)

Note: Use up to Frame SN 1007879.

$22.99

$

In Stock, only 1 left!

0

1

Honda 17850-723-013

LEVER ASSY., THROTTLE (RESIN MOLDED LEVER)

Note: Use from Frame SN 1007880.

$22.99

$

In Stock, only 1 left!

0

2

Honda 17851-729-003

M-CLIP (STEEL PLATE CLIP)

Note: Use up to Frame SN 1007759.

$4.99

$

In Stock, only 1 left!

0

3

Honda 17910-770-000

CABLE, THROTTLE (NOT AVAILABLE)

Note: Use up to Frame SN 1007879.

$

$

Not available

3

Honda 17910-770-010

CABLE, THROTTLE

Note: Use from Frame SN 1007880.

$28.99

$

Usually ships in 3-6 days

0

4

Honda 22542-900-000

GRIP, FR. CLUTCH LEVER

Note: Use up to Frame SN 1007243.

$6.99

$

Usually ships in 3-6 days

0

5

Honda 22547-734-A20

GRIP, CLUTCH LEVER

$

$

Not available

6

Honda 32161-404-000

BAND B1, WIRE

Note: Use up to Frame SN 1007104.

$2.99

$

In Stock, only 4 left!

0

6

Honda 90674-WA8-003

BAND, CABLE (120MM) (BLACK)

Note: Use from Frame SN 1007105.

$4.49

$

Usually ships in 3-6 days

0

7

Honda 35120-733-F51

SWITCH ASSY., ENGINE STOP

$45.99

$

Usually ships in 3-6 days

0

8

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE

$2.49

$

In Stock, only 1 left!

0

9

Honda 36151-733-000

WIRE, ENGINE STOP

$17.99

$

Usually ships in 3-6 days

0

10

Honda 45104-HC3-000

RUBBER, SHOE SPRING

$2.49

$

In Stock, Qty 5

0

11

Honda 53110-770-880

PIPE, HANDLE (CHROME PLATED) (NOT AVAILABLE)

$

$

Not available

12

Honda 53137-719-000

NUT, HANDLE LOCK

$26.99

$

In Stock, only 2 left!

0

13

Honda 53140-770-000

LEVER, HANDLE ADJUSTING

$64.99

$

Usually ships in 3-6 days

0

14

Honda 54410-770-700ZA

LEVER, CLUTCH *NH105* (MAT BLACK)

$109.99

$

In Stock, only 1 left!

0

15

Honda 54412-952-770

BUSH, CLUTCH LEVER

$4.99

$

In Stock, Qty 20+

0

16

Honda 54451-765-630

LEVER, MAIN CLUTCH

$34.99

$

Usually ships in 3-6 days

0

17

Honda 54468-734-A21

SPRING, MAIN CLUTCH ARM RETURN

$4.99

$

Usually ships in 3-6 days

0

18

Honda 54510-770-A00

SEE PART DETAILS - PRI; CABLE, MAIN CLUTCH

$53.99

$

Usually ships in 3-6 days

0

19

Honda 54650-770-A00

CABLE, ROTARY CLUTCH

$63.99

$

Usually ships in 3-6 days

0

20

Honda 54659-770-010

SPRING, ROTARY CLUTCH

$13.99

$

Usually ships in 3-6 days

0

21

Honda 90101-733-921

BOLT (3X12) (SEMS)

$

$

Not available

23

Honda 94102-10000

WASHER, PLAIN (10MM)

$0.99

$

In Stock, only 1 left!

0

24

Honda 94103-10000

WASHER, PLAIN (10MM)

$0.99

$

Usually ships in 3-6 days

0

25

Honda 94201-20220

PIN, SPLIT (2.0X22)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 94201-20350

PIN, SPLIT (2.0X35)

$1.49

$

Usually ships in 3-6 days

0

26

Honda 17851-777-003

CLIP, THROTTLE (RESIN MOLDED CLIP)

Note: Use from Frame SN 1007760.

$2.49

$

In Stock, only 4 left!

0
