FR524 - Exmark 52" Front Runner Deck (SN: 600000 - 669999) (2006) Deck Group FR604 (Part 2) Parts Diagram

52" Front Runner Deck

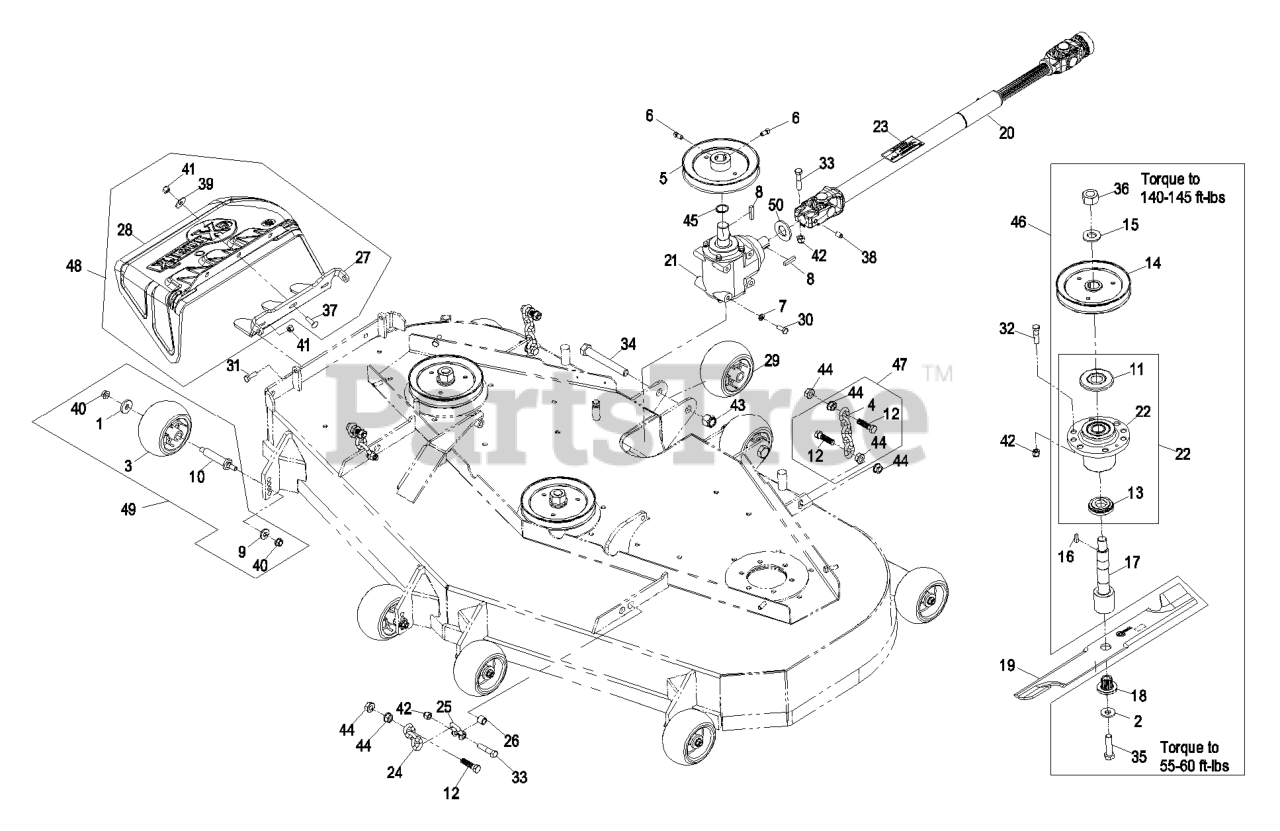

Deck Group FR604 (Part 2) Parts Diagram

  • Title

1

Exmark 63-8410

WASHER

$1.99

$

In Stock, Qty 14

0

2

Exmark 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 13

0

3

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 16

0

4

Exmark 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 16

0

5

Exmark 1-643292

SHEAVE-SPLIT

$92.99

$

In Stock, only 1 left!

0

6

Exmark 1-803022

SCREW-SET

$2.99

$

In Stock, Qty 20+

0

7

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

8

Exmark 13-2840

KEY-SQUARE

$1.99

$

In Stock, Qty 5

0

9

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

10

Exmark 99-2842

126-2928
(Superseded to 126-2928)

$27.99

$

In Stock, Qty 7

0

11

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$5.49

$

In Stock, only 2 left!

0

12

Exmark 103-1898

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

13

Exmark 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 3 left!

0

14

Exmark 103-2794

SHEAVE,BLADE DRIVE 6.30

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$68.99

$

In Stock, only 2 left!

0

15

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 15

0

16

Exmark 103-2982

KEY

$2.99

$

In Stock, Qty 12

0

17

Exmark 103-9086

KIT, SPLINED SPINDLE 103-

$214.99

$

In Stock, only 4 left!

0

18

Exmark 103-3037

BUSHING,SPLINED

$22.99

$

In Stock, Qty 20+

0

19

Exmark 103-6403

103-6403-S
(Superseded to 103-6403-S)

$31.99

$

In Stock, Qty 20+

0

Exmark 103-6388

103-6388-S
(Superseded to 103-6388-S)

$37.99

$

In Stock, Qty 20+

0

Exmark 103-6393

103-6393-S
(Superseded to 103-6393-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK604Q.

$30.99

$

In Stock, Qty 20+

0

Exmark 103-6383

103-6383-S
(Superseded to 103-6383-S)

$34.99

$

In Stock, Qty 5

0

Exmark 103-6398

116-5174-S
(Superseded to 116-5174-S)

$30.99

$

In Stock, only 1 left!

0

20

Exmark 109-2767

116-0312
(Superseded to 116-0312)

$

$

Not available

21

Exmark 103-7959

GEARBOX,90 DEGREES

$

$

Not available

22

Exmark 103-8280

KIT, CUTTER HOUSING

$254.99

$

In Stock, only 3 left!

0

23

Exmark 103-8425

DECAL-DRIVELINE

$11.99

$

Usually ships in 3-6 days

0

24

Exmark 103-9859

CHAIN-DECKLIFT

$6.99

$

Usually ships in 3-6 days

0

25

Exmark 103-9861

SHACKLE,FRONT CHAIN

$

$

Not available

26

Exmark 103-9863

BUSHING,SHACKLE

$7.99

$

Usually ships in 3-6 days

0

27

Exmark 109-0938-01

BRACKET,DISCHARGE CHUTE

$88.99

$

Usually ships in 3-6 days

0

28

Exmark 109-2738

CHUTE,DISCHARGE

$74.99

$

In Stock, Qty 7

0

29

Exmark 109-2965

ROLLER, FULL HUB

$31.99

$

Usually ships in 3-6 days

0

30

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 16

0

31

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

33

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

34

Exmark 327-12

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

35

Exmark 3213-5

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

36

Exmark 3217-46

NUT-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on nut, Item #36 and setscrew, item #38.

$12.99

$

In Stock, Qty 13

0

37

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, only 2 left!

0

38

Exmark 3247-4

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on nut, Item #36 and setscrew, item #38.

$5.99

$

Usually ships in 3-6 days

0

39

Exmark 3256-82

WASHER-FLAT

$0.99

$

In Stock, Qty 7

0

40

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

41

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

42

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 14

0

43

Exmark 3296-53

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

44

Exmark 32128-37

NUT-HF

$4.49

$

In Stock, Qty 18

0

45

Exmark 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 16

0

46

Exmark 103-9076

ASM, CUTTER HSG COMPLETE

$470.99

$

In Stock, only 4 left!

0

47

Exmark 103-9792

DECK CHAIN ASM

$13.99

$

In Stock, only 1 left!

0

48

Exmark 109-2148

116-1745
(Superseded to 116-1745)

$215.99

$

In Stock, only 1 left!

0

49

Exmark 103-4051

116-9981
(Superseded to 116-9981)

$52.99

$

In Stock, Qty 20+

0

50

Exmark 109-4492

WASHER,SPECIAL

$14.99

$

Usually ships in 3-6 days

0

Exmark 103-9140

PAINT, TOUCH UP

$21.99

$

In Stock, only 1 left!

0

Exmark 1-850337

PAINT,SPRAY RED

$27.99

$

In Stock, Qty 16

0

Exmark 103-5217

PACK,LUBE MOBIL HTS GREAS

$9.49

$

In Stock, only 1 left!

0

Exmark MK604Q

Mulch Kit

$

$

Currently unavailable
