FR500 K1 A (FR500) - Honda Tiller, Made in Japan (SN: FR500-1100001 - FR500-9999999) FR500 RECOIL STARTER K-K1 Parts Diagram

Tiller, Made in Japan

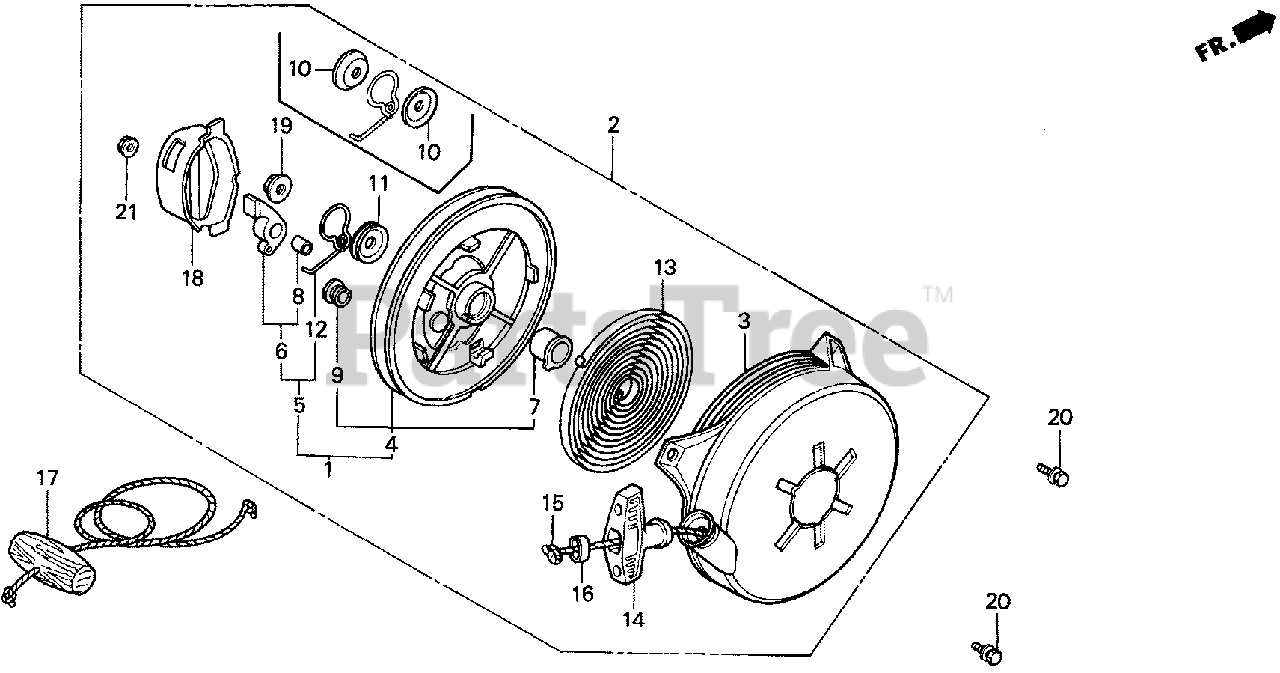

FR500 RECOIL STARTER K-K1 Parts Diagram

  • Title
2

Honda 28400-883-040ZB

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R8* (BRIGHT RED)

$

$

Currently unavailable

2

Honda 28400-883-040ZC

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R8* (BRIGHT RED)
(Superseded to 28400-883-505)

$

$

Not available

3

Honda 28410-883-030ZB

SEE PART DETAILS - SUP; CASE, STARTER *R8* (BRIGHT RED)

$96.99

$

Usually ships in 3-6 days

0

4

Honda 28420-889-010

REEL, STARTER

$36.99

$

Usually ships in 3-6 days

0

5

Honda 28421-883-315

SEE PART DETAILS - PRI; RATCHET KIT

$16.99

$

In Stock, only 1 left!

0

$

$

Not available

7

Honda 28424-883-000

BOSS, REEL

$5.99

$

Usually ships in 3-6 days

0

8

Honda 28425-889-300

BUSH, RATCHET

$4.99

$

Usually ships in 3-6 days

0

9

Honda 28427-883-300

BUSH, REEL STARTER

$5.99

$

Usually ships in 3-6 days

0

11

Honda 28432-883-000

PLATE, FRICTION

$5.49

$

Usually ships in 3-6 days

0

12

Honda 28441-883-020

SEE PART DETAILS - PRI; SPRING, FRICTION

$9.99

$

In Stock, only 1 left!

0

13

Honda 28442-883-000

SPRING, RETURN

$21.99

$

Usually ships in 3-6 days

0

14

Honda 28461-883-000

GRIP, STARTER

$11.99

$

In Stock, only 1 left!

0

15

Honda 28462-ZH8-003

SEE PART DETAILS - PRI; ROPE, RECOIL STARTER (#5X55")

$12.99

$

In Stock, only 4 left!

0

16

Honda 28463-883-000

SUPPORT, GRIP

$3.99

$

Usually ships in 3-6 days

0

17

Honda 28470-816-000

ROPE, STARTER (#5X55")

$9.99

$

In Stock, only 1 left!

0

18

Honda 28474-YA0-N40

SEE PART DETAILS - PRI; COVER, REEL STARTER

$11.99

$

Usually ships in 3-6 days

0

18

Honda 28474-883-010

SEE PART DETAILS - SUP; COVER, REEL STARTER
(Superseded to 28474-YA0-N40)

$11.99

$

Usually ships in 3-6 days

0

19

Honda 90115-659-003

NUT, SELF-LOCK (8MM)

$0.99

$

In Stock, Qty 20+

0

20

Honda 95701-06008-00

BOLT, FLANGE (6X8)

$3.49

$

In Stock, Qty 20+

0

21

Honda 94050-05000

NUT, FLANGE (5MM)

$1.99

$

In Stock, Qty 20+

0
