FR500 K1 A (FR500) - Honda Tiller, Made in Japan (SN: FR500-1100001 - FR500-9999999) FR500 FAN COVER K-K1 Parts Diagram

Tiller, Made in Japan

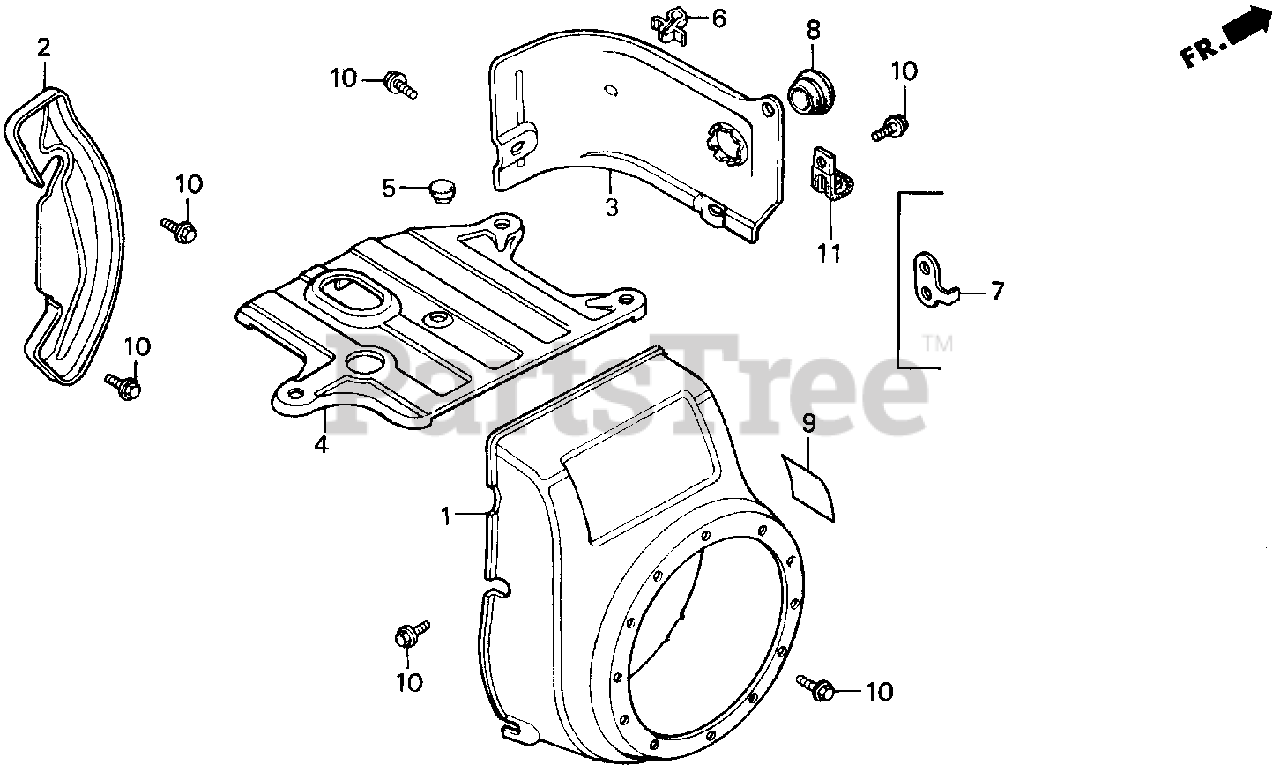

FR500 FAN COVER K-K1 Parts Diagram

  • Title
1

Honda 19610-883-R90ZB

SEE PART DETAILS - PRI; COVER, FAN *R8* (BRIGHT RED)

$

$

Not available

1

Honda 19610-883-020ZB

SEE PART DETAILS - SUP; COVER, FAN *R8* (BRIGHT RED)

$

$

Currently unavailable

2

Honda 19611-883-000

PLATE, SIDE

$16.99

$

Usually ships in 3-6 days

0

3

Honda 19631-883-781ZA

SHROUD *R8* (BRIGHT RED)

$

$

Not available

4

Honda 19641-883-781ZA

COVER, TOP *R8* (BRIGHT RED)

$

$

Not available

6

Honda 30701-883-000

SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)

$3.99

$

In Stock, only 1 left!

0

7

Honda 32302-734-K50

STAY, WIRE CLIP (B)

$

$

Not available

8

Honda 81329-567-020

GROMMET, DRAIN HOLE

$5.49

$

Usually ships in 3-6 days

0

9

Honda 87594-883-000

MARK, OIL CAUTION

$

$

Not available

10

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0
