FR500 A (FR500) - Honda Tiller, Made in Japan (SN: FR500-1000001 - FR500-9999999) SECONDARY TRANSMISSION Parts Diagram

Tiller, Made in Japan

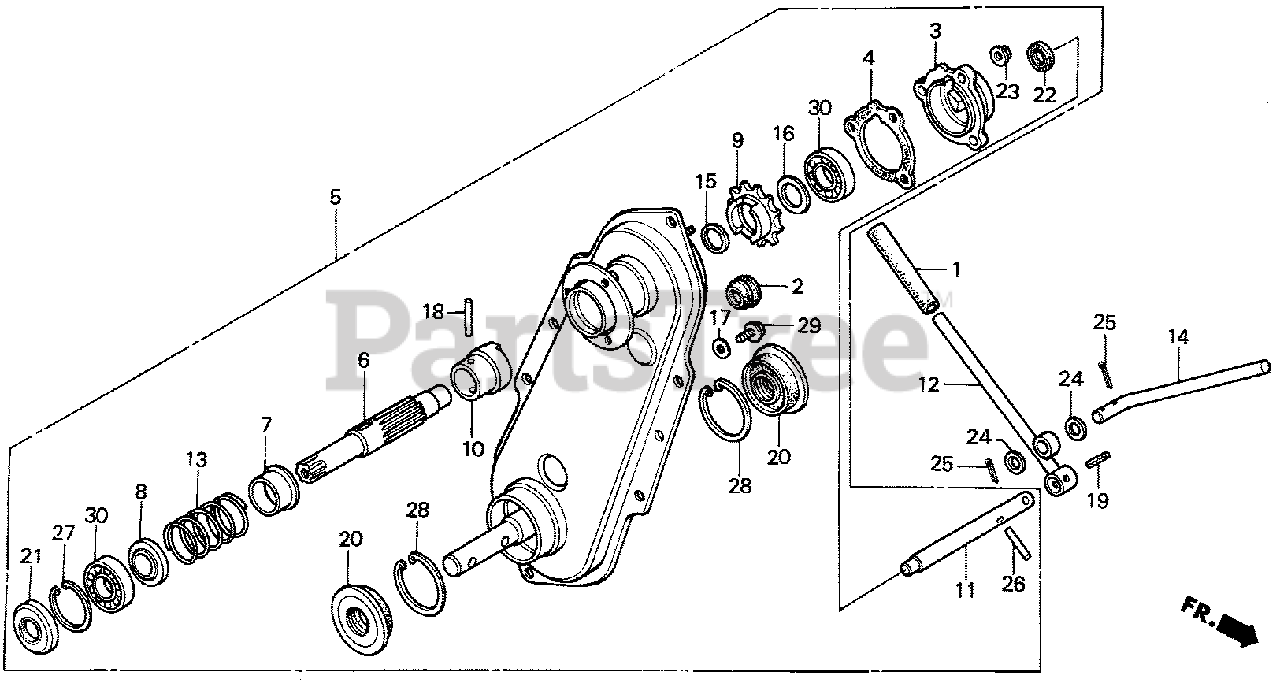

SECONDARY TRANSMISSION Parts Diagram

  • Title

1

Honda 22542-900-000

GRIP, LEVER

$6.99

$

Usually ships in 3-6 days

0

2

Honda 71112-723-750

GROMMET, ROTARY

$5.49

$

Usually ships in 3-6 days

0

3

Honda 71371-723-750

METAL, CLUTCH (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 71372-770-801

GASKET, CLUTCH METAL

$6.99

$

Usually ships in 3-6 days

0

5

Honda 72000-723-750

TRANSMISSION ASSY., SECONDARY

Note: Use up to Frame SN 1003285.

$

$

Currently unavailable

5

Honda 72000-723-751

TRANSMISSION ASSY., SECONDARY (NOT AVAILABLE)

Note: Use from Frame SN 1003286.

$

$

Currently unavailable

6

Honda 73251-723-750

SHAFT, CLUTCH

$

$

Currently unavailable

7

Honda 73258-723-750

RETAINER A, CLUTCH SPRING

$8.49

$

Usually ships in 3-6 days

0

8

Honda 73259-723-750

RETAINER B, CLUTCH SPRING

$8.49

$

Usually ships in 3-6 days

0

9

Honda 73550-723-750

SPROCKET, SECONDARY DRIVE (11T)

$81.99

$

Usually ships in 3-6 days

0

10

Honda 73551-723-750

SHIFTER, CLUTCH

$49.99

$

Usually ships in 3-6 days

0

11

Honda 74152-723-751

SHAFT, CLUTCH RELEASE

$

$

Not available

12

Honda 74153-723-750

LEVER, CLUTCH

$

$

Not available

13

Honda 74156-723-750

SPRING, CLUTCH

$11.99

$

Usually ships in 3-6 days

0

14

Honda 74161-723-750

BAR, REVERSE STOP

$17.99

$

Usually ships in 3-6 days

0

15

Honda 90453-428-000

WASHER, THRUST (22MM)

$3.49

$

Usually ships in 3-6 days

0

16

Honda 90454-428-000

WASHER, THRUST (20X1.00)

$3.49

$

Usually ships in 3-6 days

0

17

Honda 90461-357-000

SEE PART DETAILS - SUP; WASHER, SEALING (6.5X12)
(Superseded to 90463-KRM-840)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 90758-723-750

PIN, ROTARY CLUTCH (5X33.5)

$4.49

$

Usually ships in 3-6 days

0

19

Honda 90759-723-751

PIN, ROLLER (6X36)

$

$

Not available

20

Honda 91208-723-751

SEE PART DETAILS - PRI; SEAL, WATER (30X62X14)

$20.99

$

Usually ships in 3-6 days

0

21

Honda 91209-723-751

SEE PART DETAILS - PRI; OIL SEAL (20X52X6)

$11.99

$

Usually ships in 3-6 days

0

22

Honda 91210-723-751

SEE PART DETAILS - PRI; OIL SEAL (12X21X5)

$6.49

$

In Stock, only 1 left!

0

23

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 15

0

24

Honda 94101-08800

SEE PART DETAILS - SUP; WASHER, PLAIN (8MM)

$2.49

$

In Stock, only 3 left!

0

25

Honda 94201-20150

PIN, COTTER (2.0X15)

$1.49

$

In Stock, only 2 left!

0

26

Honda 94305-60182

PIN, SPRING (6X18) (NOT AVAILABLE)

$

$

Currently unavailable

27

Honda 90601-723-750

CIRCLIP (INNER) (52MM)

Note: Use from Frame SN 1003569.

$

$

Not available

27

Honda 94520-50000

CIRCLIP (INNER) (50MM)

Note: Use up to Frame SN 1003285.

$3.49

$

Usually ships in 3-6 days

0

27

Honda 94520-52000

CIRCLIP (INNER) (52MM)

Note: Use from Frame SN 1003286 to 1003568.

$4.49

$

Usually ships in 3-6 days

0

28

Honda 94520-62000

CIRCLIP (INNER) (62MM)

$2.99

$

In Stock, only 3 left!

0

29

Honda 95700-06010-08

BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0

29

Honda 95701-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0

30

Honda 96100-63040-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6304)

$18.99

$

Usually ships in 3-6 days

0
