FR500 A (FR500) - Honda Tiller, Made in Japan (SN: FR500-1000001 - FR500-9999999) IGNITION COIL Parts Diagram

Tiller, Made in Japan

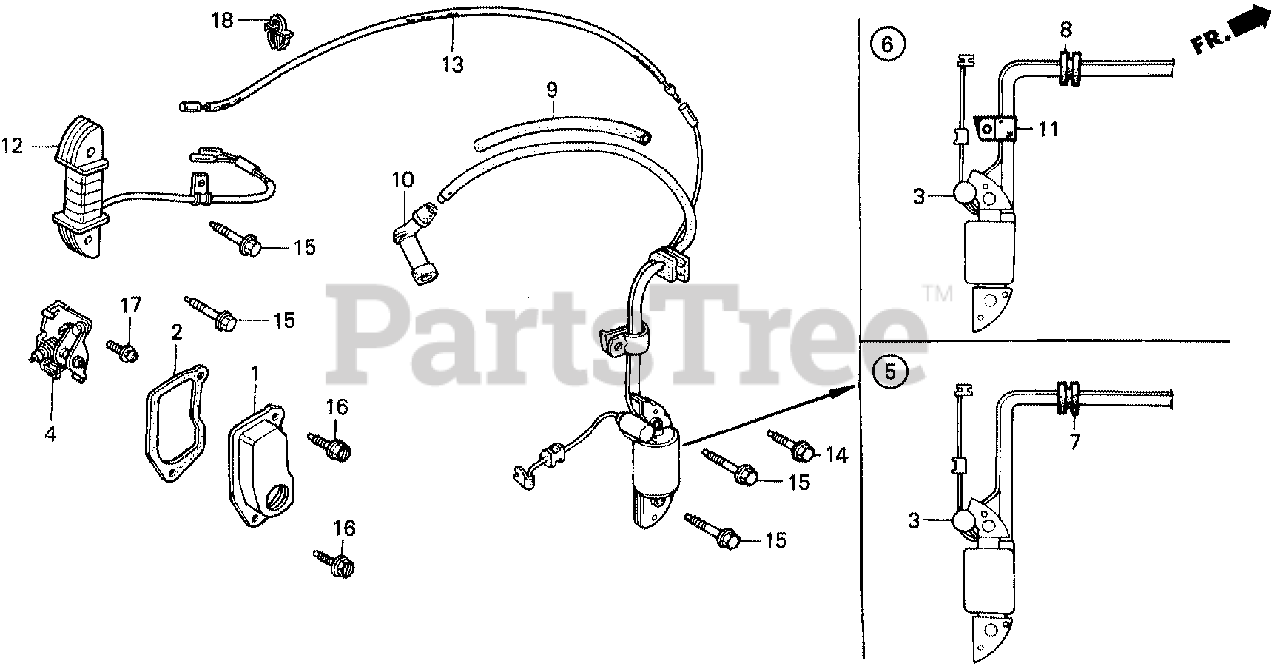

IGNITION COIL Parts Diagram

  • Title
1

Honda 30211-883-000

COVER, POINTS

$

$

Not available

2

Honda 30215-883-306

GASKET, POINT COVER

$

$

Not available

3

Honda 30251-883-003

CONDENSER

Note: Use from Engine SN 1546272.

$22.99

$

In Stock, only 1 left!

0

4

Honda 30280-883-005

POINTS ASSY.

$35.99

$

Usually ships in 3-6 days

0

5

Honda 30560-883-015

SEE PART DETAILS - PRI; COIL ASSY., IGNITION

$148.99

$

Usually ships in 3-6 days

0

7

Honda 30563-883-000

SEE PART DETAILS - SUP; GROMMET, WIRE

$

$

Currently unavailable

10

Honda 30700-865-013

CAP ASSY., NOISE SUPPRESSOR

$

$

Not available

13

Honda 35310-887-790

WIRE A, ENGINE STOP

$14.99

$

Usually ships in 3-6 days

0

15

Honda 90017-883-000

BOLT, FLANGE (6X32)

$3.49

$

In Stock, only 2 left!

0

16

Honda 90019-883-000

BOLT, FLANGE (5X10)

$3.49

$

Usually ships in 3-6 days

0

17

Honda 90051-883-000

SCREW-WASHER (5X12)

$2.49

$

Usually ships in 3-6 days

0
