FR500 A (FR500) - Honda Tiller, Made in Japan (SN: FR500-1000001 - FR500-9999999) GOVERNOR ARM Parts Diagram

Tiller, Made in Japan

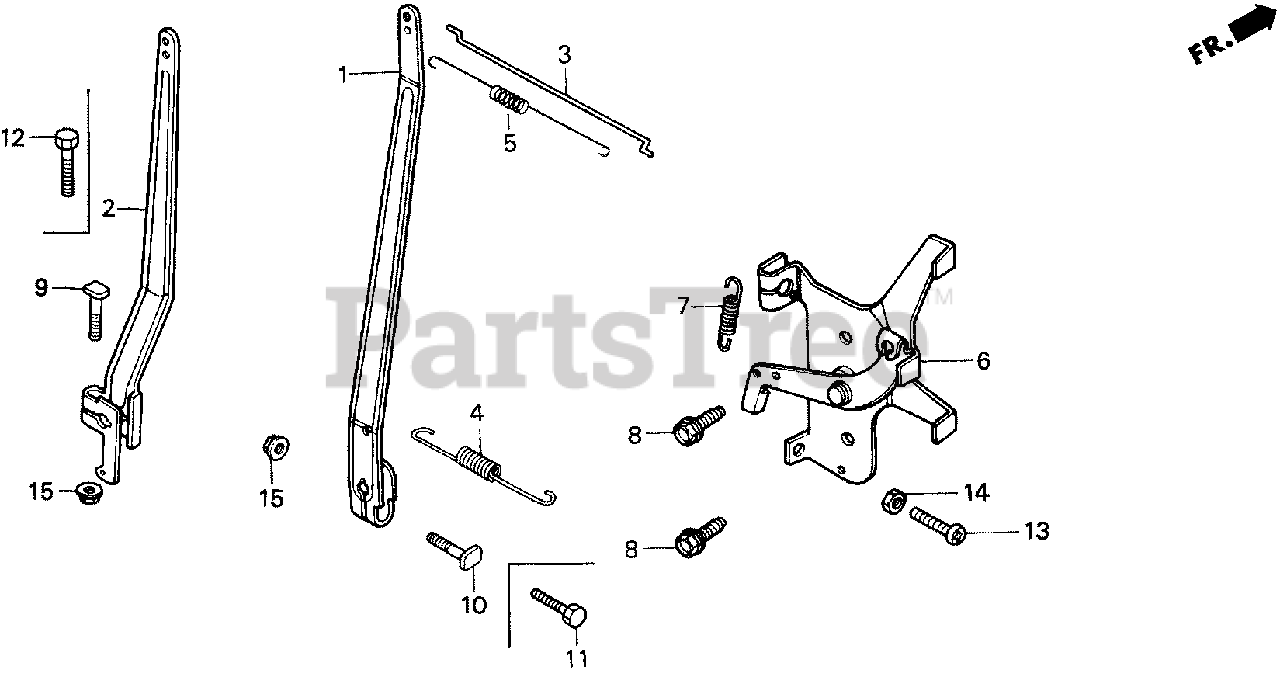

GOVERNOR ARM Parts Diagram

  • Title

1

Honda 16551-883-000

ARM, GOVERNOR

$13.99

$

Usually ships in 3-6 days

0

3

Honda 16555-883-010

ROD, GOVERNOR

$

$

Not available

4

Honda 16561-883-010

SPRING, GOVERNOR

$6.49

$

In Stock, only 1 left!

0

5

Honda 16562-883-010

SPRING, THROTTLE RETURN

$4.99

$

In Stock, Qty 8

0

6

Honda 16580-723-950

LEVER, CONTROL

$

$

Not available

7

Honda 16592-883-310

SPRING, CABLE RETURN

$3.49

$

Usually ships in 3-6 days

0

8

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 17

0

11

Honda 92101-06020-0A

BOLT, HEX. (6X20)

$1.49

$

Usually ships in 3-6 days

0

13

Honda 93500-06020

SEE PART DETAILS - SUP; SCREW, PAN (6X20)

Note: Use up to Engine SN 1484486.

$

$

Currently unavailable

13

Honda 93500-06020-0A

SEE PART DETAILS - PRI; SCREW, PAN (6X20)

Note: Use up to Engine SN 1484486.

$1.49

$

Usually ships in 3-6 days

0

13

Honda 93500-06025

SEE PART DETAILS - SUP; SCREW, PAN (6X25)

Note: Use from Engine SN 1484487.

$

$

Currently unavailable

14

Honda 94002-06000-0S

NUT, HEX. (6MM)

$1.99

$

Usually ships in 3-6 days

0

15

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0
