FR500 A (FR500) - Honda Tiller, Made in Japan (SN: FR500-1000001 - FR500-9999999) CHANGE LEVER Parts Diagram

Tiller, Made in Japan

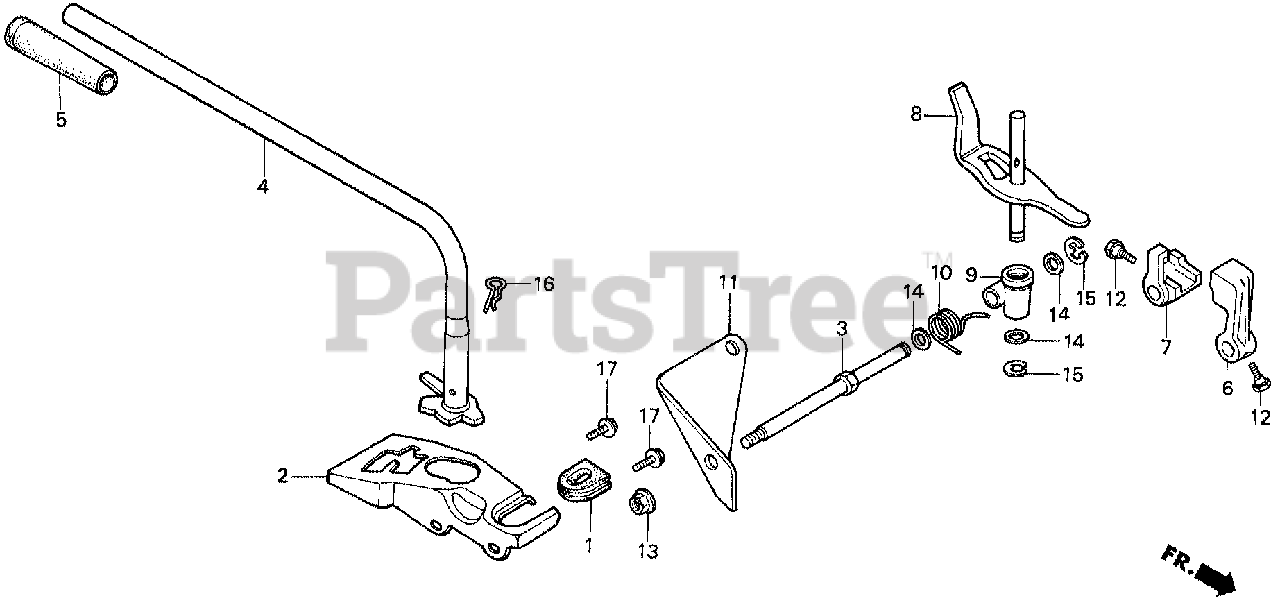

CHANGE LEVER Parts Diagram

  • Title

1

Honda 19905-ZA8-701

SEE PART DETAILS - PRI; GROMMET, WIRE

$4.99

$

Usually ships in 3-6 days

0

1

Honda 19905-865-000

SEE PART DETAILS - SUP; GROMMET, WIRE

$

$

Currently unavailable

2

Honda 21311-723-750

COVER, CHANGE

$

$

Not available

3

Honda 22552-723-000

BOLT, HOLDER

$29.99

$

Usually ships in 3-6 days

0

4

Honda 24410-723-750

LEVER, CHANGE

$

$

Not available

5

Honda 24411-719-000

GRIP, CHANGE LEVER

$11.99

$

Usually ships in 3-6 days

0

6

Honda 24431-723-000

ARM A, CHANGE

$

$

Not available

7

Honda 24441-723-750

ARM B, CHANGE

$

$

Not available

8

Honda 24450-723-000

LEVER, SELECT

$

$

Not available

9

Honda 24461-723-000

HOLDER, SELECT LEVER

$

$

Not available

10

Honda 24466-723-000

SPRING, CHANGE LEVER RETURN

$5.17

$

In Stock, only 1 left!

0

11

Honda 74165-723-750

BRACKET, REVERSE STOP

$

$

Not available

12

Honda 90021-700-010

SCREW, FORK SETTING

$2.99

$

In Stock, Qty 5

0

13

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM)

$1.99

$

Usually ships in 3-6 days

0

14

Honda 90472-723-000

WASHER, PLAIN (12MM)

$1.99

$

Usually ships in 3-6 days

0

15

Honda 90653-723-000

E-RING (10MM)

$1.99

$

In Stock, only 2 left!

0

16

Honda 94252-12000

PIN, LOCK (12MM)

$1.99

$

Usually ships in 3-6 days

0

17

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Not available

17

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 19

0
