FR500 A (FR500) - Honda Tiller, Made in Japan (SN: FR500-1000001 - FR500-9999999) CHANGE GEAR Parts Diagram

Tiller, Made in Japan

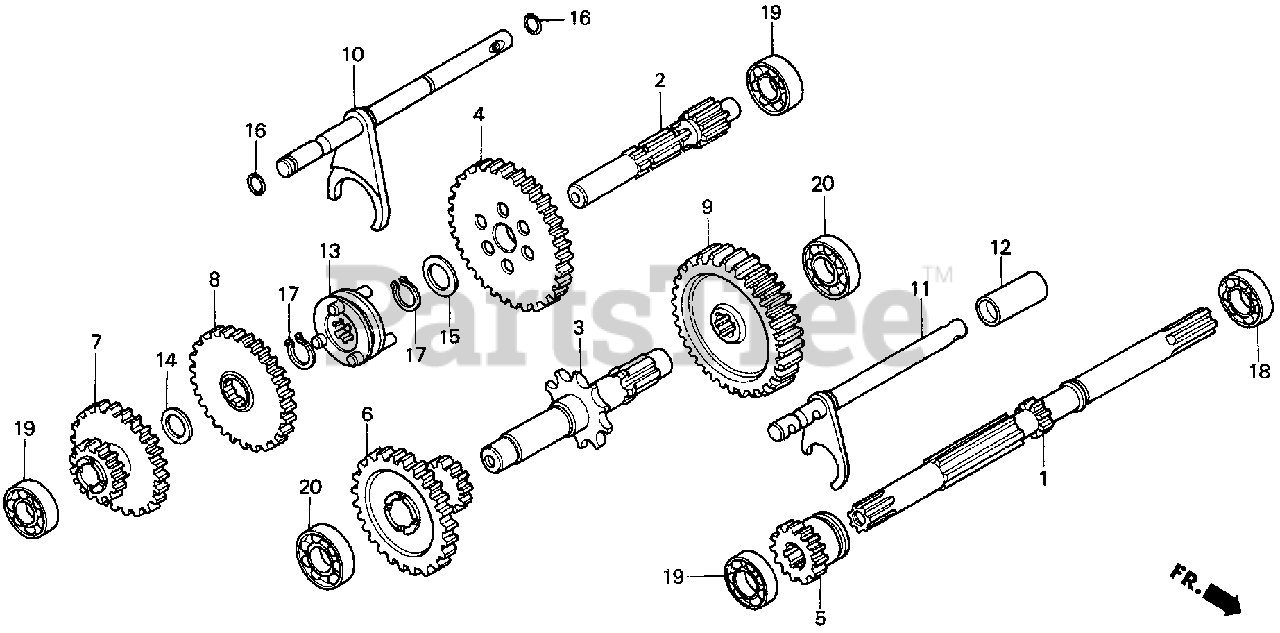

CHANGE GEAR Parts Diagram

  • Title

1

Honda 23111-723-750

SHAFT, INPUT

$

$

Not available

2

Honda 23221-723-750

COUNTERSHAFT

$

$

Not available

3

Honda 23251-723-000

SHAFT, FINAL

$

$

Not available

4

Honda 23411-723-750

GEAR, COUNTERSHAFT FIRST (56T) (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 23451-723-750

GEAR, CHANGE (22T)

$

$

Not available

6

Honda 23461-723-750

GEAR, REVERSE IDLE (23T-49T) (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 23471-723-750

GEAR, FIRST IDLE (45T-23T) (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 23481-723-750

GEAR, REDUCTION DRIVEN (48T) (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 23581-723-000

GEAR, FINAL

$

$

Not available

10

Honda 24110-723-750

COUNTERSHAFT, FORK (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 24120-723-750

SHAFT, INPUT FORK (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 24135-723-750

COLLAR, INPUT FORK SHAFT

$

$

Not available

13

Honda 24281-723-750

SHIFTER, COUNTERSHAFT

$

$

Not available

14

Honda 90412-187-000

WASHER, THRUST (15MM)

$2.99

$

Usually ships in 3-6 days

0

15

Honda 90452-155-000

WASHER (18.2X26X1)

$

$

Not available

16

Honda 91302-GE0-000

O-RING (8.8X1.9)

$5.49

$

In Stock, only 2 left!

0

17

Honda 94511-18000

CIRCLIP (OUTER) (18MM) (NOT AVAILABLE)

$

$

Currently unavailable

18

Honda 96100-60030-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6003)

$13.99

$

Usually ships in 3-6 days

0

19

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202)

$13.99

$

In Stock, Qty 6

0

20

Honda 96100-62030-00

BEARING, RADIAL BALL (6203)

$12.99

$

Usually ships in 3-6 days

0
