FR31BV - Exmark Front Runner Front Mount Mower, 31hp Briggs & Stratton (SN: 790000 - 849999) (2009) Fuel Group Parts Diagram

Front Runner Front Mount Mower, 31hp Briggs & Stratton

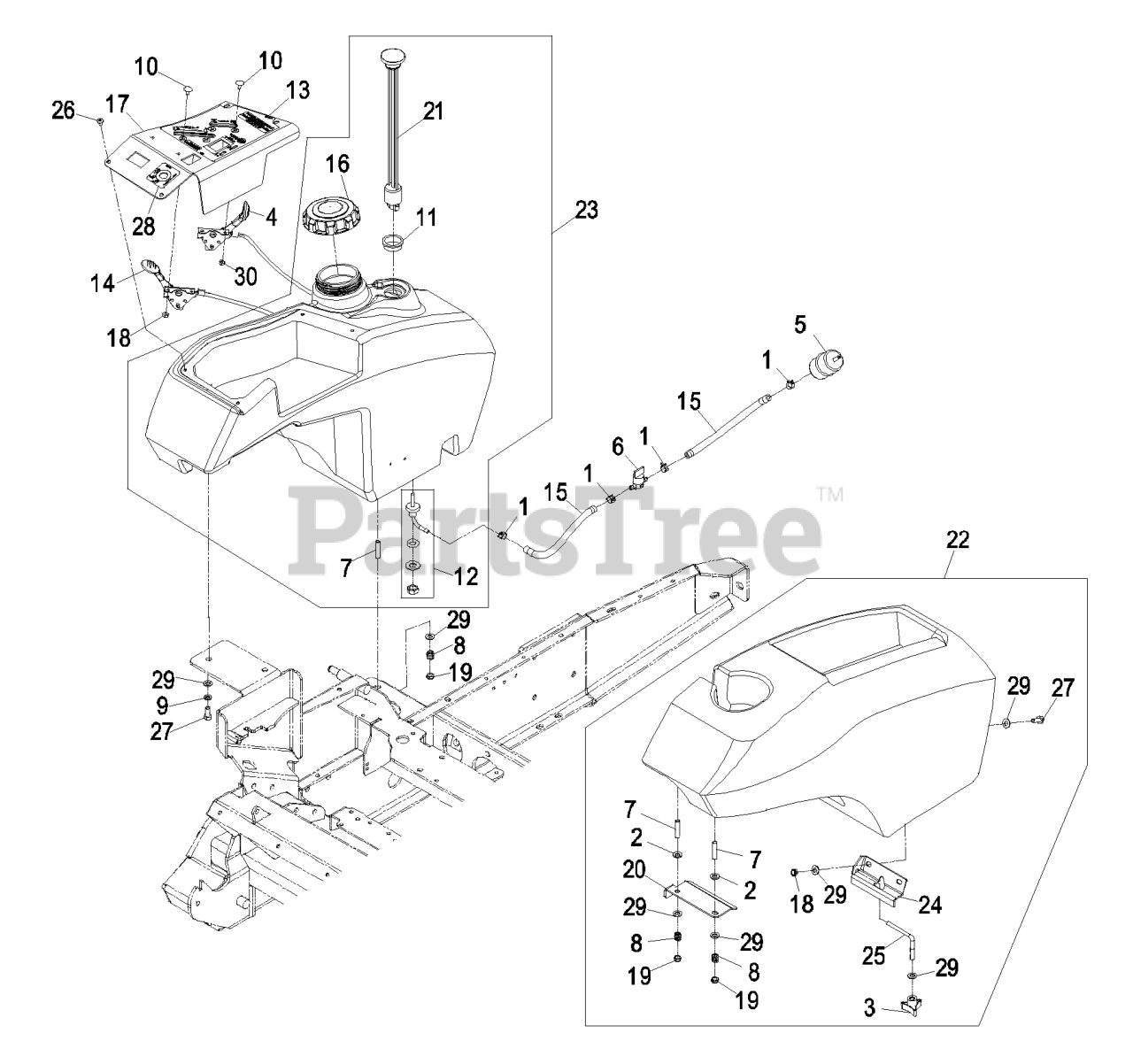

Fuel Group Parts Diagram

  • Title

1

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 8

0

2

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

3

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

4

Exmark 109-7416

CONTROL,CHOKE

$

$

Not available

5

Kohler Part No. 2405010 Fuel Filter

Note: Refer to Engine Owner's Manual (Fuel Filter Must be 15 Micron or smaller).

$

$

Not available

Briggs Part No. 695327 Fuel Filter

$

$

Not available

6

Exmark 1-603770

VALVE-FUEL

$7.99

$

In Stock, Qty 14

0

7

Exmark 1-633023

STUD

Note: Use Pro-Lock, Retaining Type (P/N 1-840023, .5ml tube) on stud threads, item #7 going into the tank.

$6.49

$

Usually ships in 3-6 days

0

8

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

Usually ships in 3-6 days

0

9

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

10

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

11

Exmark 95-8972

CONTACT ORDER SERVICES

$11.99

$

In Stock, only 1 left!

0

12

Exmark 103-2605

FITTING-FUEL, BULKHEAD

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on fuel fitting, item #11.

$35.99

$

In Stock, only 3 left!

0

Exmark 103-2784

O-RING,BULKHEAD FITTING

$13.99

$

In Stock, only 3 left!

0

13

Exmark 109-7413

DECAL,CONTROL FMZ A/C

$

$

Not available

14

Exmark 109-7415

CONTROL,THROTTLE

$

$

Not available

15

Exmark 109-0303

HOSE-FUEL

$6.49

$

Usually ships in 3-6 days

0

16

Exmark 109-0346

CAP-FUEL, GAS

Note: (Gas)

$21.99

$

In Stock, only 2 left!

0

17

Exmark 109-4714

ASM,CONTROL PANEL FMZ A/C

$

$

Not available

18

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

19

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

20

Exmark 109-1202

HOOK,FENDER (PLATED)

$15.99

$

Usually ships in 3-6 days

0

21

Exmark 109-1213

Gauge, Fuel

$

$

Currently unavailable

22

Exmark 109-1226

ASM,FENDER FMZ

$

$

Not available

23

Exmark 109-3627

DISCONTINUED

$

$

Not available

24

Exmark 109-2572

BRACKET,FENDER

$

$

Not available

25

Exmark 109-2652

BOLT,FENDER

$

$

Not available

26

Exmark 109-2661

SCREW-PPH

Note: Snug fit only on slotted holes, Do Not Overtighten, tank must be able to expand.

$1.49

$

In Stock, Qty 11

0

27

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Exmark 109-2358

DECAL,IGNITION

$15.99

$

Usually ships in 3-6 days

0

29

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
