FR27KC - Exmark Front Runner Front Mount Mower, 27hp Kohler (SN: 790000 - 849999) (2009) Motion Control Group Parts Diagram

Front Runner Front Mount Mower, 27hp Kohler

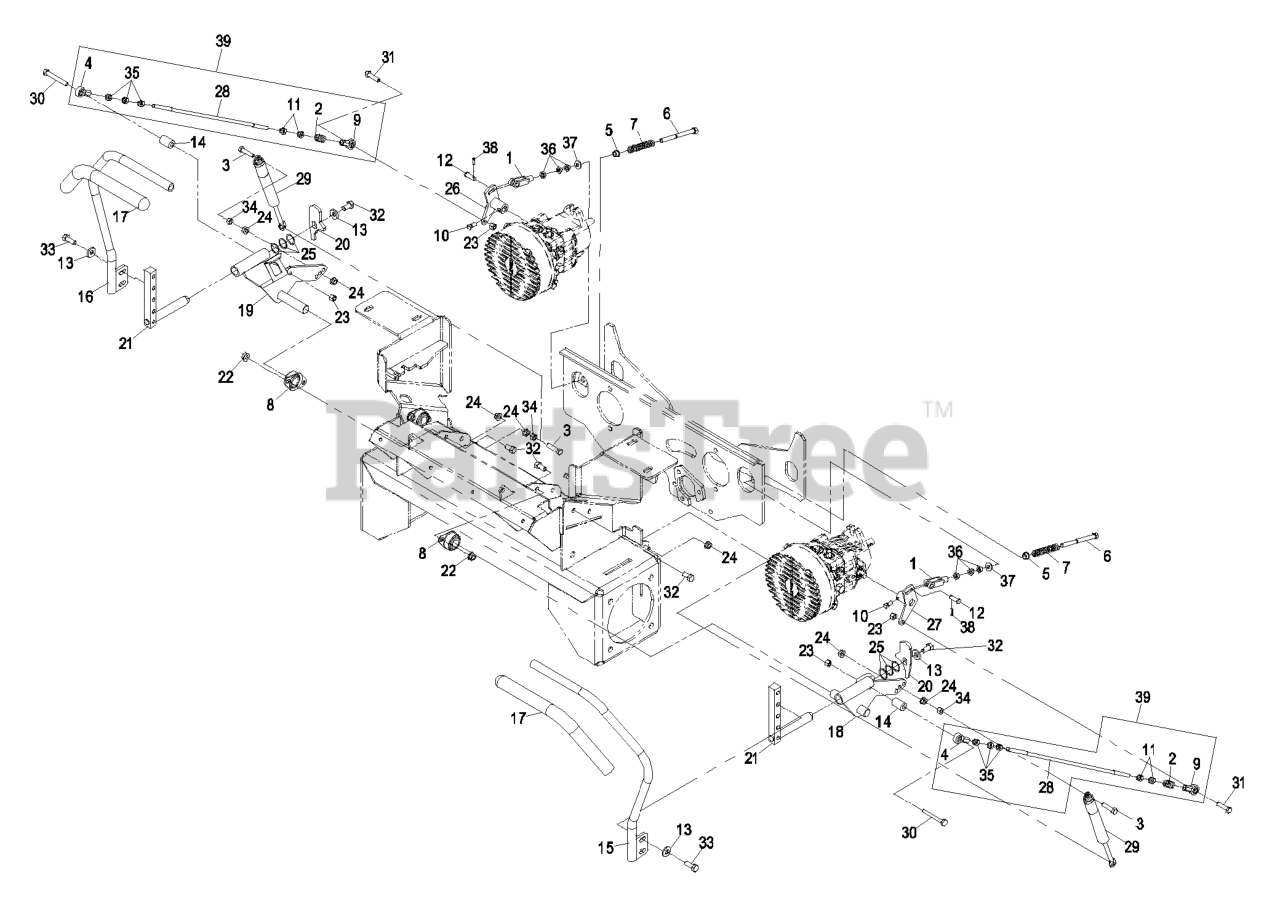

Motion Control Group Parts Diagram

  • Title

1

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

2

Exmark 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

3

Exmark 1-403180

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

4

Exmark 1-543017

BALLJOINT-RH

$20.99

$

In Stock, only 4 left!

0

5

Exmark 1-603735

BUSHING-FLANGED

$6.49

$

In Stock, only 4 left!

0

6

Exmark 1-603737

BOLT-RETURN, NEUTRAL

$9.49

$

In Stock, only 2 left!

0

7

Exmark 1-603807

SPRING-RETURN, NEUTRAL

$3.49

$

In Stock, Qty 17

0

8

Exmark 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

9

Exmark 1-633152

BALLJOINT-LH

Note: (LH)

$20.99

$

In Stock, only 3 left!

0

10

Exmark 1-803022

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on screw, item #10 & screw, item #32 going into control shaft weldment item #21.

$2.99

$

In Stock, Qty 20+

0

11

Exmark 1-804524

NUT

Note: (LH)

$2.99

$

In Stock, only 2 left!

0

12

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

13

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

14

Exmark 103-1361

SPACER-HYDRO CONTROL, LH

$7.99

$

Usually ships in 3-6 days

0

15

Exmark 103-3457

ASM,LH LEVER/GRIP

Note: (LH)

$86.99

$

In Stock, only 2 left!

0

16

Exmark 103-3458

ASM.RH LEVER/GRIP

Note: (RH)

$86.99

$

In Stock, only 2 left!

0

17

Exmark 103-3456

GRIP,CONTROL LEVER

$15.99

$

In Stock, Qty 7

0

18

Exmark 109-3623

WLD,LH FMZ MOTION CTRL (P

Note: (LH)

$164.99

$

Usually ships in 3-6 days

0

19

Exmark 109-3622

WLD,RH FMZ MOTION CTRL(PL

Note: (RH)

$164.99

$

In Stock, only 1 left!

0

20

Exmark 103-8262

TAB,FMZ MOTION CNTRL (PLA

$16.99

$

Usually ships in 3-6 days

0

21

Exmark 109-3618

WLD,FR CONTROL SHAFT(PLTD

$

$

Not available

22

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

23

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

24

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

25

Exmark 106-5335

119-4164
(Superseded to 119-4164)

$3.49

$

In Stock, only 3 left!

0

26

Exmark 103-8286-03

WLD,PR PUMP CTRL RH

Note: (RH)

$

$

Not available

27

Exmark 103-8285-03

WLD,PR PUMP CTRL LH

Note: (LH)

$

$

Not available

28

Exmark 103-8300

LINK,TRACKING ROD FMZ (PL

$35.99

$

Usually ships in 3-6 days

0

29

Exmark 109-2339

DAMPER-CONTROL, MOTION

$76.99

$

In Stock, only 3 left!

0

30

Exmark 322-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

31

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

32

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

33

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

34

Exmark 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

35

Exmark 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

36

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

37

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

38

Exmark 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

39

Exmark 109-2582

ASM,FMZ PR TRACKING ROD

$

$

Not available
