FR27KC - Exmark Front Runner Front Mount Mower, 27hp Kohler (SN: 790000 - 849999) (2009) Engine Group 31HP Parts Diagram

Front Runner Front Mount Mower, 27hp Kohler

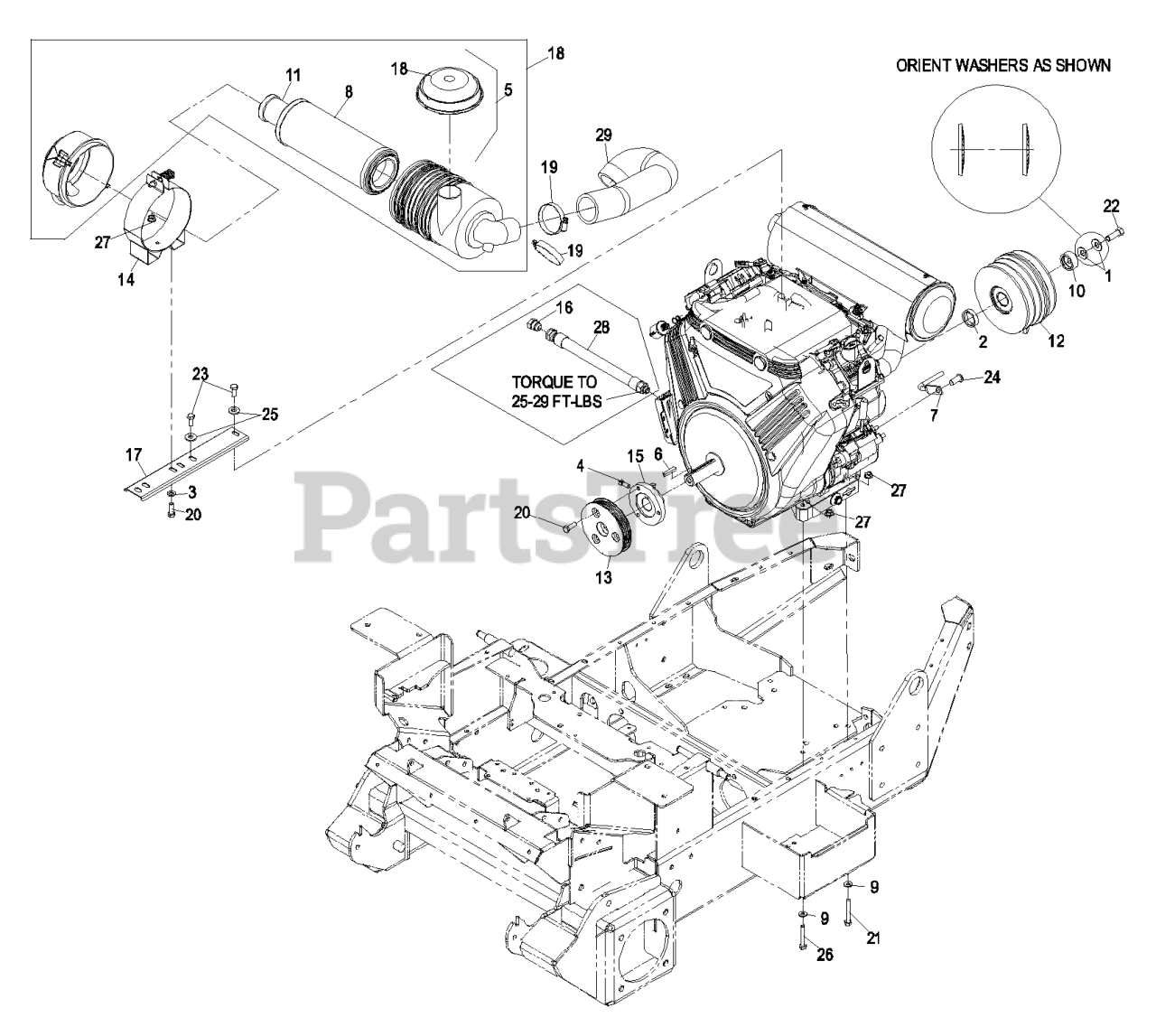

Engine Group 31HP Parts Diagram

  • Title

1

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

2

Exmark 109-6874

SPACER,CLUTCH

$17.99

$

Usually ships in 3-6 days

0

3

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Exmark 1-803050

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on screws, item #4, #20, #22 & #24

$2.99

$

In Stock, Qty 18

0

5

Exmark 100-2436

HOOD-CLEANER, 2" AIR INTA

$69.99

$

Usually ships in 3-6 days

0

6

Exmark 13-2840

KEY-SQUARE

$1.99

$

In Stock, Qty 5

0

7

Exmark 109-5584

ANCHOR,CLUTCH

$28.99

$

Usually ships in 3-6 days

0

8

Exmark 103-1327

FILTER-AIR

$34.99

$

In Stock, Qty 16

0

9

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 3 left!

0

10

Exmark 103-0152

KEEPER-CLUTCH

$12.99

$

In Stock, only 1 left!

0

11

Exmark 103-1326

FILTER-AIR, SAFETY

$40.99

$

In Stock, Qty 20+

0

12

Exmark 109-6627

CLUTCH KIT

$900.99

$

Usually ships in 3-6 days

0

13

Exmark 103-6774

SHEAVE, 5K 4.63

$

$

Not available

14

Exmark 103-1058

BRACKET-FILTER, AIR

$110.99

$

Usually ships in 3-6 days

0

15

Exmark 109-5823

HUB,ADAPTER

$

$

Not available

16

Exmark 109-1012

PLUG

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$8.49

$

Usually ships in 3-6 days

0

17

Exmark 109-5583-03

BRACKET,AIR CLEANER

$

$

Not available

18

Exmark 103-5178

FILTER-AIR

$319.99

$

In Stock, only 1 left!

0

19

Exmark 2412-42

CLAMP-HOSE

$10.99

$

Usually ships in 3-6 days

0

20

Exmark 322-5

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on screws, item #4, #20, #22 & #24

$0.99

$

In Stock, Qty 20+

0

21

Exmark 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

22

Exmark 3212-5

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on screws, item #4, #20, #22 & #24

$4.99

$

Usually ships in 3-6 days

0

23

Exmark 48-7710

Screw, Hh M8-1.25 X 20mm

$

$

Not available

24

Exmark 3274-105

SCREW-HSBH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on screws, item #4, #20, #22 & #24

$15.99

$

Usually ships in 3-6 days

0

25

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

26

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

28

Exmark 109-4324

ASM,HOSE OIL DRAIN BVG W/
(Superseded to 116-5329)

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$

$

Not available

29

Exmark 109-5585

HOSE,INTAKE

$201.99

$

Usually ships in 3-6 days

0
