Exmark FR27KC - Exmark Front Runner Front Mount Mower, 27hp Kohler (SN: 790000 - 849999) (2009) Electrical Group Parts Lookup with Diagrams

1

Exmark 1-303335

TIE-PLASTIC

(Superseded to 3290-378) 

Note: (Large)

$0.99

$

In Stock, Qty 8

2

Exmark 1-513374

METER-HOUR

(Superseded to 120-2244) 

$69.99

$

In Stock, only 1 left!

3

Exmark 109-7608

ASM,POSITIVE BATTERY CABL

Note: Includes items 4 & 26.

$44.99

$

Usually ships in 3-6 days

4

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

5

Exmark 1-543792

WINGNUT

$6.49

$

In Stock, Qty 14

6

Exmark 1-603727

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

7

Exmark 1-633110

SWITCH-BRAKE

$22.99

$

In Stock, Qty 5

8

Exmark 1-633111

SWITCH

$21.99

$

In Stock, Qty 20+

9

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, Qty 12

10

Exmark 1-633307

WIRE-GROUND

$45.99

$

In Stock, only 3 left!

11

Exmark 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, Qty 20+

12

Exmark 107-9277-03

STRAP-HOLDDOWN, BATTERY

$6.49

$

In Stock, Qty 7

13

Exmark 1-643275

RELAY

Note: (27HP)

$23.99

$

In Stock, Qty 20+

Exmark 1-643275

RELAY

Note: (31HP)

$23.99

$

In Stock, Qty 20+

14

Exmark 109-2589

HARNESS,AUX HYDRAULICS

$105.99

$

Usually ships in 3-6 days

15

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 7

16

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

17

Exmark 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

18

Exmark 109-4813

SWITCH,ROCKER (ON)-NONE-(

$59.99

$

In Stock, only 1 left!

19

Exmark 109-4736

ASM,SWITCH W/NUT

$42.99

$

In Stock, Qty 20+

20

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.49

$

In Stock, Qty 20+

21

Exmark 103-5218

MODULE-DELAY, SEAT

$45.99

$

In Stock, only 4 left!

22

Exmark 103-5221

SWITCH-PTO

$58.99

$

In Stock, Qty 20+

23

Exmark 103-9268

HARNESS,WIRING FMZ KOHLER

Note: (27HP) Use dielectric grease on all wiring harness connectors.

$344.99

$

Usually ships in 3-6 days

Exmark 109-5593

HARNESS,FMZ BV

Note: (31HP)

$602.99

$

Usually ships in 3-6 days

24

Exmark 109-0742

CONTACTOR, REVERSING POLA

$402.99

$

Usually ships in 3-6 days

25

Exmark 109-2398

CIRCUIT BREAKER,40A

$39.99

$

Usually ships in 3-6 days

26

Exmark 109-2407

INSULATOR-BATTERY

$5.49

$

In Stock, only 3 left!

27

Exmark 109-2571

COVER,CIRCUIT BREAKER

$

Not available 

28

Exmark 240-3

GROMMET-RUBBER

$18.99

$

In Stock, only 1 left!

29

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

30

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

31

Exmark 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 20+

32

Exmark 3229-2

SCREW-CARR

$3.49

$

In Stock, Qty 13

33

Exmark 3250-27

SCREW-PPH

$0.99

$

In Stock, Qty 9

34

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

35

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

36

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

37

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

38

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

39

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

40

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

41

Exmark 32149-8

NUT-KEPS

$1.49

$

Usually ships in 3-6 days

42

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

43

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

Note: (27HP)

$6.49

$

In Stock, Qty 13

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

Note: (31HP)

$6.49

$

In Stock, Qty 13

44

Exmark 109355

FUSE-BLADE, 15 AMP

$3.99

$

Usually ships in 3-6 days

45

Exmark 1-816003

FUSE-BLADE TYPE, 30 AMP

Note: (31HP) Not shown.

$5.99

$

Usually ships in 3-6 days

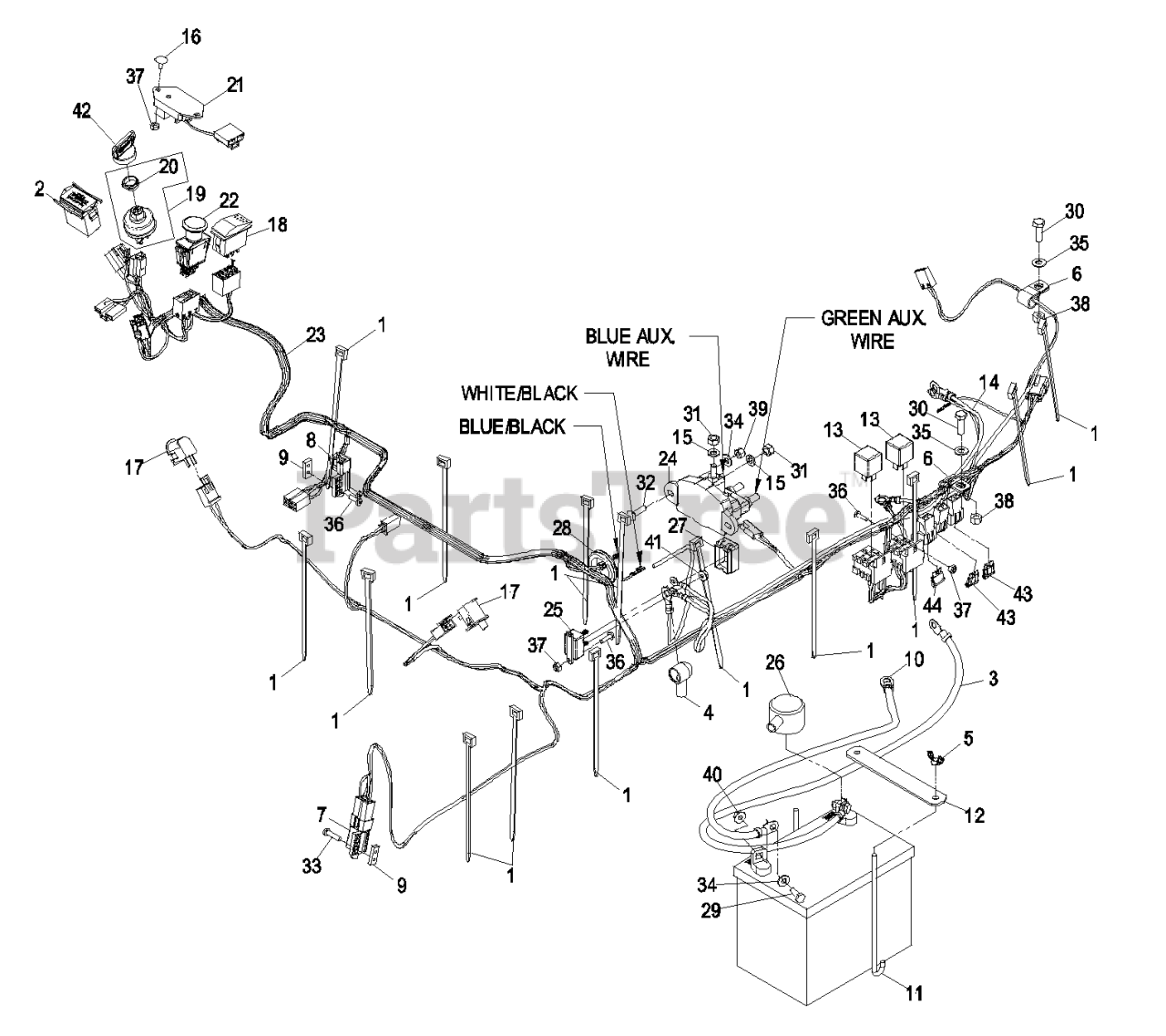

FR27KC - Exmark Front Runner Front Mount Mower, 27hp Kohler (SN: 790000 - 849999) (2009) Electrical Group Parts Diagram

Electrical Group Parts Diagram
