FR25KD - Exmark Front Runner Front Mount Mower, 25hp Kubota Diesel (SN: 720000 - 789999) (2008) Rear Frame Group Parts Diagram

Front Runner Front Mount Mower, 25hp Kubota Diesel

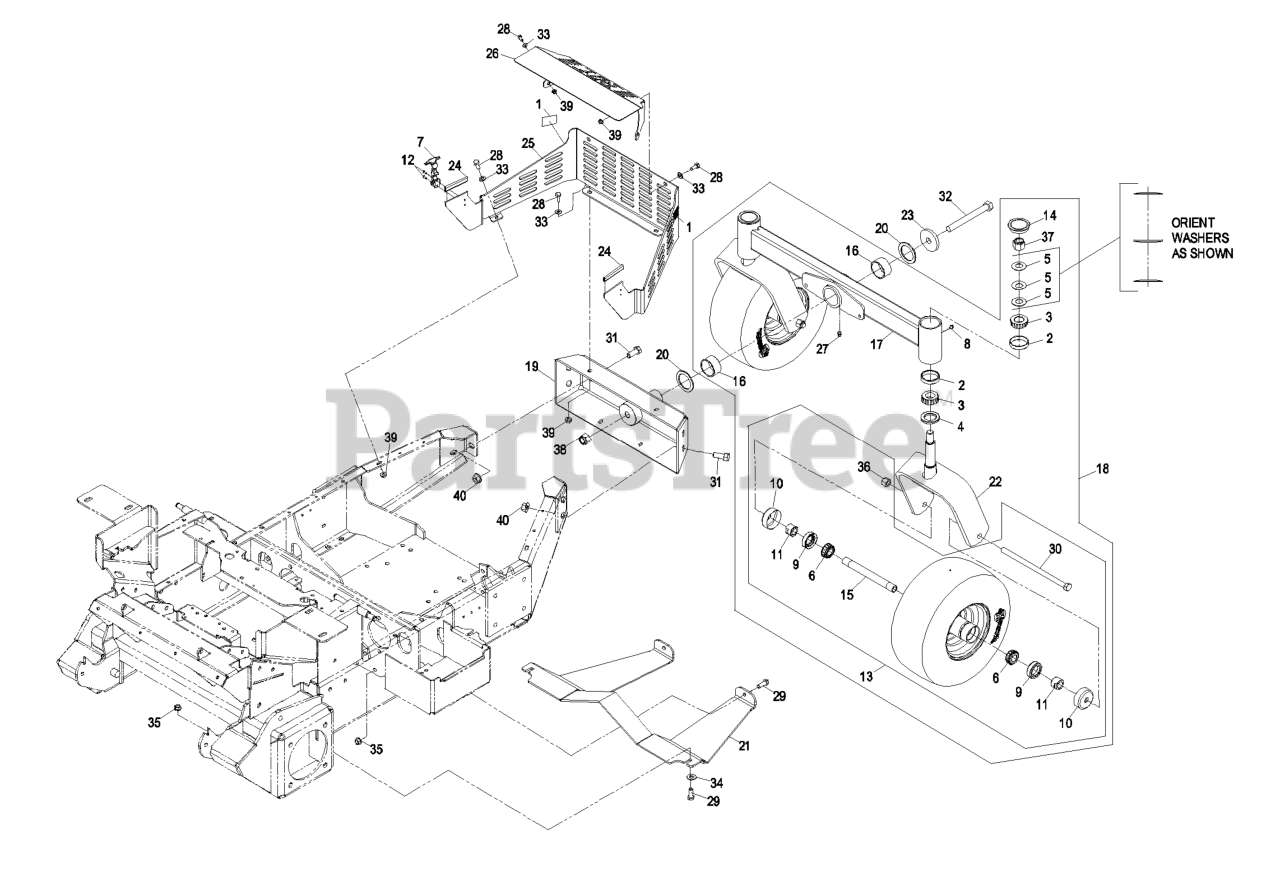

Rear Frame Group Parts Diagram

  • Title

1

Exmark 1-513746

103-2076
(Superseded to 103-2076)

$6.49

$

In Stock, only 1 left!

0

2

Exmark 1-543508

CUP-BEARING

$7.99

$

In Stock, Qty 18

0

3

Exmark 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

0

4

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 20+

0

5

Exmark 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

6

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$21.99

$

In Stock, Qty 12

0

7

Exmark 1-643188

LATCH-RUBBER

$21.99

$

In Stock, only 2 left!

0

8

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

9

Exmark 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 6

0

10

Exmark 103-2768

GUARD-SEAL

$3.49

$

In Stock, Qty 20+

0

11

Exmark 103-3051

SPACER-NUT

$9.49

$

In Stock, only 2 left!

0

12

Exmark 923786

3269-24
(Superseded to 3269-24)

$2.99

$

In Stock, Qty 12

0

13

Exmark 103-3799

109-9127
(Superseded to 109-9127)

$341.99

$

In Stock, Qty 8

0

14

Exmark 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0

15

Exmark 103-5156

126-5361
(Superseded to 126-5361)

$19.99

$

In Stock, only 2 left!

0

16

Exmark 103-6825

BEARING,1.75"ID X 2"OD

$36.99

$

Usually ships in 3-6 days

0

17

Exmark 103-7957-03

DISCONTINUED

$

$

Not available

18

Exmark 103-8347

Asm, Dual Rear Wheels

$

$

Currently unavailable

19

Exmark 103-9045-03

DISCONTINUED

$

$

Not available

20

Exmark 103-9051

BEARING,THRUST

$36.99

$

Usually ships in 3-6 days

0

21

Exmark 103-9789-03

DISCONTINUED

$

$

Not available

22

Exmark 103-9868-03

116-8889
(Superseded to 116-8889)

$196.99

$

Usually ships in 3-6 days

0

23

Exmark 103-9974

WASHER (PLATED)

$14.99

$

Usually ships in 3-6 days

0

24

Exmark 105-7699

STRIP-SEAL

$9.49

$

In Stock, Qty 20+

0

25

Exmark 109-2769

ASM,FMZ REAR GUARD

$

$

Not available

26

Exmark 109-1312-03

WLD,MUFFLER COVER FMZ DIE

$

$

Not available

27

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

28

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

30

Exmark 325-39

SCREW-HH

$18.99

$

In Stock, Qty 18

0

31

Exmark 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

32

Exmark 327-24

SCREW-HH

$9.49

$

In Stock, only 3 left!

0

33

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

34

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

35

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

36

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

37

Exmark 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 13

0

38

Exmark 3296-53

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

39

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

40

Exmark 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

0
