FR25KD - Exmark Front Runner Front Mount Mower, 25hp Kubota Diesel (SN: 720000 - 789999) (2008) PTO Drive Group Parts Diagram

Front Runner Front Mount Mower, 25hp Kubota Diesel

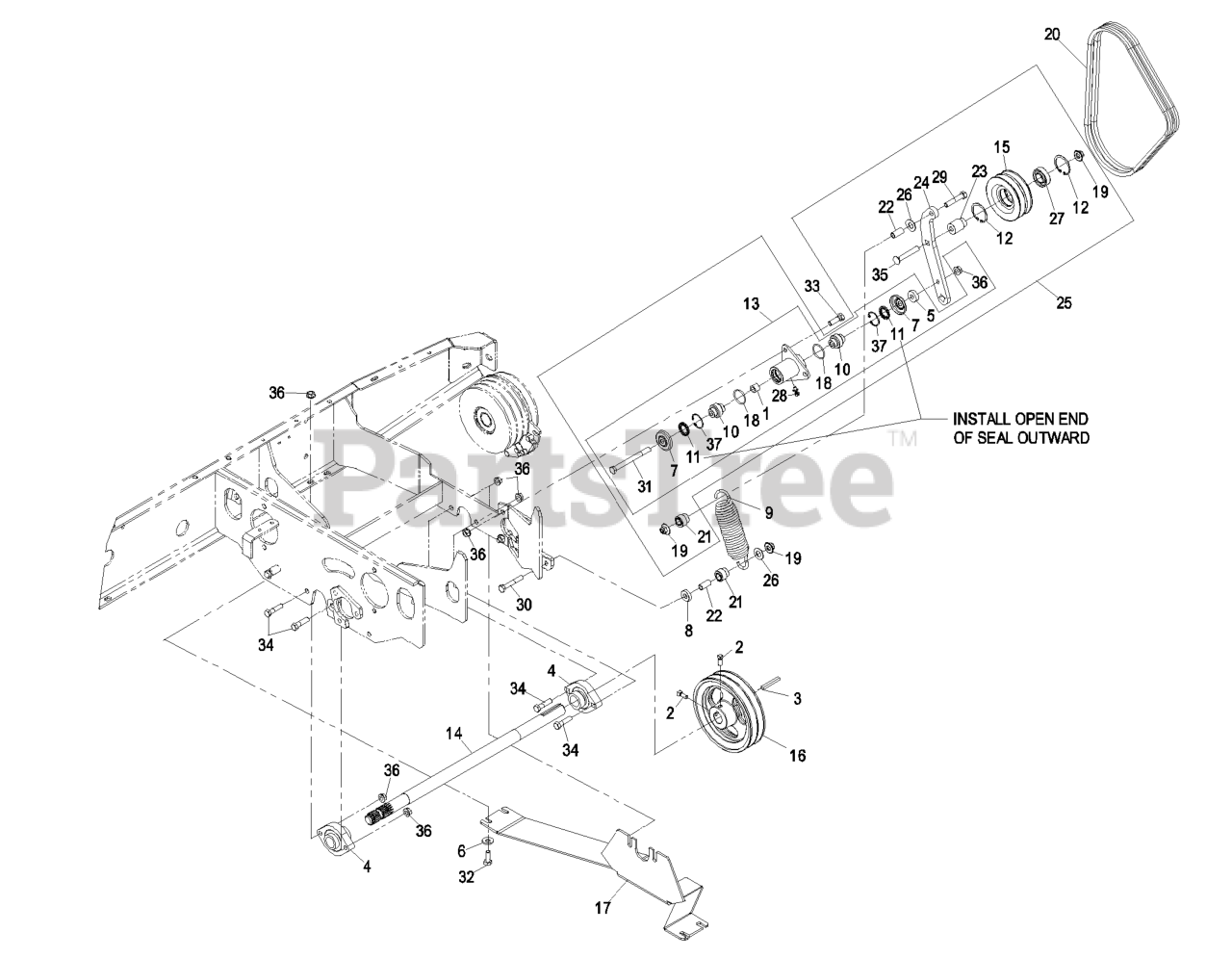

PTO Drive Group Parts Diagram

  • Title

1

Exmark 1-413088

BUSHING-LEVER, LIFT

$10.99

$

In Stock, only 1 left!

0

2

Exmark 1-803050

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on setscrew, item #2.

$2.99

$

In Stock, Qty 8

0

3

Exmark 5-1336

KEY-SQUARE

$10.99

$

In Stock, Qty 5

0

4

Exmark 92-8799

BEARING-FLANGE

$134.99

$

In Stock, Qty 5

0

5

Exmark 94-4685

SPACER-IDLER

$25.99

$

Usually ships in 3-6 days

0

6

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

7

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

8

Exmark 103-3186

SPACER-BRACKET, GUIDE

$22.99

$

In Stock, only 1 left!

0

9

Exmark 103-3330

116-6317
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 7

0

10

Exmark 103-3504

BEARING-SPHERICAL

$25.99

$

In Stock, Qty 20+

0

11

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 19

0

12

Exmark 32151-13

RING-RETAINING

$5.49

$

Usually ships in 3-6 days

0

13

Exmark 103-6409

KIT,'04 XP PUMP IDLER

$169.99

$

Usually ships in 3-6 days

0

14

Exmark 103-6779-03

SHAFT, LINE

$

$

Not available

15

Exmark 103-6813

DISCONTINUED

$

$

Not available

16

Exmark 103-6814

SHEAVE, 2-A

$217.99

$

Usually ships in 3-6 days

0

17

Exmark 103-8366-03

GUARD, LINEDRIVE

$

$

Not available

18

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

19

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

20

Exmark 109-7588

BELTS,MATCHED A-COG 39.36
(Superseded to 109-7588-SL)

$66.99

$

In Stock, only 1 left!

0

21

Exmark 109-8752

BUSHING,PLASTIC

$25.99

$

In Stock, Qty 5

0

22

Exmark 109-8753

SPACER

$15.99

$

In Stock, only 3 left!

0

23

Exmark 109-8833

SPACER,IDLER BEARING

$

$

Not available

24

Exmark 109-8838

Arm, Idler

$

$

Currently unavailable

25

Exmark 109-8876

ASM,LINEDRIVE IDLER

$

$

Not available

26

Exmark 112-9771

WASHER-TEFLON

$2.99

$

In Stock, Qty 18

0

27

Exmark 251-347

BEARING-BALL

$10.99

$

In Stock, only 4 left!

0

28

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

29

Exmark 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

31

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2 1/4

$6.99

$

In Stock, Qty 14

0

32

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

33

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

34

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

35

Exmark 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 20+

0

36

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

37

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0
