FR25KD - Exmark Front Runner Front Mount Mower, 25hp Kubota Diesel (SN: 720000 - 789999) (2008) Cooling Group Parts Diagram

Front Runner Front Mount Mower, 25hp Kubota Diesel

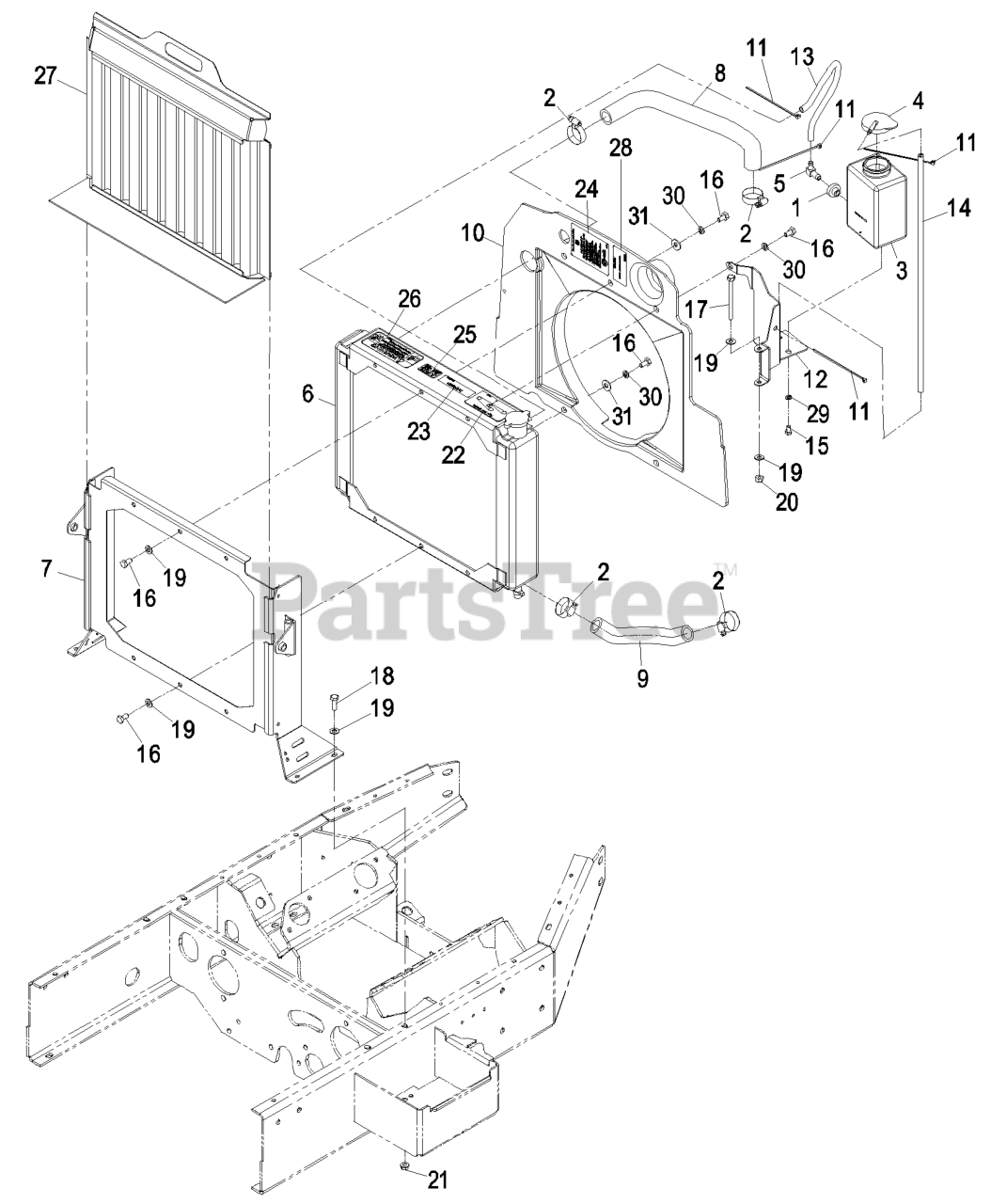

Cooling Group Parts Diagram

  • Title
1

Exmark 1-513645

46-6560
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

2

Exmark 1-633989

2412-34
(Superseded to 2412-34)

$2.49

$

In Stock, only 3 left!

0

3

Exmark 1-643163

TANK-OVERFLOW

$96.99

$

Usually ships in 3-6 days

0

4

Exmark 1-643164

CAP-TANK, OVERFLOW

$19.99

$

In Stock, only 3 left!

0

5

Exmark 1-643259

46-6550
(Superseded to 46-6550)

$41.99

$

Usually ships in 3-6 days

0

6

Exmark 109-2768

ASM,FMZ RADIATOR

$

$

Not available

Exmark 1-643161

CAP-RADIATOR

$84.99

$

In Stock, only 3 left!

0

7

Exmark 103-8332-03

WLD,RADIATOR SUPPORT

$

$

Not available

8

Exmark 103-8824

HOSE,UPPER RADIATOR

$

$

Not available

9

Exmark 103-8825

HOSE,LOWER RADIATOR

$

$

Not available

10

Exmark 109-3497

ASM,FR25KD SHROUD W/DCLS

$

$

Not available

11

Exmark 1-303287

TIE-CABLE

Note: (Small)

$1.49

$

Usually ships in 3-6 days

0

12

Exmark 109-2209-03

DISCONTINUED

$

$

Not available

13

Exmark 109-2221

DISCONTINUED

$

$

Not available

14

$12.99

$

In Stock, only 1 left!

0

15

Exmark 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

16

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

17

Exmark 322-23

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

18

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

20

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

$1.49

$

In Stock, Qty 20+

0

22

Exmark 1-643339

DECAL-ROUTING, BELT

$

$

Not available

23

Exmark 98-5954

DECAL-COVER, MISSING

$9.49

$

In Stock, Qty 7

0

24

Exmark 103-0223

DECAL,SHELL COOLANT

$

$

Not available

25

Exmark 103-2076

DECAL-CAUTION

$6.49

$

In Stock, only 1 left!

0

26

Exmark 103-5881

DECAL-DEVICES, ROTATING

$6.49

$

In Stock, Qty 10

0

27

Exmark 109-3147

ASM,RADIATOR SCREEN

$

$

Not available

28

Exmark 110-3842

DECAL-ANTIFREEZE

$9.49

$

Usually ships in 3-6 days

0

29

Exmark 325-33

SCREW-HH

$14.99

$

In Stock, only 4 left!

0

30

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

31

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
