FR25KD - Exmark Front Runner Front Mount Mower, 25hp Kubota Diesel (SN: 670000 - 719999) (2007) Park Brake Group Parts Diagram

Front Runner Front Mount Mower, 25hp Kubota Diesel

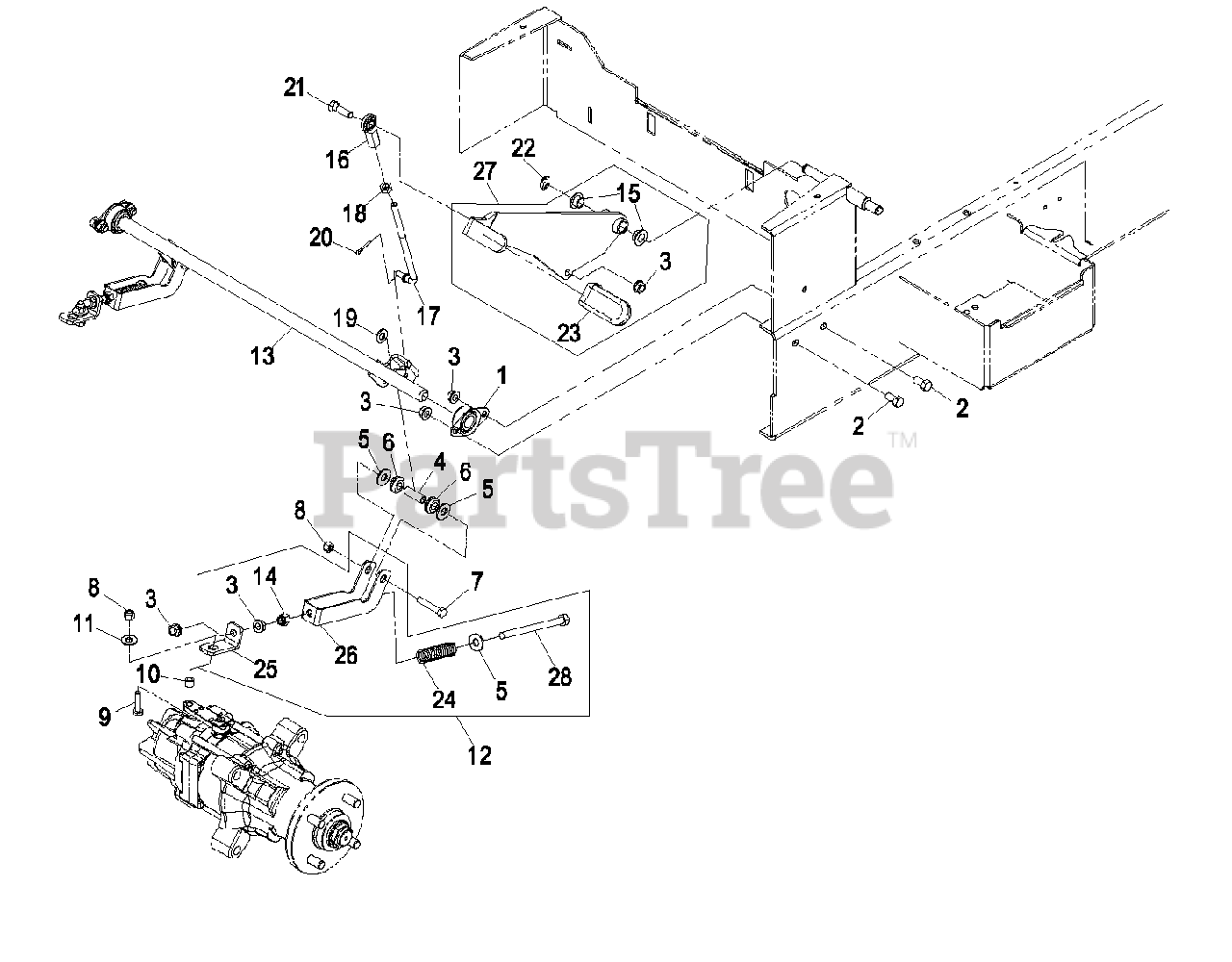

Park Brake Group Parts Diagram

  • Title

1

Exmark 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

2

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

3

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

4

Exmark 109-0262

SPACER,.438 OD X 1.312 (P

$

$

Not available

5

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

6

Exmark 1-633630

GROMMET

$5.99

$

In Stock, Qty 8

0

7

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

8

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

10

Exmark 103-0126

BUSHING, LOCATOR

$6.99

$

In Stock, Qty 11

0

11

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Exmark 109-0132

ASM,BRAKE LINKAGE

$

$

Not available

13

Exmark 103-8625-03

WLD,BRAKE CROSS SHAFT

$

$

Not available

14

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

15

Exmark 1-513140

BEARING-CONTROL

$6.49

$

In Stock, Qty 8

0

16

Exmark 103-0608

JOINT-BALL, END

$33.99

$

In Stock, Qty 5

0

17

Exmark 103-4399

ROD,LINKAGE BRAKE (PLATED

$

$

Not available

18

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

19

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

20

Exmark 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

21

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

22

Exmark 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 8

0

23

Exmark 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 4 left!

0

24

Exmark 103-4388

SPRING,COMPRESSION

$6.99

$

Usually ships in 3-6 days

0

25

Exmark 109-0130

LINK,BRAKE (PLATED)

$

$

Not available

26

Exmark 109-0131

CLEVIS,BRAKE (PLATED)

$26.99

$

Usually ships in 3-6 days

0

27

Exmark 109-1192

ASM,BRAKE LEVER W/GRIP

$132.99

$

Usually ships in 3-6 days

0

28

Exmark 323-39

SCREW-HH

$11.99

$

In Stock, Qty 20+

0
