FR25KD - Exmark Front Runner Front Mount Mower, 25hp Kubota Diesel (SN: 600000 - 669999) (2006) Engine Group Parts Diagram

Front Runner Front Mount Mower, 25hp Kubota Diesel

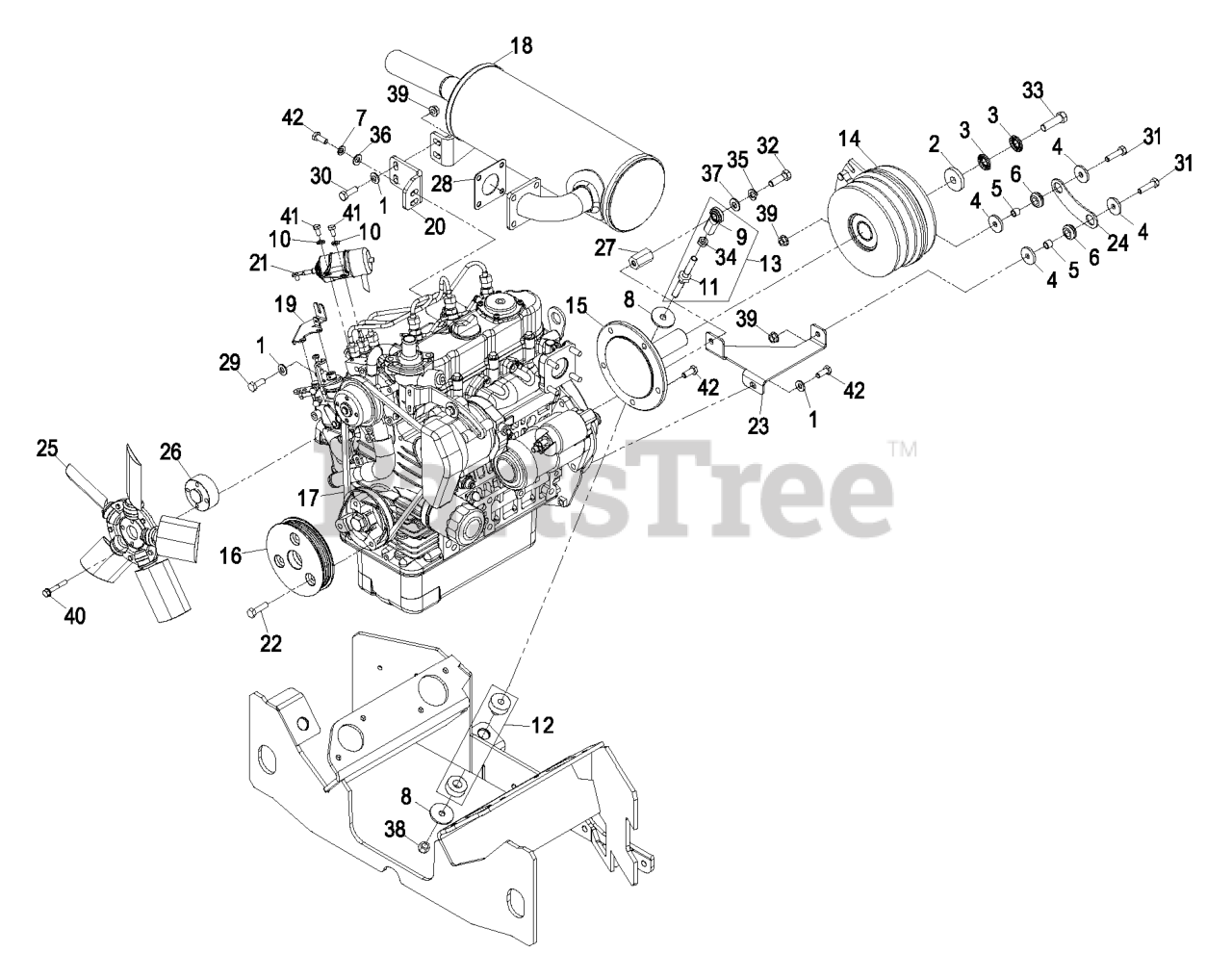

Engine Group Parts Diagram

  • Title

1

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

2

Exmark 1-543610

WASHER-CLUTCH

$6.49

$

In Stock, Qty 5

0

3

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

4

Exmark 1-613235

WASHER

$1.99

$

In Stock, Qty 5

0

5

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 15

0

6

Exmark 1-633630

GROMMET

$5.99

$

In Stock, Qty 8

0

7

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

8

Exmark 93-6099

WASHER

$3.99

$

Usually ships in 3-6 days

0

9

Exmark 103-0608

JOINT-BALL, END

$33.99

$

In Stock, Qty 5

0

10

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

0

11

Exmark 103-3567

LINK,REAR A-T AXIAL

$25.99

$

Usually ships in 3-6 days

0

12

Exmark 103-3568

ISOLATOR-LINK

$53.99

$

Usually ships in 3-6 days

0

13

Exmark 103-3745

BALL JOINT LINK ASM

$103.99

$

Usually ships in 3-6 days

0

14

Exmark 103-0083

109-6627
(Superseded to 109-6627)

$900.99

$

Usually ships in 3-6 days

0

15

Exmark 103-6773

SHAFT, FLYWHEEL

$

$

Not available

16

Exmark 103-6774

SHEAVE, 5K 4.63

$

$

Not available

17

Exmark 109-2901

BELT,KUBOTA 902 ALT

$108.99

$

In Stock, only 4 left!

0

18

Exmark 109-2855

ASM,KUBOTA MUFFLER

Note: Includes item #28.

$

$

Not available

19

Exmark 108-5922

BRACKET-SUPPORT, THROTTLE

$20.99

$

Usually ships in 3-6 days

0

20

Exmark 109-0787-03

116-5342-03
(Superseded to 116-5342-03)

$26.99

$

Usually ships in 3-6 days

0

21

Exmark 109-1211

SOLENOID,FUEL

$704.99

$

Usually ships in 3-6 days

0

22

Exmark 33114-030

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on screws, item #22, #33, #40 & #42

$1.49

$

Usually ships in 3-6 days

0

23

Exmark 109-2361-03

BRACKET, CLUTCH ANCHOR

$41.99

$

Usually ships in 3-6 days

0

24

Exmark 109-2362

LINK, CLUTCH

$

$

Not available

25

Exmark 109-2587

DISCONTINUED

$

$

Not available

26

Exmark 109-2675

SPACER-FAN, 21MM

$95.99

$

Usually ships in 3-6 days

0

27

Exmark 109-2763

SPACER, A-T

$

$

Not available

28

Exmark 109-2783

99-8343
(Superseded to 99-8343)

$16.99

$

In Stock, only 3 left!

0

29

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

31

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

32

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

33

Exmark 3212-6

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on screws, item #22, #33, #40 & #42

$2.49

$

In Stock, only 1 left!

0

34

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

35

Exmark 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 17

0

36

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

37

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

38

Exmark 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

39

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

40

Exmark 33103-040

SCREW-HHF

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on screws, item #22, #33, #40 & #42

$9.49

$

Usually ships in 3-6 days

0

41

Exmark 33113-012

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

42

Exmark 33114-020

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on screws, item #22, #33, #40 & #42

$0.99

$

In Stock, Qty 13

0

Exmark 15853-3243

Engine Oil Filter

Note: Kubota Replacement Part; (Refer to Engine Owner's Manual)

$

$

Currently unavailable
