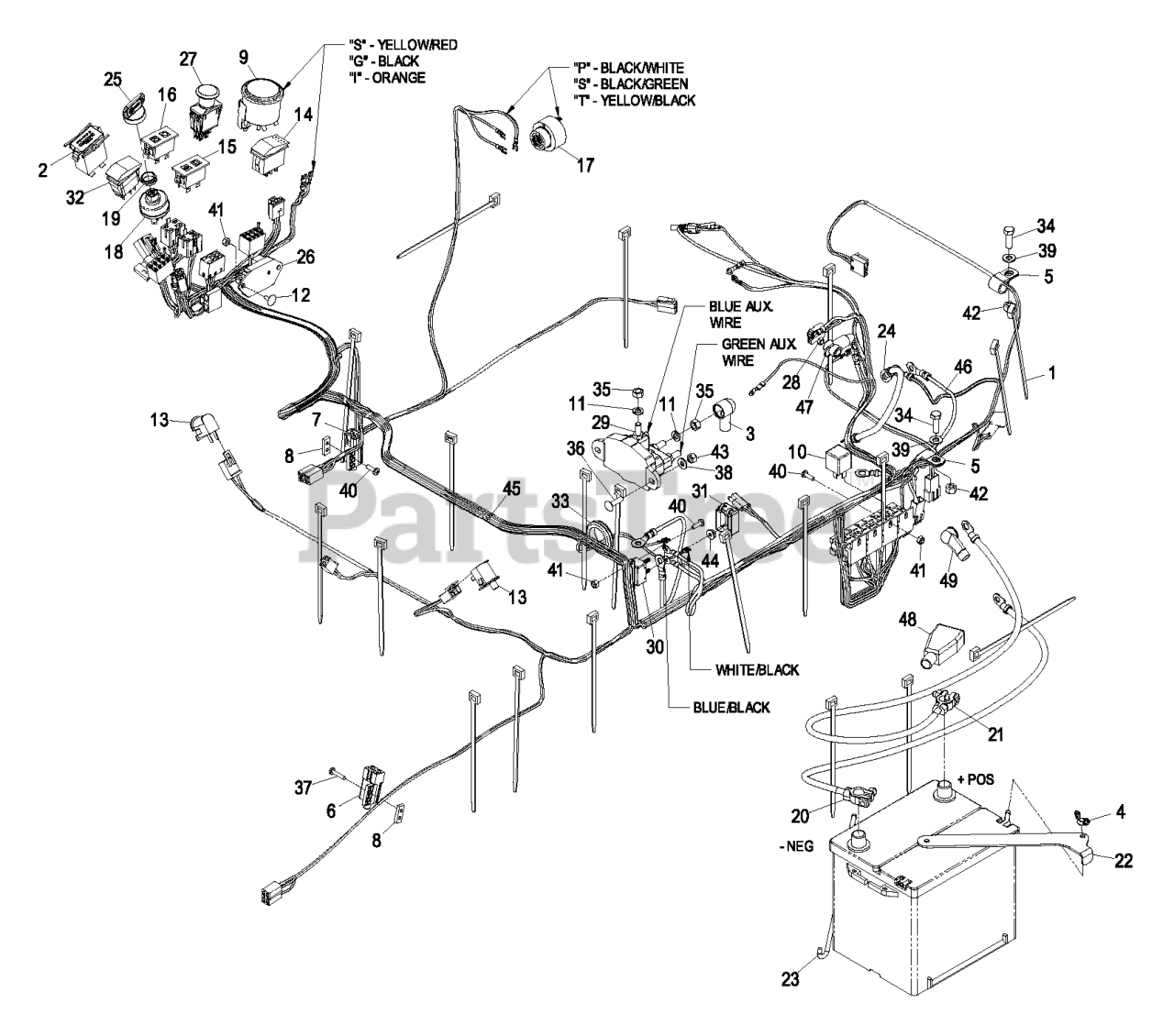

FR25KD - Exmark Front Runner Front Mount Mower, 25hp Kubota Diesel (SN: 600000 - 669999) (2006) Electrical Group Parts Diagram

Front Runner Front Mount Mower, 25hp Kubota Diesel

Electrical Group Parts Diagram

  • Title

1

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

2

Exmark 1-513374

METER-HOUR
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

3

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0

4

Exmark 1-543792

WINGNUT

$6.49

$

In Stock, Qty 15

0

5

Exmark 1-603727

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

0

6

Exmark 1-633110

SWITCH-BRAKE

$22.99

$

In Stock, only 2 left!

0

7

Exmark 1-633111

SWITCH

$21.99

$

In Stock, Qty 19

0

8

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

9

Exmark 1-643021

GAUGE-TEMPERATURE

$142.99

$

In Stock, only 2 left!

0

10

Exmark 1-643275

RELAY

$23.99

$

In Stock, Qty 6

0

11

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

12

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

13

Exmark 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 10

0

14

Exmark 94-1742

109-4813
(Superseded to 109-4813)

$52.99

$

In Stock, only 1 left!

0

15

Exmark 100-8070

LAMP-WARNING

$41.99

$

Usually ships in 3-6 days

0

16

Exmark 100-8071

LAMP-WARNING

$41.99

$

Usually ships in 3-6 days

0

17

Exmark 103-0205

ALARM-TONE, DUAL

$67.99

$

In Stock, only 2 left!

0

18

Exmark 103-0206

109-4736
(Superseded to 109-4736)

$42.99

$

In Stock, Qty 15

0

19

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.49

$

In Stock, Qty 6

0

20

Exmark 103-1159

CABLE-BATTERY NEGATIVE

$26.99

$

Usually ships in 3-6 days

0

21

Exmark 109-3075

CABLE-BATTERY POSITIVE

$

$

Not available

22

Exmark 109-1898-03

STRAP, BATTERY

$

$

Not available

23

Exmark 103-1312

BOLT-HOLDDOWN

$6.49

$

Usually ships in 3-6 days

0

24

Exmark 103-1349

CABLE-ENGINE NEGATIVE

$18.99

$

Usually ships in 3-6 days

0

25

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 7

0

26

Exmark 103-5218

MODULE-DELAY, SEAT

$45.99

$

In Stock, Qty 5

0

27

Exmark 103-5221

SWITCH-PTO

$58.99

$

In Stock, Qty 20+

0

28

Exmark 33013-00

NUT-HEX

$2.49

$

In Stock, only 3 left!

0

29

Exmark 109-0742

CONTACTOR, REVERSING POLA

$362.99

$

Usually ships in 3-6 days

0

30

Exmark 109-2398

CIRCUIT BREAKER,40A

$35.99

$

Usually ships in 3-6 days

0

31

Exmark 109-2571

COVER,CIRCUIT BREAKER

$

$

Not available

32

Exmark 110-0811

SWITCH-ROCKER

$70.99

$

Usually ships in 3-6 days

0

33

Exmark 240-3

GROMMET-RUBBER

$18.99

$

In Stock, only 1 left!

0

34

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

35

Exmark 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

36

Exmark 3229-2

SCREW-CARR

$3.49

$

Usually ships in 3-6 days

0

37

Exmark 3250-27

SCREW-PPH

$0.99

$

In Stock, Qty 9

0

38

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

39

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

40

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

41

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

42

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

43

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

44

Exmark 32149-8

NUT-KEPS

$1.49

$

Usually ships in 3-6 days

0

45

Exmark 109-1212

HARNESS,WIRING FMZ KD902

$878.99

$

Usually ships in 3-6 days

0

46

Exmark 109-2589

HARNESS,AUX HYDRAULICS

$94.99

$

Usually ships in 3-6 days

0

47

Exmark 1-643178

CAP-INSULATOR, RED

$5.49

$

Usually ships in 3-6 days

0

48

Exmark 103-1340

INSULATOR-TERMINAL, BATTE

$5.49

$

Usually ships in 3-6 days

0

49

Exmark 103-1420

INSULATOR-STARTER

$6.99

$

Usually ships in 3-6 days

0
