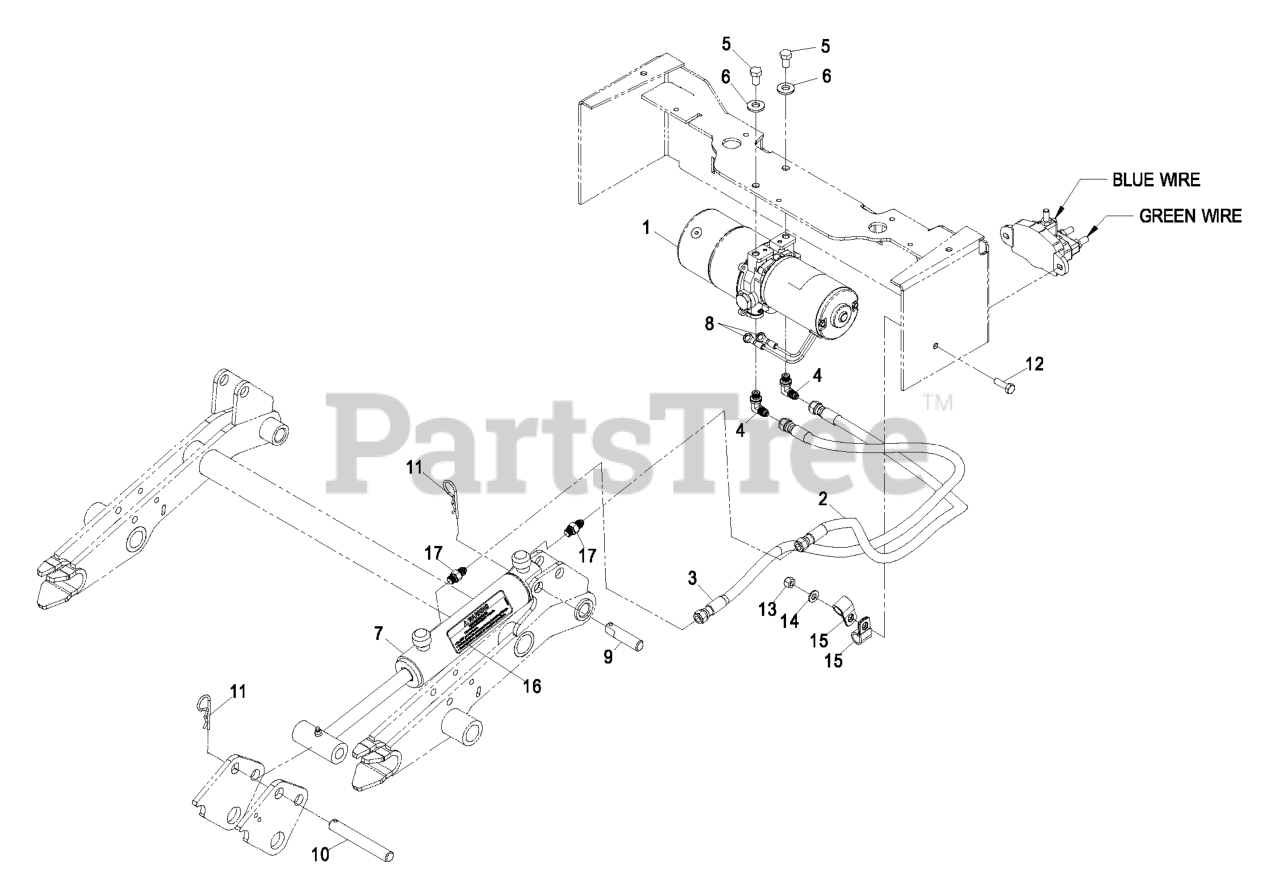

FR23KC - Exmark Front Runner Front Mount Mower, 23hp Kohler (SN: 600000 - 669999) (2006) Auxiliary Hydraulic Group Parts Diagram

Front Runner Front Mount Mower, 23hp Kohler

Auxiliary Hydraulic Group Parts Diagram

  • Title

1

Exmark 109-2853

109-3930
(Superseded to 109-3930)

Note: Includes item #8.

$

$

Not available

2

Exmark 109-2015

ASM,HYDRAULIC HOSE -4

$

$

Not available

3

Exmark 109-2016

ASM,HYDRAULIC HOSE -4

$

$

Not available

4

Exmark 109-0760

ADAPTER,90 DEG

$26.99

$

In Stock, Qty 6

0

Exmark 109-1284

O-RING,-4 FLARE-O(SERVICE

$

$

Not available

Exmark 1-603923

O-RING

$2.99

$

Usually ships in 3-6 days

0

5

Exmark 323-34

SCREW-HH

$6.49

$

In Stock, only 2 left!

0

6

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

7

Exmark 109-2812

ASM,FMZ HYD CYLINDER

$582.99

$

Usually ships in 3-6 days

0

Exmark 109-2856

KIT,FMZ HYD CYLINDER SEAL

$

$

Not available

8

Exmark 109-2663

TERMINAL,RING 5/16" INSUL

$

$

Not available

9

Exmark 109-1180

PIN,CYLINDER MOUNT RR

$

$

Not available

10

Exmark 109-0045

PIN,CYLINDER MOUNT

$24.99

$

In Stock, only 1 left!

0

11

Exmark 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

12

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Exmark 1-603727

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

0

16

Exmark 109-2377

DECAL,HIGH PRESSURE OIL

$10.99

$

Usually ships in 3-6 days

0

17

Exmark 109-2017

ADAPTER,STRAIGHT ORIFICED

$13.99

$

Usually ships in 3-6 days

0

Exmark 109-1284

O-RING,-4 FLARE-O(SERVICE

$

$

Not available

Exmark 1-603923

O-RING

$2.99

$

Usually ships in 3-6 days

0
