FR 2216 FR (966414801) - Jonsered Rear-Engine Riding Mower (2010-07) MOWER DECK / CUTTING DECK Parts Diagram

Rear-Engine Riding Mower

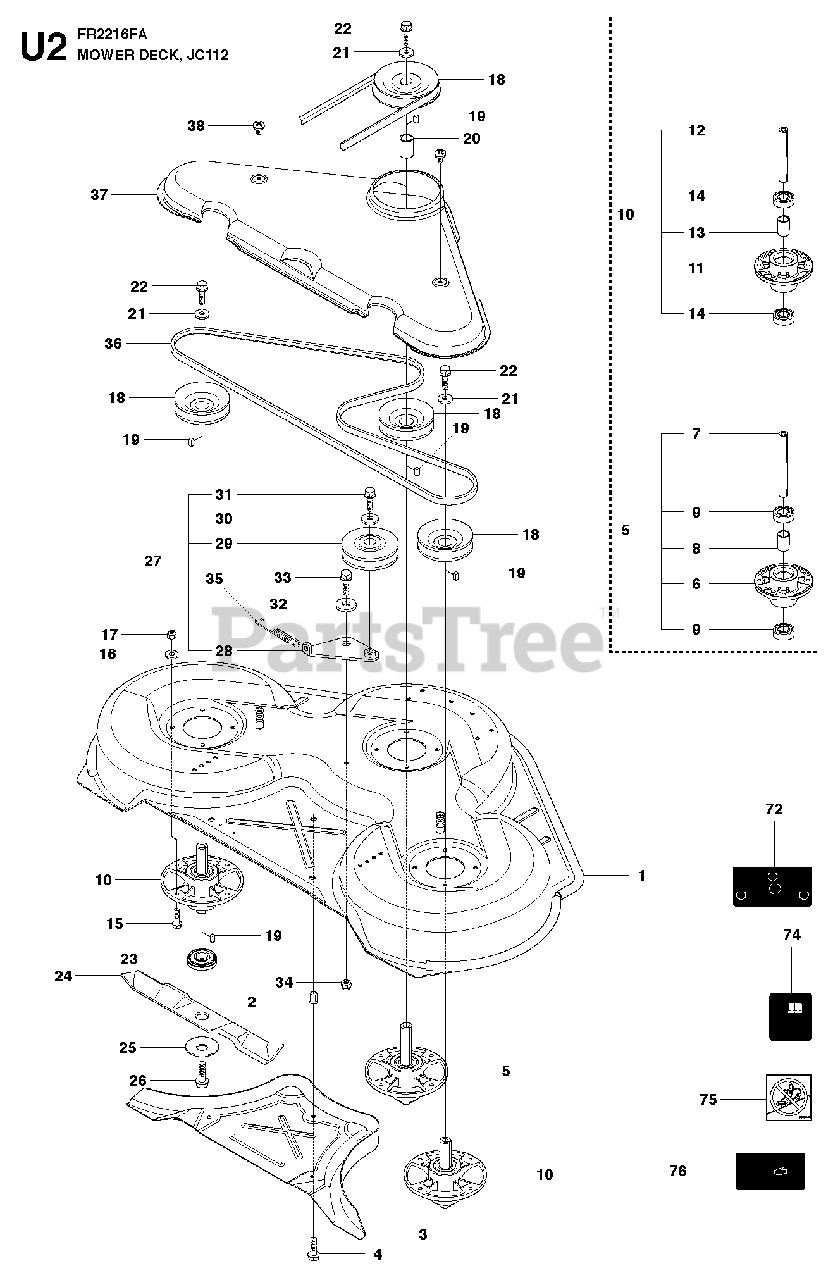

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Jonsered 574209502

No Description Available

$

$

Not available

2

Jonsered 506916201

NUT

$7.49

$

Usually ships in 3-10 days

0

3

Jonsered 544449301

PLUG

$79.99

$

Usually ships in 3-10 days

0

4

Jonsered 506570104

BOLT

$6.49

$

In Stock, only 1 left!

0

5

Jonsered 544065902

RP SPINDLE ASSY
(Superseded to 576384101)

$96.99

$

In Stock, only 1 left!

0

6

Jonsered 544067801

BEARING HOUSING

Note: . 5

$

$

Not available

7

Jonsered 544067901

SHAFT

Note: . 5

$

$

Not available

8

Jonsered 544068001

SPACER

Note: . 5

$

$

Not available

9

Jonsered 738230434

BEARING

Note: . 5

$20.99

$

Usually ships in 3-10 days

0

10

Jonsered 544065901

RP SPINDLE ASSY
(Superseded to 576384102)

$91.99

$

Usually ships in 3-10 days

0

11

Jonsered 544067801

BEARING HOUSING

Note: . 10

$

$

Not available

12

Jonsered 535428702

AXLE

Note: . 10

$56.99

$

Usually ships in 3-10 days

0

13

Jonsered 535428801

SPACER

Note: . 10

$9.49

$

Usually ships in 3-10 days

0

14

Jonsered 738230434

BEARING

Note: . 10

$20.99

$

Usually ships in 3-10 days

0

15

Jonsered 535423801

BOLT

$5.99

$

Usually ships in 3-10 days

0

16

Jonsered 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

17

Jonsered 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

18

Jonsered 506922101

PULLEY

$39.99

$

In Stock, only 1 left!

0

19

Jonsered 506533501

KEY

$6.49

$

Usually ships in 3-10 days

0

20

Jonsered 544068002

SPACER

$11.99

$

In Stock, only 3 left!

0

21

Jonsered 734117441

WASHER

$4.99

$

In Stock, only 2 left!

0

22

Jonsered 544114101

SCREW

$4.99

$

In Stock, Qty 8

0

23

Jonsered 535504202

ADAPTER

$22.99

$

Usually ships in 3-10 days

0

24

Jonsered 544102801

BLADE
(Superseded to 504188101)

$37.99

$

Usually ships in 3-10 days

0

25

Jonsered 506792301

WASHER

$

$

Not available

26

Jonsered 544114101

SCREW

$4.99

$

In Stock, Qty 8

0

27

Jonsered 506540701

BELT TENSIONER ASSY

$

$

Not available

28

Jonsered 506519501

BELT TENSIONING ARM

Note: . 27

$91.99

$

Usually ships in 3-10 days

0

29

Jonsered 506532701

PULLEY

Note: . 27

$45.99

$

In Stock, only 1 left!

0

30

Jonsered 734116441

SPACER

Note: . 27

$4.99

$

Usually ships in 3-10 days

0

72

Jonsered 506789701

DECAL

$

$

Not available

31

Jonsered 506558302

BOLT

Note: . 27

$4.99

$

In Stock, only 1 left!

0

32

Jonsered 506918702

WASHER
(Superseded to 584288601)

$

$

Not available

74

Jonsered 506929001

DECAL

$7.49

$

In Stock, only 1 left!

0

33

Jonsered 725245171

SCREW

$1.49

$

In Stock, Qty 5

0

76

Jonsered 574510001

DECAL

$3.49

$

Usually ships in 3-10 days

0

34

Jonsered 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

35

Jonsered 506533101

SPRING

$11.99

$

Usually ships in 3-10 days

0

36

Jonsered 535411901

BELT
(Superseded to 585034501)

$48.46

$

Usually ships in 3-10 days

0

37

Jonsered 544096202

No Description Available

$

$

Not available

38

Jonsered 544400501

SCREW

$4.99

$

In Stock, only 4 left!

0
