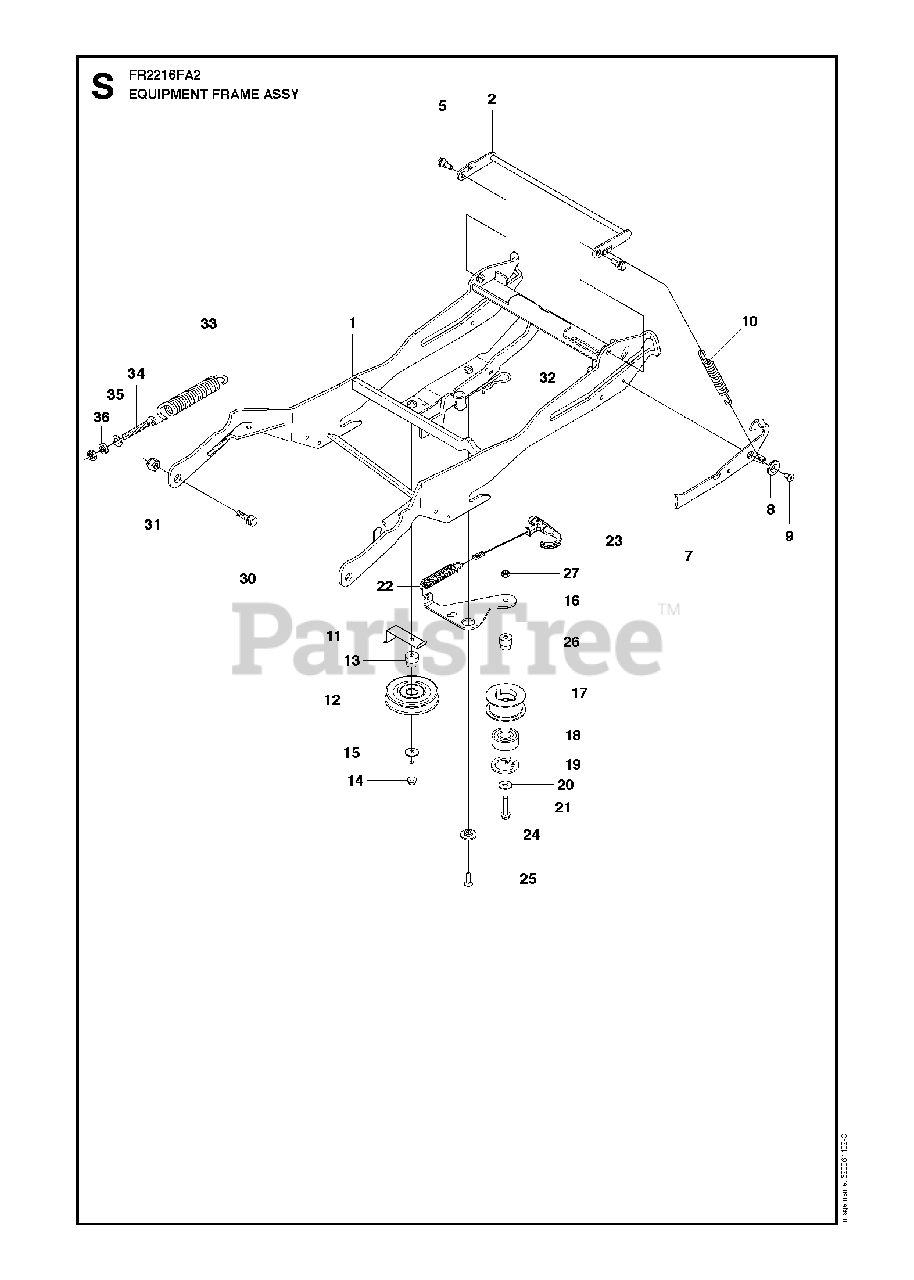

FR 2216 FA2 (966415101) - Jonsered Rear-Engine Riding Mower (2010-03) FRAME Parts Diagram

Rear-Engine Riding Mower

FRAME Parts Diagram

  • Title

1

Jonsered 523064202

No Description Available

$

$

Not available

2

Jonsered 525475901

HOOK

$26.99

$

Usually ships in 3-10 days

0

5

Jonsered 506597401

BOLT

$6.99

$

In Stock, Qty 7

0

7

Jonsered 523116602

LEVER

$13.99

$

Usually ships in 3-10 days

0

8

Jonsered 506918701

SPACER

$6.99

$

Usually ships in 3-10 days

0

9

Jonsered 725644801

SCREW IHCSFM

$4.99

$

Usually ships in 3-10 days

0

10

Jonsered 506535603

SPRING

$5.99

$

Usually ships in 3-10 days

0

11

Jonsered 525486701

BELT GUIDE

$

$

Not available

12

Jonsered 506974801

PULLEY

$56.99

$

Usually ships in 3-10 days

0

13

Jonsered 506826802

BUSHING

$11.99

$

Usually ships in 3-10 days

0

14

Jonsered 725245951

SCREW

$6.49

$

In Stock, only 4 left!

0

15

Jonsered 734116441

SPACER

$4.99

$

Usually ships in 3-10 days

0

16

Jonsered 523083701

No Description Available

$

$

Not available

17

Jonsered 506928901

%PULLEY
(Superseded to 505153901)

$

$

Not available

18

Jonsered 738210404

BALL BEARING 6004-2RS1

$111.99

$

In Stock, Qty 20+

0

19

Jonsered 735313810

RETAINING RING

$6.49

$

In Stock, Qty 12

0

20

Jonsered 734116441

SPACER

$4.99

$

Usually ships in 3-10 days

0

21

Jonsered 725245951

SCREW

$6.49

$

In Stock, only 4 left!

0

22

Jonsered 504622401

SPRING

$9.49

$

Usually ships in 3-10 days

0

23

Jonsered 504622102

HANDLE ASSY

$20.99

$

Usually ships in 3-10 days

0

24

Jonsered 505451701

WASHER
(Superseded to 586496701)

$

$

Not available

25

Jonsered 725645301

SCREW

$5.99

$

Usually ships in 3-10 days

0

26

Jonsered 535484801

BUSHING

$28.99

$

Usually ships in 3-10 days

0

27

Jonsered 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 8

0

30

Jonsered 506895801

BOLT

$10.99

$

Usually ships in 3-10 days

0

31

Jonsered 732252201

NUT

$1.99

$

In Stock, only 2 left!

0

32

Jonsered 506966601

RETAINER

$4.99

$

Usually ships in 3-10 days

0

33

Jonsered 506837601

SPRING

$34.99

$

In Stock, only 1 left!

0

34

Jonsered 506837701

SCREW

$11.99

$

In Stock, only 2 left!

0

35

Jonsered 734117201

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

36

Jonsered 731232051

NUT

$

$

Not available
