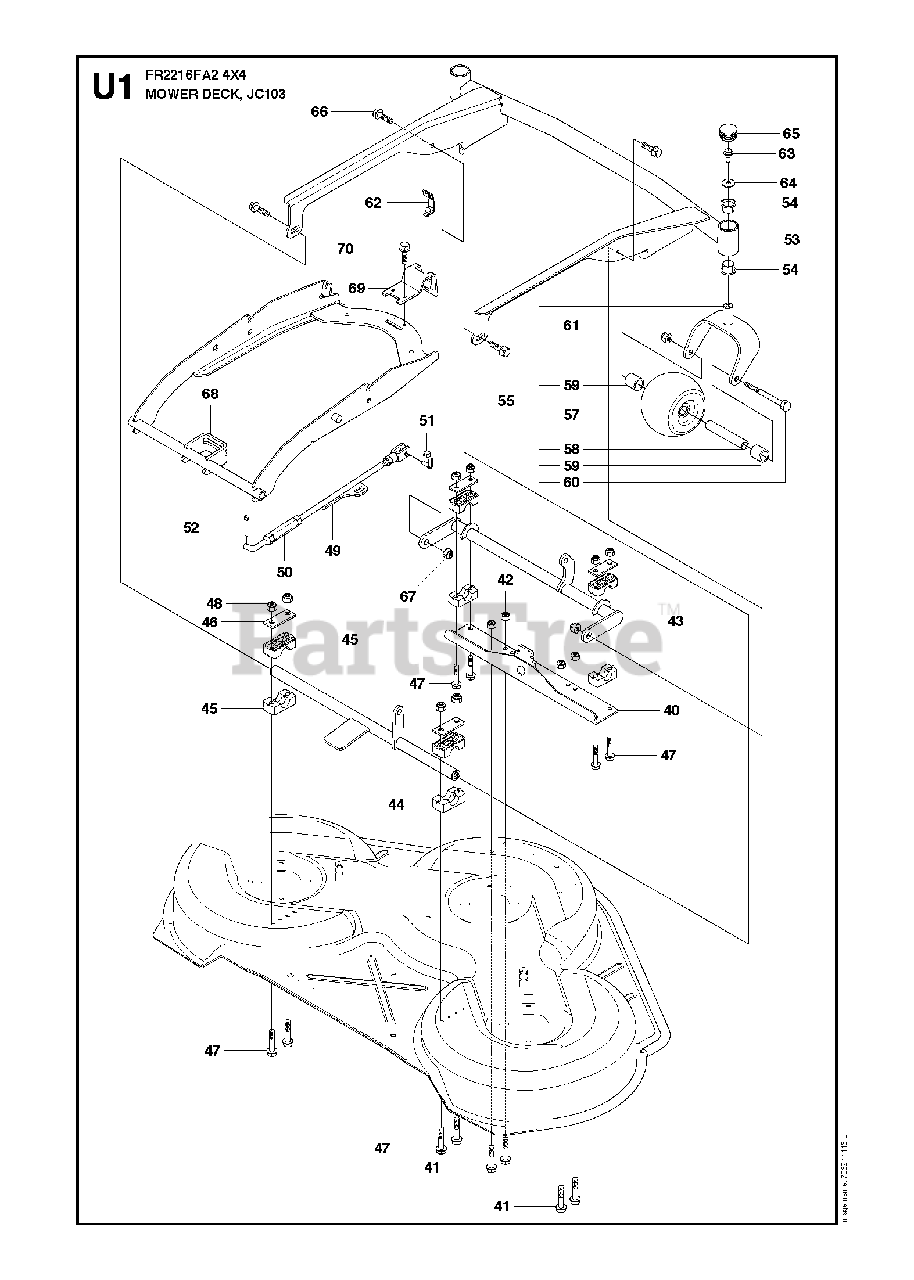

FR 2216 FA2 4x4 (966415201) - Jonsered Rear-Engine Riding Mower (2010-03) 103CM CUTTING DECK Parts Diagram

Rear-Engine Riding Mower

103CM CUTTING DECK Parts Diagram

  • Title

40

Jonsered 523095302

No Description Available

$

$

Not available

41

Jonsered 725245171

SCREW

$1.49

$

In Stock, Qty 5

0

42

Jonsered 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

43

Jonsered 502641806

No Description Available

$

$

Not available

44

Jonsered 523094504

No Description Available

$

$

Not available

45

Jonsered 506869601

BEARING

$

$

Not available

46

Jonsered 506813801

PLATE

$6.99

$

Usually ships in 3-10 days

0

47

Jonsered 725246151

BOLT

$5.99

$

In Stock, only 1 left!

0

48

Jonsered 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

49

Jonsered 523114201

PARALLELL ROD ASSY

$56.99

$

Usually ships in 3-10 days

0

50

Jonsered 502642301

PARALLEL ROD

$

$

Not available

51

Jonsered 506839801

RETAINER
(Superseded to 506839802)

$19.00

$

Usually ships in 3-10 days

0

52

Jonsered 721618301

SPLIT PIN

$

$

Not available

53

Jonsered 523086504

No Description Available

$

$

Not available

54

Jonsered 574561901

BEARING

$6.99

$

In Stock, Qty 7

0

55

Jonsered 574210102

No Description Available

$

$

Not available

57

Jonsered 506963001

DECK ROLLER, FRONT

Note: . 55

$62.99

$

In Stock, Qty 14

0

58

Jonsered 506810802

PIPE

Note: . 55

$9.49

$

In Stock, only 2 left!

0

59

Jonsered 506874102

SPACER

Note: . 55

$6.99

$

Usually ships in 3-10 days

0

60

Jonsered 725251951

No Description Available

Note: . 55

$12.99

$

In Stock, only 1 left!

0

61

Jonsered 732212051

NUT

Note: . 55

$4.49

$

In Stock, only 4 left!

0

62

Jonsered 503894703

CLIP GRAY

$11.99

$

In Stock, Qty 6

0

63

Jonsered 506570104

BOLT

$6.49

$

In Stock, only 1 left!

0

64

Jonsered 734116441

SPACER

$4.99

$

Usually ships in 3-10 days

0

65

Jonsered 574034801

PLUG

$4.99

$

Usually ships in 3-10 days

0

66

Jonsered 506597401

BOLT

$6.99

$

In Stock, only 1 left!

0

67

Jonsered 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

68

Jonsered 523087502

No Description Available

$

$

Not available

69

Jonsered 523114601

LOCK

$11.99

$

Usually ships in 3-10 days

0

70

Jonsered 725236861

SCREW

$2.49

$

Usually ships in 3-10 days

0
