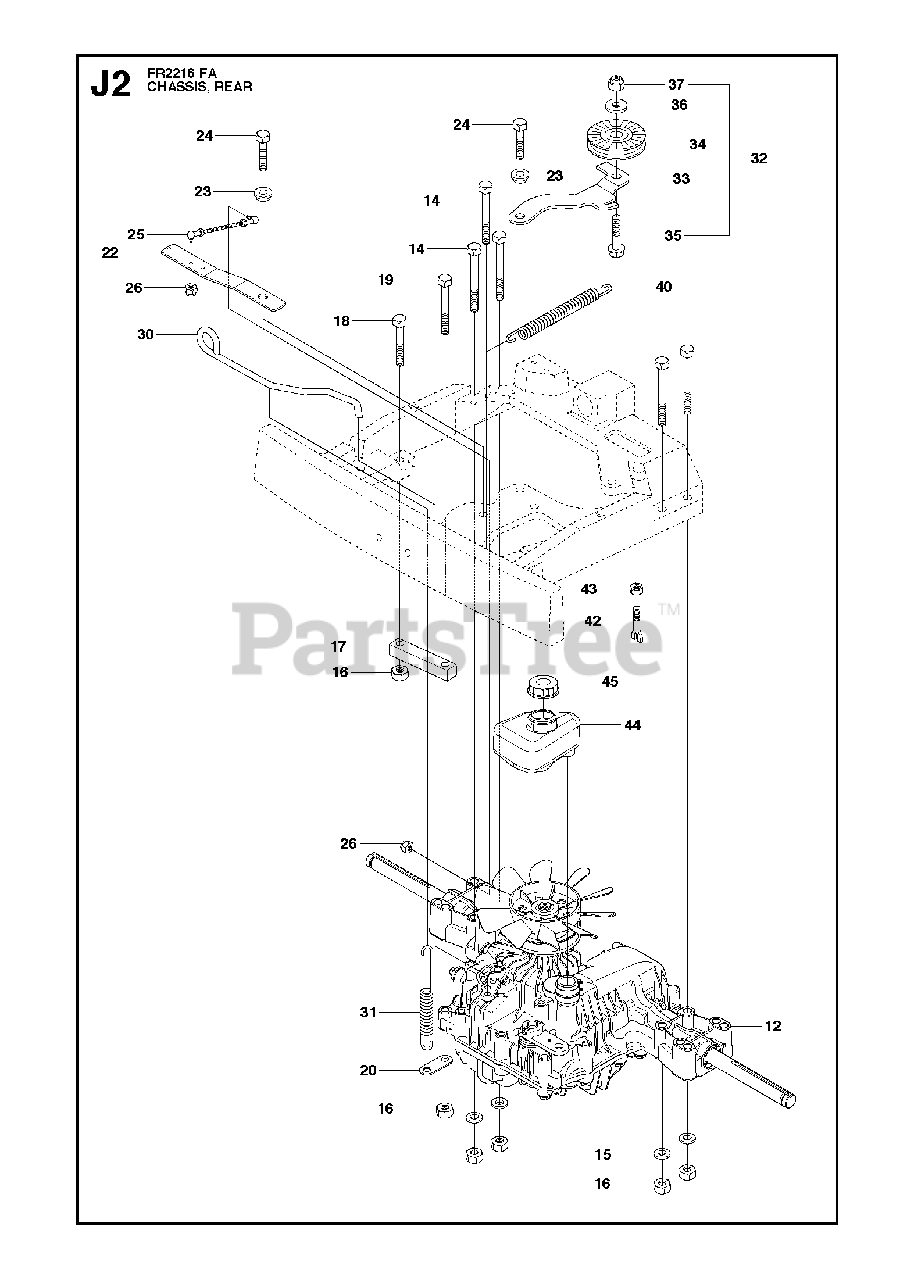

FR 2216 FA (966773601) - Jonsered Rear-Engine Riding Mower (2012) CHASSIS REAR Parts Diagram

Rear-Engine Riding Mower

CHASSIS REAR Parts Diagram

  • Title

12

Jonsered 506986301

HYDROSTAT
(Superseded to 506986302)

$

$

Not available

14

Jonsered 725246751

HEX BOLT

$1.49

$

Usually ships in 3-10 days

0

15

Jonsered 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

16

Jonsered 731231801

NUT
(Superseded to 695008078)

$

$

Not available

17

Jonsered 506987201

BRACKET

$

$

Not available

18

Jonsered 725245951

SCREW

$5.99

$

In Stock, only 4 left!

0

19

Jonsered 725246251

SCREW

$5.99

$

Usually ships in 3-10 days

0

20

Jonsered 506599301

CONNECTOR

$

$

Not available

22

Jonsered 506987403

ARM

$

$

Not available

23

Jonsered 506918702

WASHER
(Superseded to 584288601)

$

$

Not available

24

Jonsered 725245151

SCREW 8X20

$5.99

$

In Stock, only 4 left!

0

25

Jonsered 506987501

ROD

$37.99

$

Usually ships in 3-10 days

0

26

Jonsered 732211401

LOCKNUT M5

$6.49

$

In Stock, Qty 7

0

30

Jonsered 506988201

ROD

$

$

Not available

31

506834301

SPRING

$

$

Not available

32

Jonsered 506988401

TENSIONER

$62.99

$

Usually ships in 3-10 days

0

33

Jonsered 506988501

TENSIONER
(Superseded to 588740401)

Note: . 32

$17.99

$

Usually ships in 3-10 days

0

34

Jonsered 506946901

PULLEY

Note: . 32

$39.99

$

In Stock, only 1 left!

0

35

Jonsered 725245551

SCREW

Note: . 32

$

$

Not available

36

Jonsered 734116441

SPACER

Note: . 32

$4.99

$

Usually ships in 3-10 days

0

37

Jonsered 732211801

LOCKNUT M8

Note: . 32

$4.99

$

In Stock, Qty 12

0

40

Jonsered 506988601

SPRING

$

$

Not available

42

Jonsered 506988801

SCREW

$

$

Not available

43

Jonsered 731232051

NUT

$

$

Not available

44

Jonsered 506989001

TANK

$28.99

$

Usually ships in 3-10 days

0

45

Jonsered 506988001

TANK CAP

$

$

Not available
