FR 2216 A2 (966862901) - Jonsered Rear-Engine Riding Mower (2009-02) TRANSMISSION Parts Diagram

Rear-Engine Riding Mower

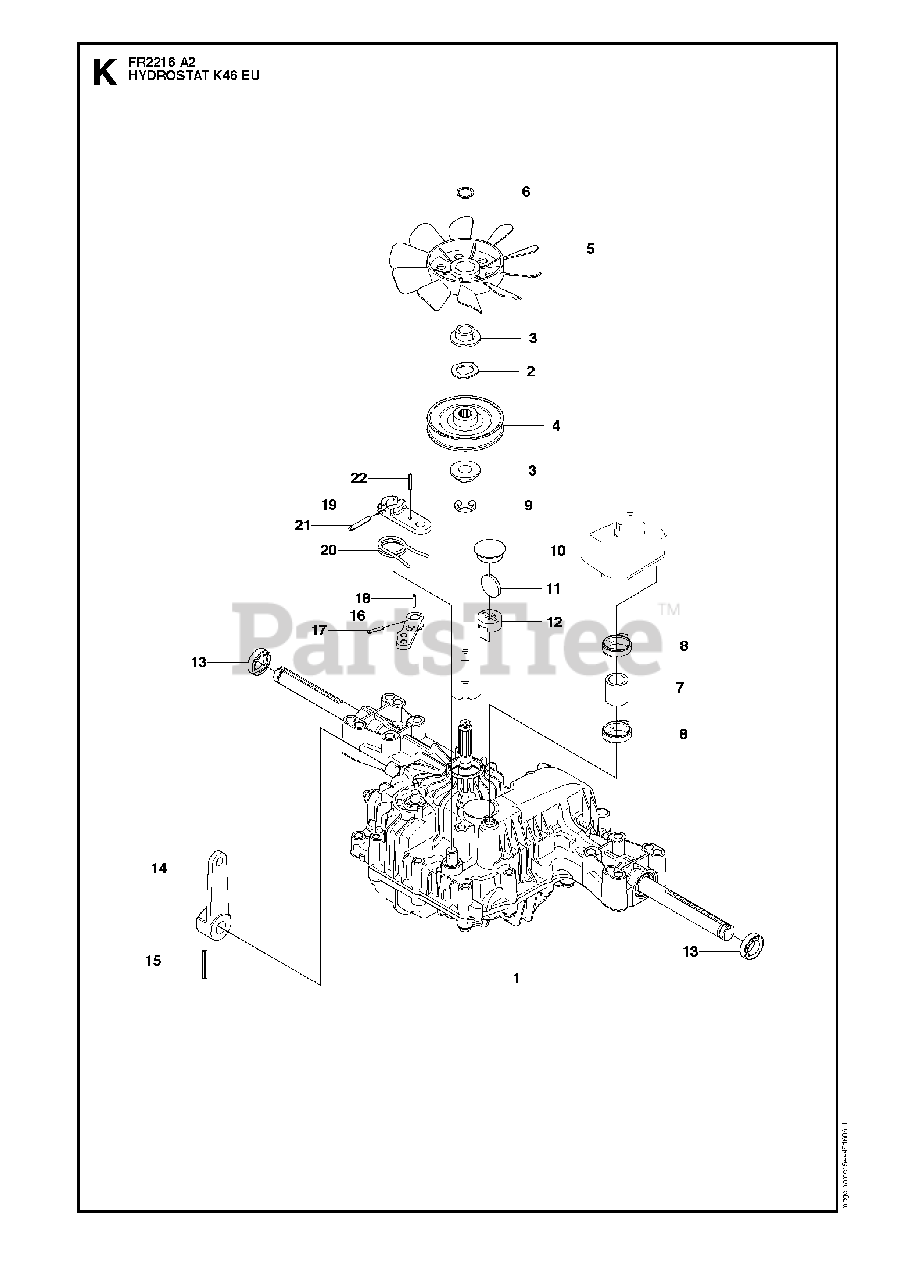

TRANSMISSION Parts Diagram

  • Title
1

Jonsered 506986301

HYDROSTAT
(Superseded to 506986302)

$

$

Not available

2

Jonsered 506986501

WASHER **

$4.99

$

Usually ships in 3-10 days

0

$9.49

$

Usually ships in 3-10 days

0

4

$48.99

$

Usually ships in 3-10 days

0

5

Jonsered 506986801

FAN
(Superseded to 583350101)

$53.99

$

In Stock, only 1 left!

0

6

Jonsered 735311500

RETAINING RING **

$5.99

$

In Stock, only 2 left!

0

$20.99

$

Usually ships in 3-10 days

0

8

Jonsered 506987001

CLAMP
(Superseded to 505131102)

$5.99

$

In Stock, only 1 left!

0

9

Jonsered 535402807

CLIP

Note: . 1

$

$

Not available

10

Jonsered 535402832

PLUG

Note: . 1

$17.99

$

Usually ships in 3-10 days

0

11

Jonsered 535402829

MAGNET

Note: . 1

$

$

Not available

12

Jonsered 502452001

MAGNET HOLDER

Note: . 1

$7.99

$

In Stock, only 1 left!

0

13

Jonsered 535402837

SEALING
(Superseded to 583349301)

Note: . 1

$37.99

$

In Stock, only 1 left!

0

14

Jonsered 502453201

CONTROL LEVER

Note: . 1

$39.99

$

Usually ships in 3-10 days

0

15

Jonsered 535402809

PIN

Note: . 1

$

$

Not available

16

Jonsered 535402817

ARM

Note: . 1

$22.99

$

Usually ships in 3-10 days

0

17

Jonsered 535402816

PIN

Note: . 1

$3.49

$

Usually ships in 3-10 days

0

18

Jonsered 535402833

PIN

Note: . 1

$3.49

$

Usually ships in 3-10 days

0

19

Jonsered 535402838

ARM

Note: . 1

$17.99

$

In Stock, only 1 left!

0

20

Jonsered 535402839

RETURN SPRING

Note: . 1

$

$

Not available

21

Jonsered 535402840

PIN

Note: . 1

$4.99

$

In Stock, only 1 left!

0

22

Jonsered 535402841

PIN

Note: . 1

$3.49

$

In Stock, only 1 left!

0
