FR 2216 A2 (966862901) - Jonsered Rear-Engine Riding Mower (2009-02) 103CM CUTTING DECK Parts Diagram

Rear-Engine Riding Mower

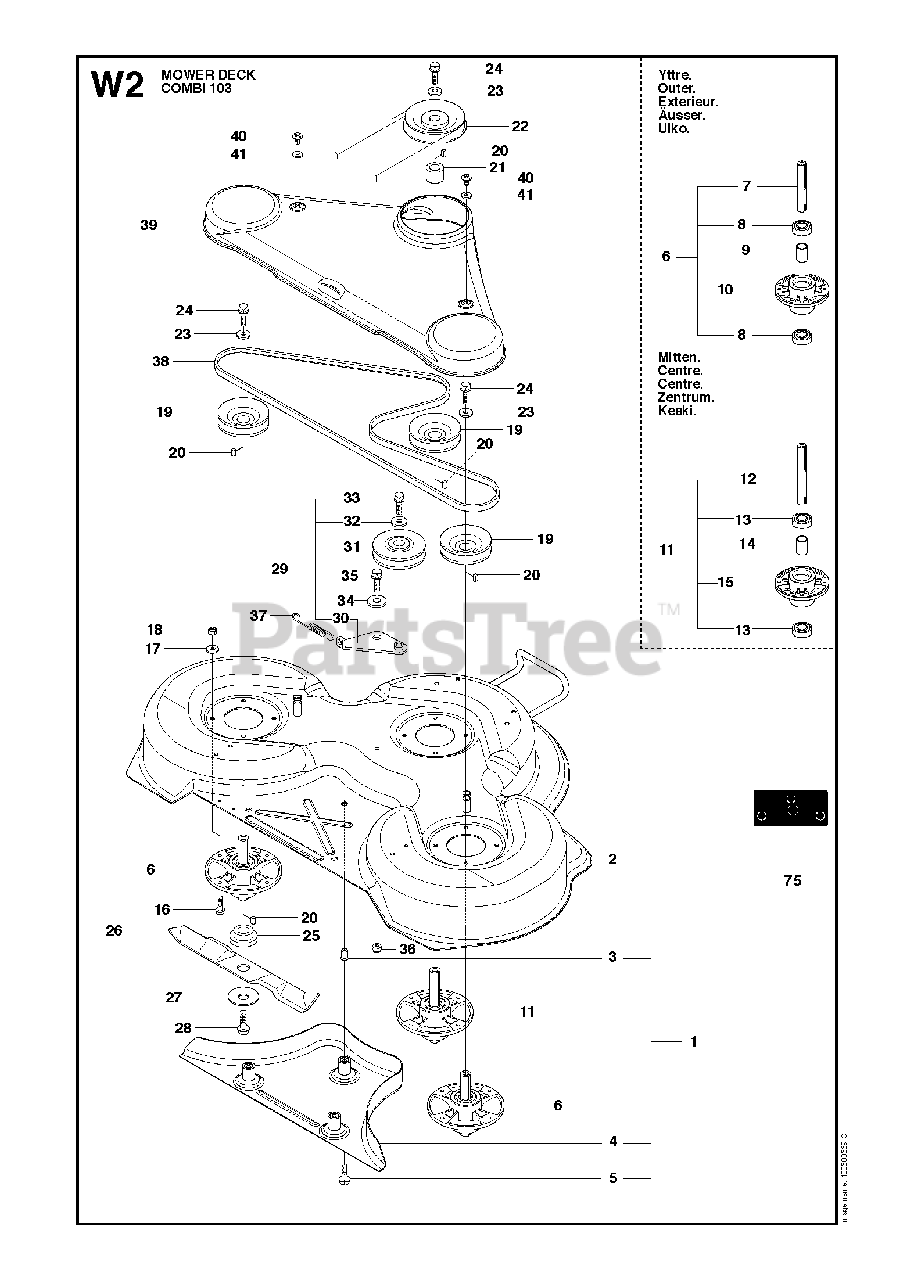

103CM CUTTING DECK Parts Diagram

  • Title
1

Jonsered 544112904

No Description Available

$

$

Not available

2

Jonsered 544112802

No Description Available

Note: . 1

$

$

Not available

3

Jonsered 506916201

NUT

Note: . 1

$7.49

$

Usually ships in 3-10 days

0

4

Jonsered 544449201

PLUG

Note: . 1

$74.99

$

In Stock, only 1 left!

0

5

Jonsered 506570104

BOLT

Note: . 1

$6.49

$

In Stock, only 1 left!

0

6

Jonsered 544065901

RP SPINDLE ASSY
(Superseded to 576384102)

$91.99

$

Usually ships in 3-10 days

0

7

Jonsered 544067902

SHAFT

Note: . 6

$

$

Not available

8

Jonsered 738230434

BEARING

Note: . 6

$20.99

$

Usually ships in 3-10 days

0

9

Jonsered 544068001

SPACER

Note: . 6

$

$

Not available

10

Jonsered 544067801

BEARING HOUSING

Note: . 6

$

$

Not available

11

Jonsered 544065902

RP SPINDLE ASSY
(Superseded to 576384101)

$96.99

$

In Stock, only 1 left!

0

12

Jonsered 544067901

SHAFT

Note: . 11

$

$

Not available

13

Jonsered 738230434

BEARING

Note: . 11

$20.99

$

Usually ships in 3-10 days

0

14

Jonsered 544068001

SPACER

Note: . 11

$

$

Not available

15

Jonsered 544067801

BEARING HOUSING

Note: . 11

$

$

Not available

$5.99

$

Usually ships in 3-10 days

0

17

Jonsered 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

18

Jonsered 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

19

$39.99

$

In Stock, only 1 left!

0

$6.49

$

Usually ships in 3-10 days

0

21

$11.99

$

In Stock, only 3 left!

0

22

$56.99

$

Usually ships in 3-10 days

0

23

$4.99

$

In Stock, only 2 left!

0

$4.99

$

In Stock, Qty 8

0

25

$22.99

$

Usually ships in 3-10 days

0

26

Jonsered 504188201

BLADE
(Superseded to 504188210)

$34.99

$

In Stock, only 3 left!

0

27

$

$

Not available

$4.99

$

In Stock, Qty 8

0

29

Jonsered 506540701

BELT TENSIONER ASSY

$

$

Not available

30

Jonsered 506519501

BELT TENSIONING ARM

Note: . 29

$91.99

$

Usually ships in 3-10 days

0

31

Jonsered 506532701

PULLEY

Note: . 29

$45.99

$

In Stock, only 1 left!

0

32

Jonsered 734116441

SPACER

Note: . 29

$4.99

$

Usually ships in 3-10 days

0

33

Jonsered 506558302

BOLT

Note: . 29

$4.99

$

In Stock, only 1 left!

0

34

Jonsered 506918702

WASHER
(Superseded to 584288601)

$

$

Not available

$1.49

$

In Stock, Qty 5

0

36

Jonsered 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

37

$11.99

$

Usually ships in 3-10 days

0

38

Jonsered 506768501

BELT
(Superseded to 531005017)

$66.99

$

In Stock, only 4 left!

0

39

Jonsered 544096102

No Description Available

$

$

Not available

$6.99

$

In Stock, Qty 6

0

41

$5.99

$

In Stock, only 4 left!

0

42

Jonsered 535423002

No Description Available

$

$

Not available

$1.49

$

In Stock, Qty 5

0

44

Jonsered 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

45

Jonsered 535468802

No Description Available

$

$

Not available

46

Jonsered 535468702

No Description Available

$

$

Not available

47

$

$

Not available

$6.99

$

Usually ships in 3-10 days

0

49

$

$

Not available

$5.99

$

In Stock, only 1 left!

0

51

Jonsered 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

52

Jonsered 506933904

PARALLEL RODY ASSY

$

$

Not available

53

Jonsered 506814906

ROD

Note: . 52

$

$

Not available

54

Jonsered 506789901

LINK

Note: . 52

$102.99

$

Usually ships in 3-10 days

0

55

Jonsered 506897601

NUT

Note: . 52

$

$

Not available

56

Jonsered 506951701

LINK

Note: . 52

$45.99

$

Usually ships in 3-10 days

0

57

Jonsered 731232051

NUT

Note: . 52

$

$

Not available

58

Jonsered 506941206

CLUTCH ROD ASSY

$

$

Not available

59

Jonsered 506941306

ROD

Note: . 58

$

$

Not available

60

Jonsered 506789901

LINK

Note: . 58

$102.99

$

Usually ships in 3-10 days

0

61

Jonsered 506897601

NUT

Note: . 58

$

$

Not available

62

$5.99

$

In Stock, only 1 left!

0

$1.99

$

In Stock, Qty 10

0

$4.49

$

In Stock, only 4 left!

0

65

Jonsered 535463602

No Description Available

$

$

Not available

$6.99

$

In Stock, only 1 left!

0

67

Jonsered 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

68

Jonsered 506963001

DECK ROLLER, FRONT

$62.99

$

In Stock, Qty 14

0

69

$4.99

$

Usually ships in 3-10 days

0

70

Jonsered 735311700

RETAINING RING SGA 15

$3.49

$

In Stock, Qty 7

0

$

$

Not available

$

$

Not available

73

Jonsered 734115601

WASHER
(Superseded to 734492601)

$

$

Not available

74

Jonsered 732211601

LOCKNUT M6

$5.99

$

In Stock, only 1 left!

0

$

$

Not available
