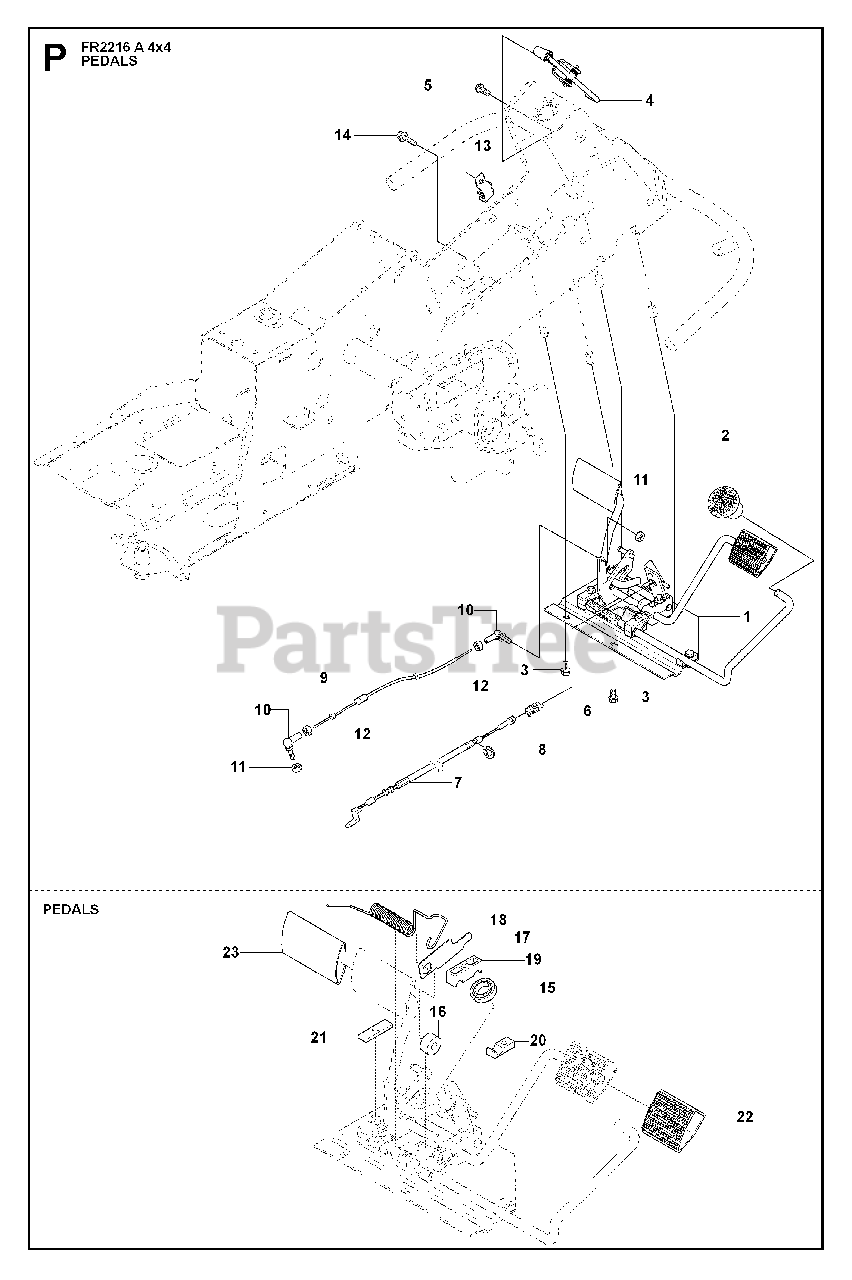

FR 2216 A 4X4 - Jonsered Rear-Engine Riding Mower (2009-04) PEDALS Parts Diagram

Rear-Engine Riding Mower

PEDALS Parts Diagram

  • Title
1

Jonsered 544126001

PEDAL ASSEMBLY
(Superseded to 583951401)

$159.99

$

Usually ships in 3-10 days

0

2

Jonsered 535473701

KNOB
(Superseded to 586727401)

$11.99

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, only 1 left!

0

4

Jonsered 544403101

BRAKE LEVER ASSY

$

$

Not available

$3.49

$

Usually ships in 3-10 days

0

$9.49

$

In Stock, only 1 left!

0

7

Jonsered 535489601

RP WIRE
(Superseded to 576712101)

$37.99

$

In Stock, only 1 left!

0

8

$7.49

$

In Stock, Qty 7

0

9

Jonsered 506827202

%WIRE
(Superseded to 574411101)

$120.99

$

Usually ships in 3-10 days

0

10

Jonsered 506557301

CONNECTOR
(Superseded to 578776801)

$11.99

$

In Stock, only 1 left!

0

11

Jonsered 732211401

LOCKNUT M5

$6.49

$

In Stock, Qty 7

0

$2.49

$

In Stock, Qty 8

0

13

$6.99

$

Usually ships in 3-10 days

0

$3.49

$

Usually ships in 3-10 days

0

15

Jonsered 738210204

BALL BEARING 6002-2RS1

$13.99

$

Usually ships in 3-10 days

0

16

Jonsered 535480201

ROLLER
(Superseded to 535459901)

$

$

Not available

17

Jonsered 535480601

PLATE
(Superseded to 535459601)

$

$

Not available

18

Jonsered 535480701

SPRING
(Superseded to 535459501)

$9.49

$

Usually ships in 3-10 days

0

19

Jonsered 535480801

PEDAL SHAFT CLAMP
(Superseded to 506506501)

$7.99

$

Usually ships in 3-10 days

0

20

Jonsered 535480901

SUPPORT
(Superseded to 506954101)

$6.99

$

Usually ships in 3-10 days

0

21

Jonsered 535481001

PLATE
(Superseded to 506804101)

$6.99

$

Usually ships in 3-10 days

0

22

Jonsered 535478801

PEDAL RUBBER
(Superseded to 506506201)

$17.99

$

In Stock, only 2 left!

0

23

Jonsered 535478802

PEDAL RUBBER, SF
(Superseded to 506506202)

$17.99

$

In Stock, only 3 left!

0
