FR 2215 MA 4x4 (966632201) - Jonsered Rear-Engine Riding Mower (2011) MOWER DECK / CUTTING DECK Parts Diagram

Rear-Engine Riding Mower

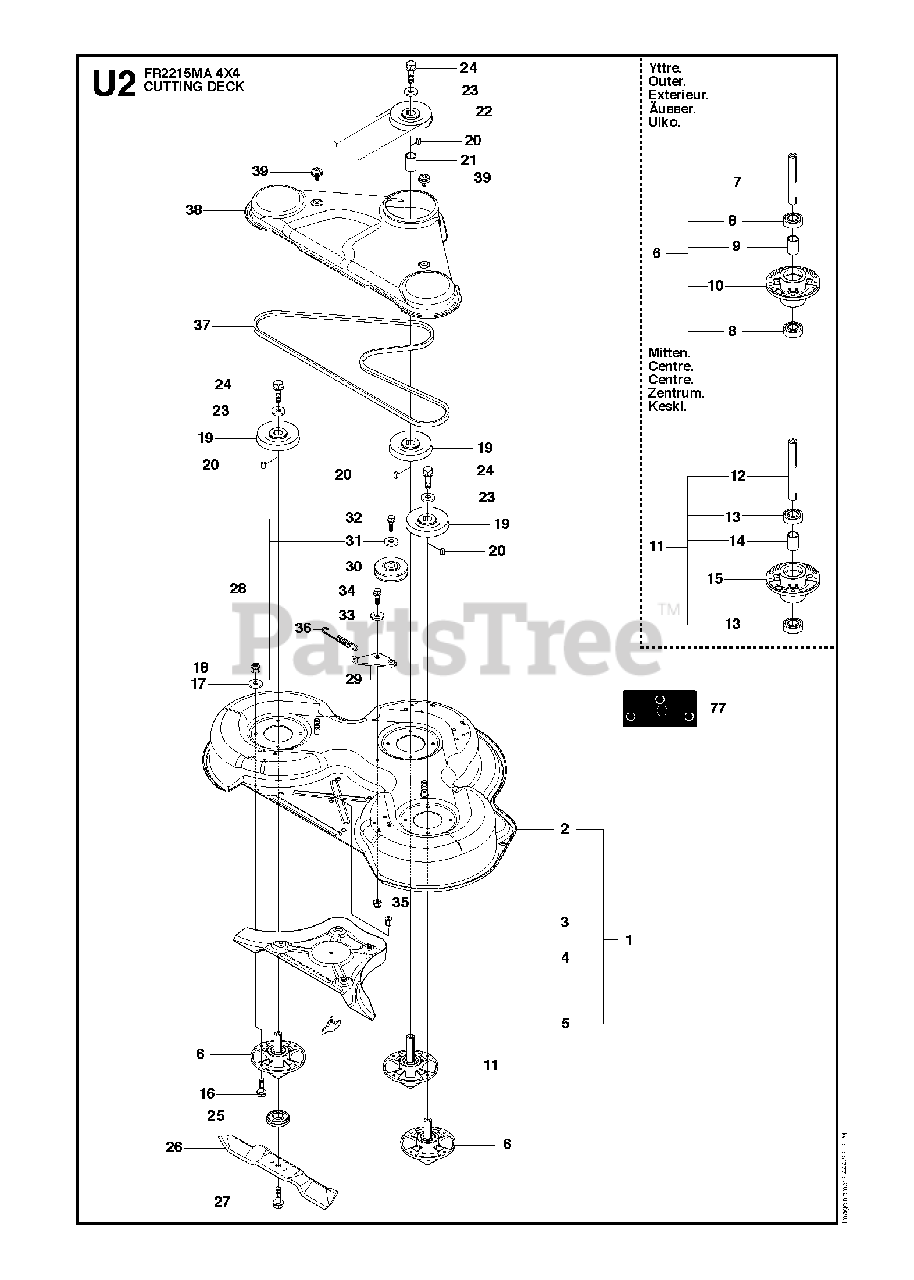

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Jonsered 544065705

No Description Available

$

$

Not available

2

Jonsered 544065507

No Description Available

Note: . 1

$

$

Not available

3

Jonsered 506916201

NUT

Note: . 1

$7.49

$

Usually ships in 3-10 days

0

4

Jonsered 544065801

No Description Available

Note: . 1

$

$

Not available

5

Jonsered 544066101

No Description Available

Note: . 1

$

$

Not available

6

Jonsered 544065901

RP SPINDLE ASSY
(Superseded to 576384102)

$102.99

$

Usually ships in 3-10 days

0

7

Jonsered 544067902

SHAFT

Note: . 6

$

$

Not available

8

Jonsered 738230434

BEARING

Note: . 6

$22.99

$

Usually ships in 3-10 days

0

9

Jonsered 544068001

SPACER

Note: . 6

$

$

Not available

10

Jonsered 544067801

BEARING HOUSING

Note: . 6

$

$

Not available

11

Jonsered 544065903

No Description Available

$

$

Not available

12

Jonsered 544067903

No Description Available

Note: . 11

$

$

Not available

13

Jonsered 738230434

BEARING

Note: . 11

$22.99

$

Usually ships in 3-10 days

0

14

Jonsered 544068001

SPACER

Note: . 11

$

$

Not available

15

Jonsered 544067801

BEARING HOUSING

Note: . 11

$

$

Not available

16

Jonsered 535423801

BOLT

$5.99

$

Usually ships in 3-10 days

0

17

Jonsered 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

18

Jonsered 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 6

0

19

Jonsered 506922101

PULLEY

$39.99

$

In Stock, only 1 left!

0

20

Jonsered 506533501

KEY

$6.49

$

Usually ships in 3-10 days

0

21

Jonsered 544068003

No Description Available

$

$

Not available

22

Jonsered 506778601

PULLEY

$62.99

$

Usually ships in 3-10 days

0

23

Jonsered 734117441

WASHER

$4.99

$

In Stock, Qty 20+

0

24

Jonsered 506675402

BOLT

$6.99

$

Usually ships in 3-10 days

0

25

Jonsered 544064901

No Description Available

$9.49

$

Usually ships in 3-10 days

0

26

Jonsered 505544501

No Description Available
(Superseded to 579652510)

$26.99

$

Usually ships in 3-10 days

0

27

Jonsered 506675402

BOLT

$6.99

$

Usually ships in 3-10 days

0

28

Jonsered 506797301

No Description Available

$

$

Not available

29

Jonsered 506797101

BRACKET

Note: . 28

$28.99

$

Usually ships in 3-10 days

0

30

Jonsered 506793201

PULLEY
(Superseded to 580794101)

Note: . 28

$

$

Not available

31

Jonsered 734116441

SPACER

Note: . 28

$4.99

$

Usually ships in 3-10 days

0

32

Jonsered 506558302

BOLT

Note: . 28

$6.99

$

In Stock, only 1 left!

0

33

Jonsered 506918702

WASHER
(Superseded to 584288601)

$

$

Not available

34

Jonsered 725245171

SCREW

$1.99

$

In Stock, Qty 5

0

35

Jonsered 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 6

0

36

Jonsered 506533101

SPRING

$13.99

$

Usually ships in 3-10 days

0

37

Jonsered 544068101

No Description Available

$

$

Not available

38

Jonsered 522821902

No Description Available

$

$

Not available

39

Jonsered 544400501

SCREW

$4.99

$

In Stock, only 4 left!

0

77

Jonsered 506789701

DECAL

$

$

Not available
