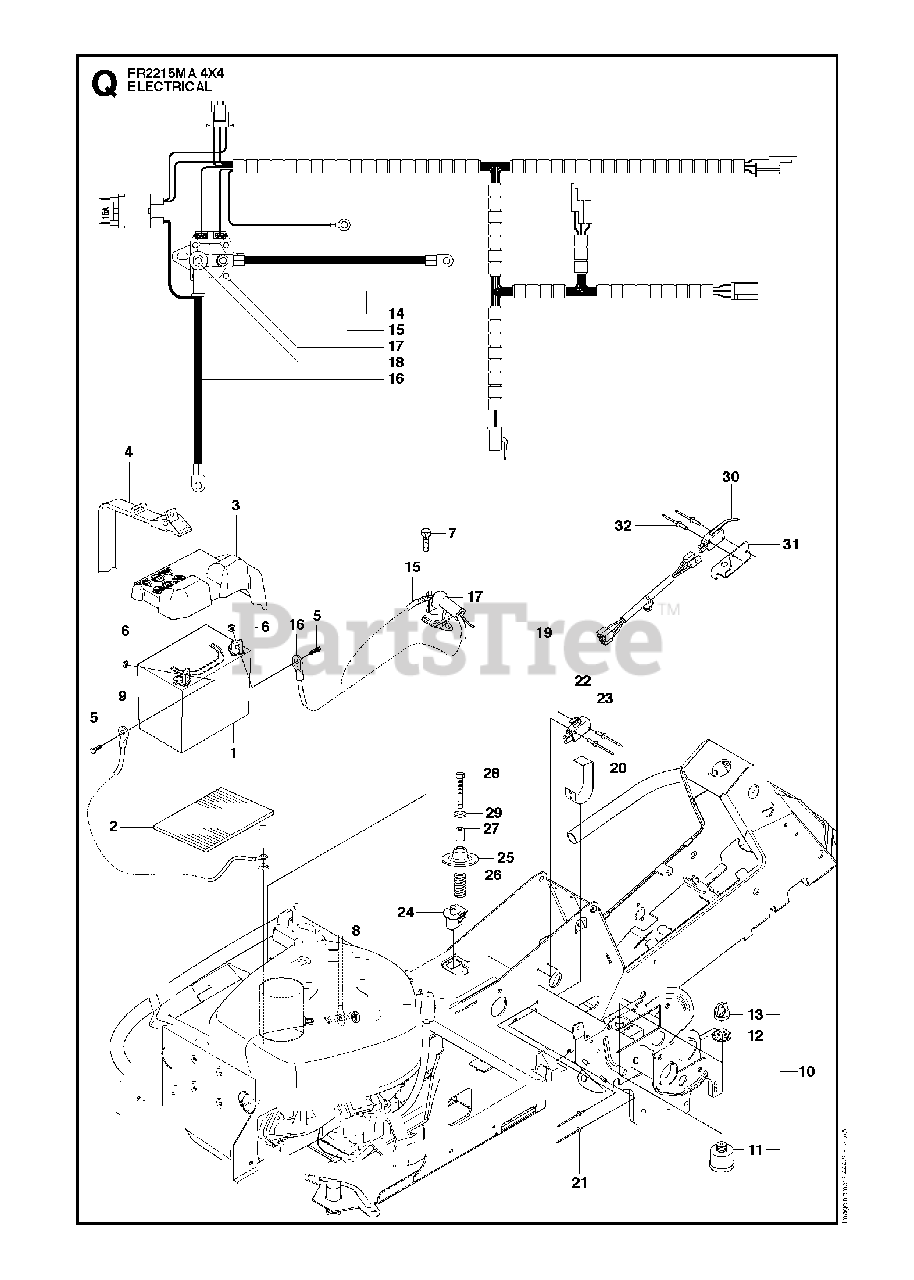

FR 2215 MA 4x4 (966632201) - Jonsered Rear-Engine Riding Mower (2011) ELECTRICAL Parts Diagram

Rear-Engine Riding Mower

ELECTRICAL Parts Diagram

  • Title
1

Jonsered 510138501

No Description Available

$

$

Not available

$

$

Not available

3

Jonsered 510026901

No Description Available

$

$

Not available

$11.99

$

Usually ships in 3-10 days

0

5

Jonsered 522622101

SCREW EHHM

$3.99

$

Usually ships in 3-10 days

0

$

$

Not available

$3.49

$

Usually ships in 3-10 days

0

$

$

Not available

9

Jonsered 544967603

No Description Available

$

$

Not available

10

Jonsered 544442101

IGNITION SWITCH

$28.99

$

Usually ships in 3-10 days

0

11

Jonsered 544442201

IGNITION SWITCH

Note: . 10

$20.99

$

Usually ships in 3-10 days

0

12

Jonsered 544442301

NUT

Note: . 10

$3.49

$

Usually ships in 3-10 days

0

13

Jonsered 544442401

IGNITION KEY

Note: . 10

$7.99

$

Usually ships in 3-10 days

0

14

$

$

Not available

$

$

Not available

16

Jonsered 544926104

No Description Available

$

$

Not available

$20.99

$

In Stock, only 1 left!

0

$

$

Not available

19

Jonsered 576185401

WIRING
(Superseded to 544892201)

$26.99

$

Usually ships in 3-10 days

0

20

$

$

Not available

$

$

Not available

22

$14.99

$

In Stock, only 1 left!

0

$3.49

$

Usually ships in 3-10 days

0

24

$31.99

$

Usually ships in 3-10 days

0

25

$14.99

$

Usually ships in 3-10 days

0

26

$

$

Not available

27

Jonsered 506909902

SPACER TUBE

$4.99

$

Usually ships in 3-10 days

0

28

Jonsered 725246051

SCREW
(Superseded to 725246071)

$6.49

$

Usually ships in 3-10 days

0

29

Jonsered 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

30

Jonsered 574316101

MICRO SWITCH

$13.99

$

Usually ships in 3-10 days

0

31

$5.99

$

Usually ships in 3-10 days

0

$3.49

$

Usually ships in 3-10 days

0
