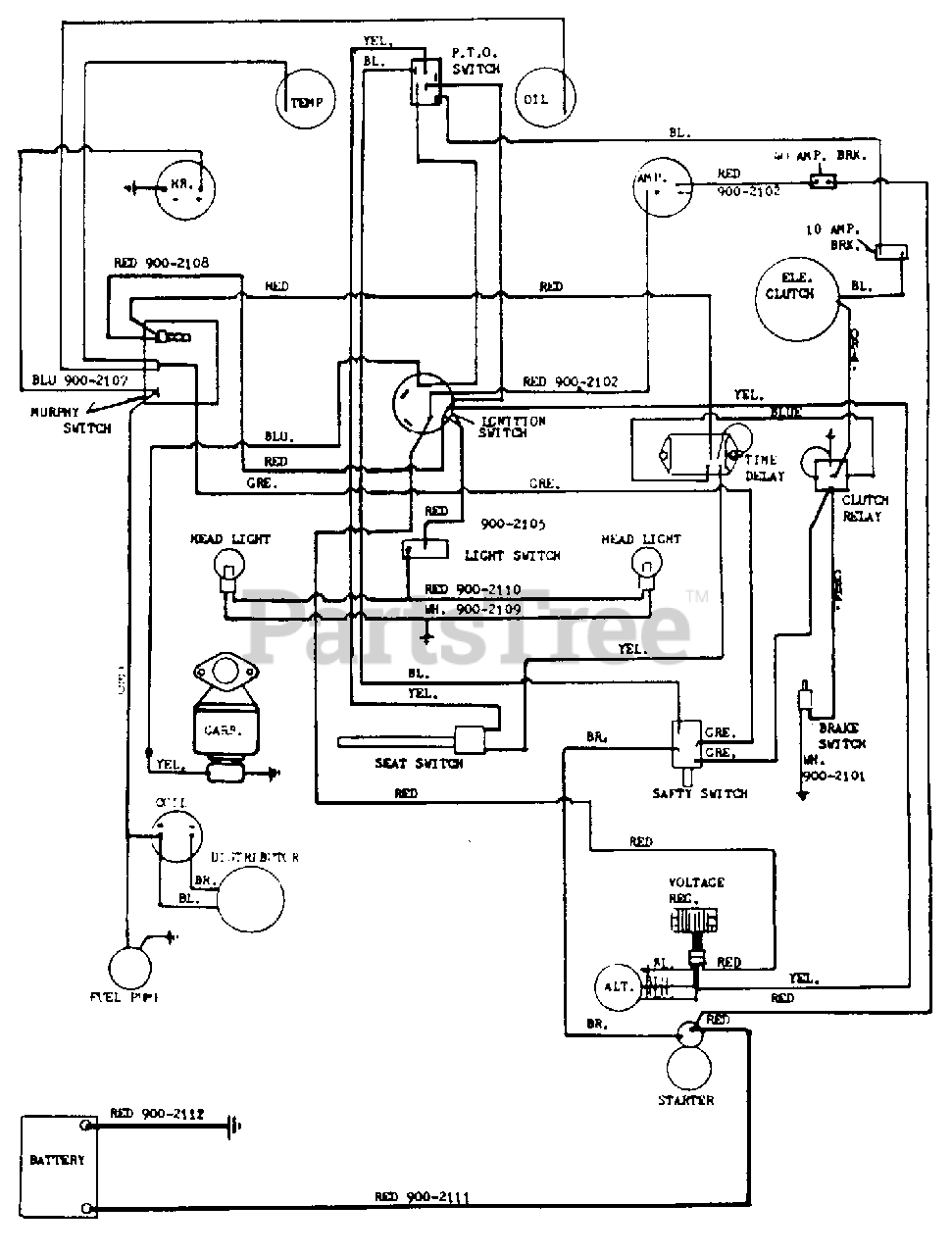

FR-2200 G (130-027-190) - White Outdoor Front-Mount Riding Mower (1990) Wiring Diagram Parts Diagram

Front-Mount Riding Mower

Wiring Diagram Parts Diagram

  • Title

$

$

Not available

$

$

Not available

White Outdoor WD-900-2027

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

White Outdoor WD-900-2028

PT0 Swltch
(Superseded to 925-3022)

$54.99

$

In Stock, only 2 left!

0

$

$

Not available

White Outdoor WD-900-2037

Electric Clutch Relay
(Superseded to WD-C37515)

$

$

Not available

WD-900-2043

Battery

$

$

Not available

White Outdoor WD-900-2044

10 Amp Circult Breaker

$

$

Not available

White Outdoor WD-900-2046

Brake Swltch
(Superseded to 925-3060)

$40.99

$

In Stock, only 2 left!

0

WD-900-2047

30 Amp Circuit Breaker

$

$

Not available

WD-900-2051

Light Assembly

$

$

Not available

$

$

Not available

White Outdoor WD-900-2053

Ignition Switch
(Superseded to KB-66706-55120)

$125.99

$

Usually ships in 3-6 days

0

White Outdoor WD-900-2054

Voltage Regulator
(Superseded to KB-H1550-64600)

$259.99

$

Usually ships in 3-6 days

0

WD-900-2056

Oil Gauge

$

$

Not available

WD-900-2057

Temperature Gauge

$

$

Not available

$

$

Not available

White Outdoor WD-900-2064

Fuel Pump
(Superseded to KB-EG601-52034)

$279.99

$

Usually ships in 3-6 days

0

WD-900-2113

Main Wiring Harness

$

$

Not available

$

$

Not available

$

$

Not available
