FR-2200 G (130-027-190) - White Outdoor Front-Mount Riding Mower (1990) Wheel Motor & Pump Assembly Parts Diagram

Front-Mount Riding Mower

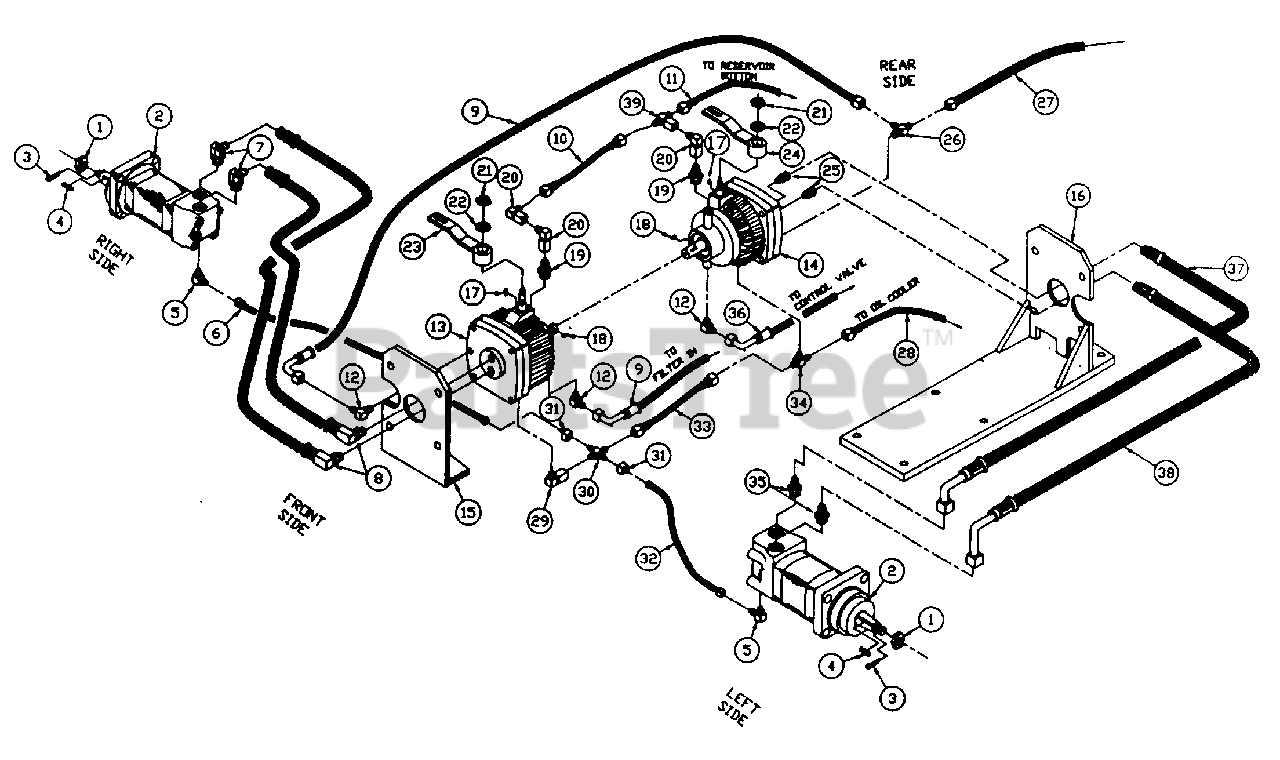

Wheel Motor & Pump Assembly Parts Diagram

  • Title

1

White Outdoor WD-900-8126

Hub Nut

$

$

Not available

2

WD-900-8131

Wheel Motor, Liquid-cooled

$

$

Not available

3

WD-900-6177

Cotter Rey, 3/16" x 1 3/4"

$

$

Not available

4

Key, 5/16" x 1"

$

$

Not available

5

White Outdoor WD-900-8015

Male Tube, 90ø Adj. O-ring Adpt.

$

$

Not available

6

WD-900-8149

Hose Ass'y. 1/4" LD x 5 1/4"

$

$

Not available

7

White Outdoor WD-900-8016

Male Tub, 90ø Adj. O-ring Adpt.

$

$

Not available

8

WD-900-8158

Hose Ass'y., 1/2" ID x 19"

$

$

Not available

9

White Outdoor WD-900-8106

Hose Ass'y., 3/8" ID x 30"

$

$

Not available

10

WD-900-8152

Hose Ass'y., 5/8" ID x 4 1/2"

$

$

Not available

11

WD-900-8153

H08e AJJ'Y., 3/4" ID x 21"

$

$

Not available

12

WD-900-8097

Male Tub, 90ø Adj. O-ring Adpt.

$

$

Not available

13

White Outdoor WD-900-8064

Pump, LH

Note: For model 11

$

$

Not available

14

WD-900-8063

Pump, RH.

Note: For model 11

$

$

Not available

15

WD-140-0056

Trans Pump Mount End

$

$

Not available

16

WD-140-0055

Trans Pump Mount

$

$

Not available

17

WD-900-8123

Woodruff Key, 1/8" x 5/8"

$

$

Not available

18

Woodruff 1ey, 3/16" x 3/4"

$

$

Not available

19

WD-900-8140

Male Tube, Male O-ring dpt.

$

$

Not available

20

WD-900-8141

Male Tub, 90ø Female Swivel Adpt.

$

$

Not available

21

White Outdoor WD-900-6125

Hex Nut, 1/2-13 0
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor WD-900-6127

Lockwasher, 1/2"
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

23

WD-140-0057

Stcerlng Arm, RL

$

$

Not available

24

WD-140-0059

Steerlng Arm, LH

$

$

Not available

25

White Outdoor WD-900-8018

Male O-rlng, Female Pipe Swivel Adpt.

$

$

Not available

26

WD-900-8147

Male Tube, Male O-rlng Tee

$

$

Not available

27

WD-900-8105

Hose Ass'y., 3/8" ID x ll 1/2"

$

$

Not available

28

WD-900-8150

Hose Ass'y., 1/2" ID x 29"

$

$

Not available

29

WD-900-8148

Adt. Male O-rlng, 90ø Female Swlvel Adpt.

$

$

Not available

30

WD-900-8139

Male Tube Cross

$

$

Not available

31

WD-900-8136

Female Tube, Male Tube Reducer

$

$

Not available

32

White Outdoor WD-900-8108

Hose Ass'y., 1/4" ID x 20"

$

$

Not available

33

WD-900-8151

Hose Ass'y.1/2" ID x 5 3/4"

$

$

Not available

34

WD-900-8146

Male Tube, d. Male O-rlng Tee

$

$

Not available

35

White Outdoor WD-900-8007

Male Tube, Male O-rlng Adpt.

$

$

Not available

36

WD-900-8157

Hose Ass'y. 3/8" ID x 42"

$

$

Not available

37

WD-900-8028

Hose Ass'y., 1/2" ID x 42"

$

$

Not available

38

White Outdoor WD-900-8029

Hose Assy. 1/2" ID x 42"

$

$

Not available

39

WD-900-8144

Male Tube, Female Swivel Tee

$

$

Not available
