FR-2200 G (130-027-190) - White Outdoor Front-Mount Riding Mower (1990) Single Tail Wheel Assembly Parts Diagram

Front-Mount Riding Mower

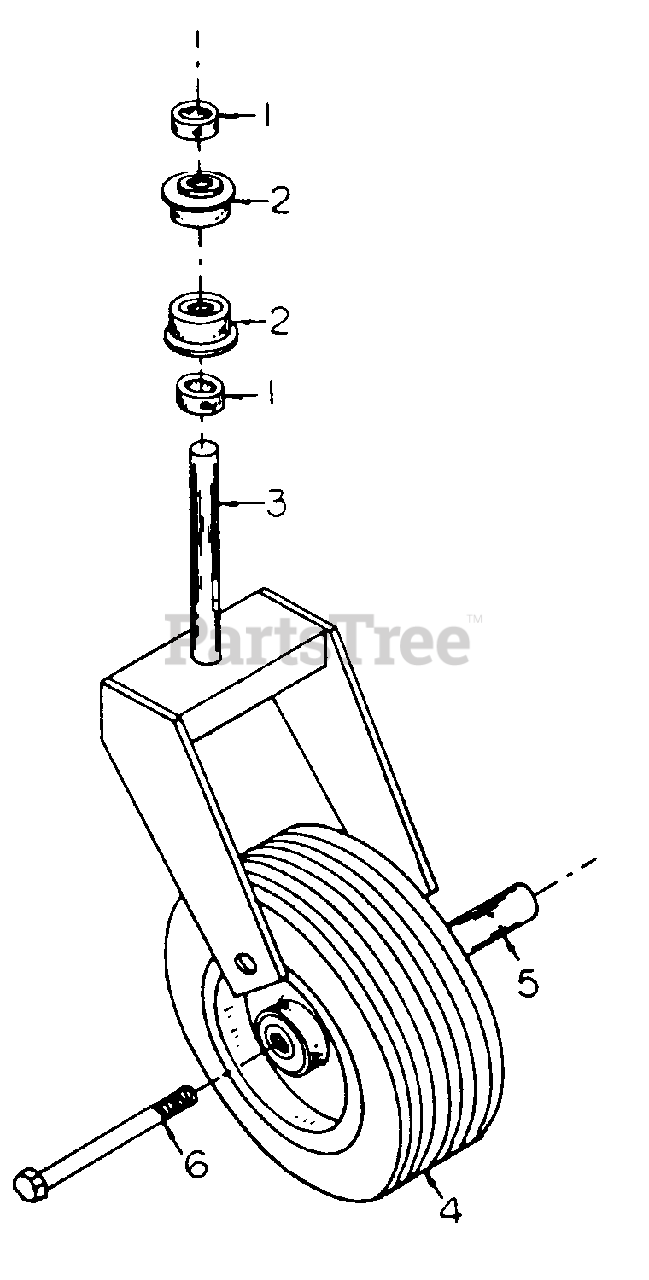

Single Tail Wheel Assembly Parts Diagram

  • Title
1

White Outdoor WD-900-5659

Set Collar, 1 1/4"

$

$

Not available

2

White Outdoor WD-900-3514

Bearing, 1 1/4"

$

$

Not available

3

WD-340-0025

Tall Wheel Fork

$

$

Not available

4

White Outdoor WD-900-4026

Wheel Assembly

$

$

Not available

White Outdoor WD-900-3515

Wheel Assembly Bearing

$

$

Not available

White Outdoor WD-900-4017

Tire, 15 x 6.00-6

$

$

Not available

$

$

Not available

6

WD-900-6131

Bolt, 1/2-13 x 9 1/2"

$

$

Not available
