FR-2200 G (130-027-190) - White Outdoor Front-Mount Riding Mower (1990) Oil Cooler & Reservoir Assembly Parts Diagram

Front-Mount Riding Mower

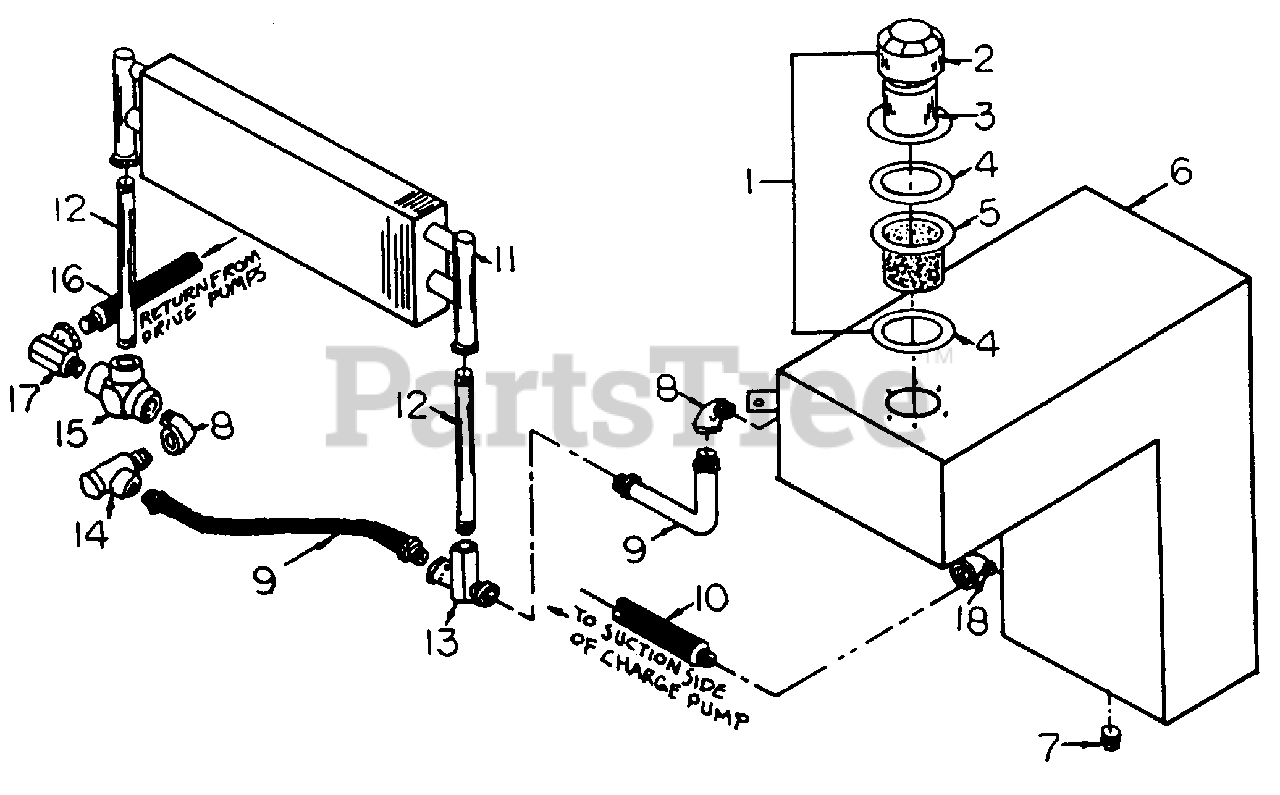

Oil Cooler & Reservoir Assembly Parts Diagram

  • Title
1

White Outdoor WD-900-8056

Hydraulic Fill Cap Assembly

$

$

Not available

2

$

$

Not available

$

$

Not available

$

$

Not available

5

WD-900-8042

Strainer

$

$

Not available

6

WD-140-0043

Oil Reservoir

$

$

Not available

7

WD-900-8127

Pipe Plug, 1/2"

$

$

Not available

8

WD-900-8022

Male Pipe, 9ø Female Pipe Adpt.

$

$

Not available

9

White Outdoor WD-900-8037

Easy Couple Hose, 1/2" I.D. x 10 5/8" Long

$

$

Not available

10

WD-900-8153

Easy Couple Hose, 3/4" ID x 21" Lg.

$

$

Not available

11

WD-900-8001

Oil Cooler

$

$

Not available

12

White Outdoor WD-900-8002

Pipe Nipple, 1/2" x 10"

$

$

Not available

13

White Outdoor WD-900-8009

Female Pipe, Female Pipe Swivel Tee

$

$

Not available

14

WD-900-8023

Relief Valve

$

$

Not available

15

White Outdoor WD-900-8012

Female Pipe Tee

$

$

Not available

16

WD-900-8150

Easy Couple Hose, 1/2" ID x 29" Long

$

$

Not available

17

WD-900-8137

Male Pipe, 90ø Male Tube Adapter 4 Cylinder

$

$

Not available

WD-900-8135

Male Tube, Male Pipe Adapter 3 Cylinder

$

$

Not available

18

WD-900-8061

Male Pipe, 45ø Female Pipe Adpt.

$

$

Not available
