FR-2200 G (130-027-190) - White Outdoor Front-Mount Riding Mower (1990) 52" Deck Parts Parts Diagram

Front-Mount Riding Mower

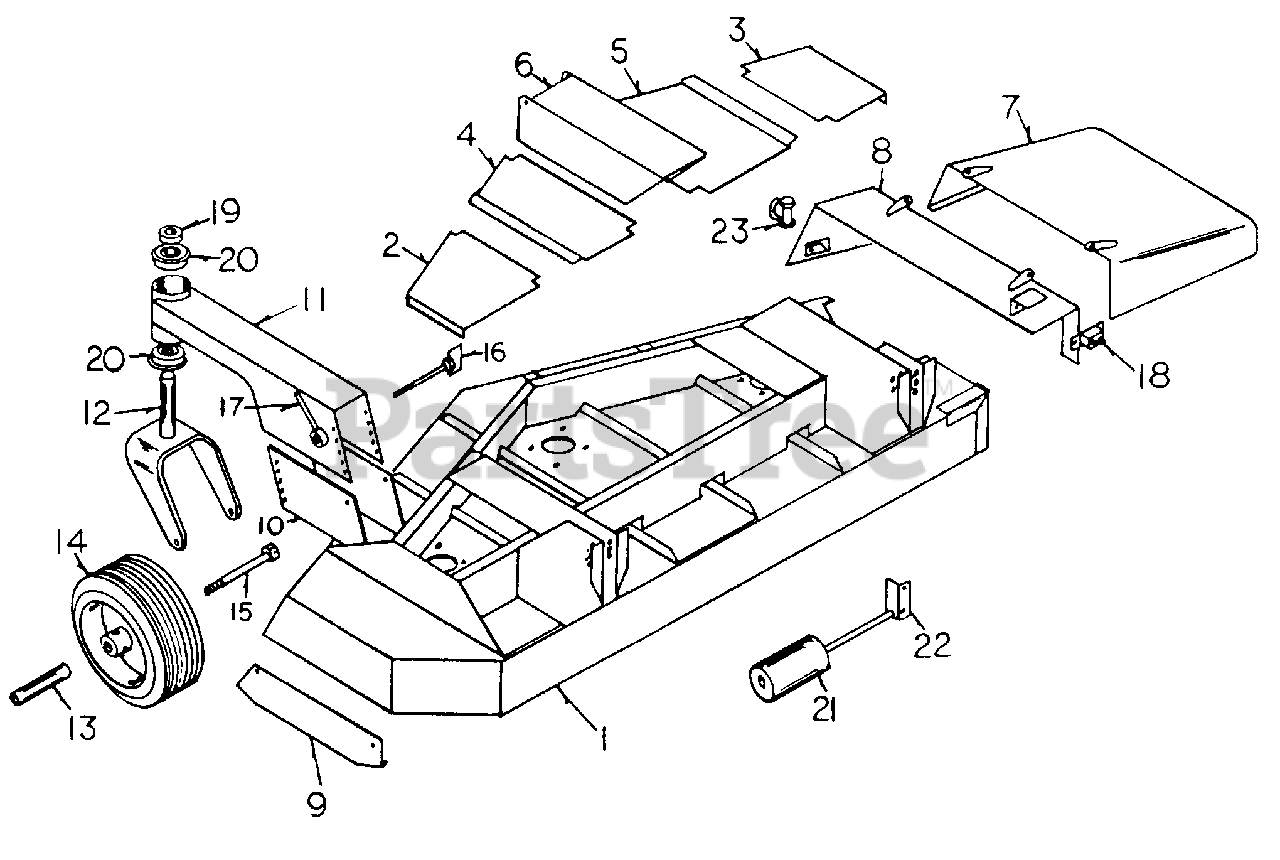

52" Deck Parts Parts Diagram

  • Title

1

WD-325-0000

Deck, 52"

$

$

Not available

2

WD-325-0002

Outside Cover, LH

$

$

Not available

3

WD-325-0003

Outslde Cover, RH.

$

$

Not available

4

WD-325-0004

Center Cover, LH

$

$

Not available

5

WD-325-0005

Center Cover, RH.

$

$

Not available

6

WD-345-0008

Drive Shaft Cover

$

$

Not available

7

White Outdoor WD-320-0015

Fas-tatch Foot Guard

$

$

Not available

8

White Outdoor WD-320-0016

Fas-tatch Foot Gusrd Mbunt

$

$

Not available

9

White Outdoor WD-320-0014

Shoe, LH Side

$

$

Not available

10

White Outdoor WD-300-0044

Gauge Wheel Mount Bracket

$

$

Not available

11

White Outdoor WD-300-0043

Gauge Wheel Mbunt

$

$

Not available

12

White Outdoor WD-330-0007

Gauge Wheel Fork

$

$

Not available

13

White Outdoor WD-200-0017

Axle
(Superseded to WD-C37915)

$

$

Not available

14

White Outdoor WD-900-4004

Wheel Assembly

$

$

Not available

White Outdoor WD-900-4006

Tire, 11 x 4.00-5

$

$

Not available

White Outdoor WD-900-3505

Wheel Assembly Bearing

$

$

Not available

15

WD-900-6131

Hex Bolt, 1/2-13 x 6 1/2"

$

$

Not available

16

White Outdoor WD-900-6096

Wing Bolt

$

$

Not available

17

White Outdoor WD-900-6092

Handle Nut

$

$

Not available

18

White Outdoor WD-900-2044

10 Amp Circult Breaker

$

$

Not available

19

White Outdoor WD-900-5510

Set Collar

$

$

Not available

20

White Outdoor WD-900-3501

Bearing

$

$

Not available

21

White Outdoor WD-900-5559

Antl-scalp Roller

$

$

Not available

22

White Outdoor WD-300-0038

Shaft & Bracket

$

$

Not available

23

White Outdoor WD-900-5615

LS Fas-tatch Pin

$

$

Not available

WD-900-5613

Clevis Pin, 1/2" x 2"

$

$

Not available

White Outdoor WD-900-5520

Halr Pin Cotter, .120" x 2 1/2"

$

$

Not available
