FR-2200 D (130-028-190) - White Outdoor Front-Mount Riding Mower (1990) Wiring Diagram Parts Diagram

Front-Mount Riding Mower

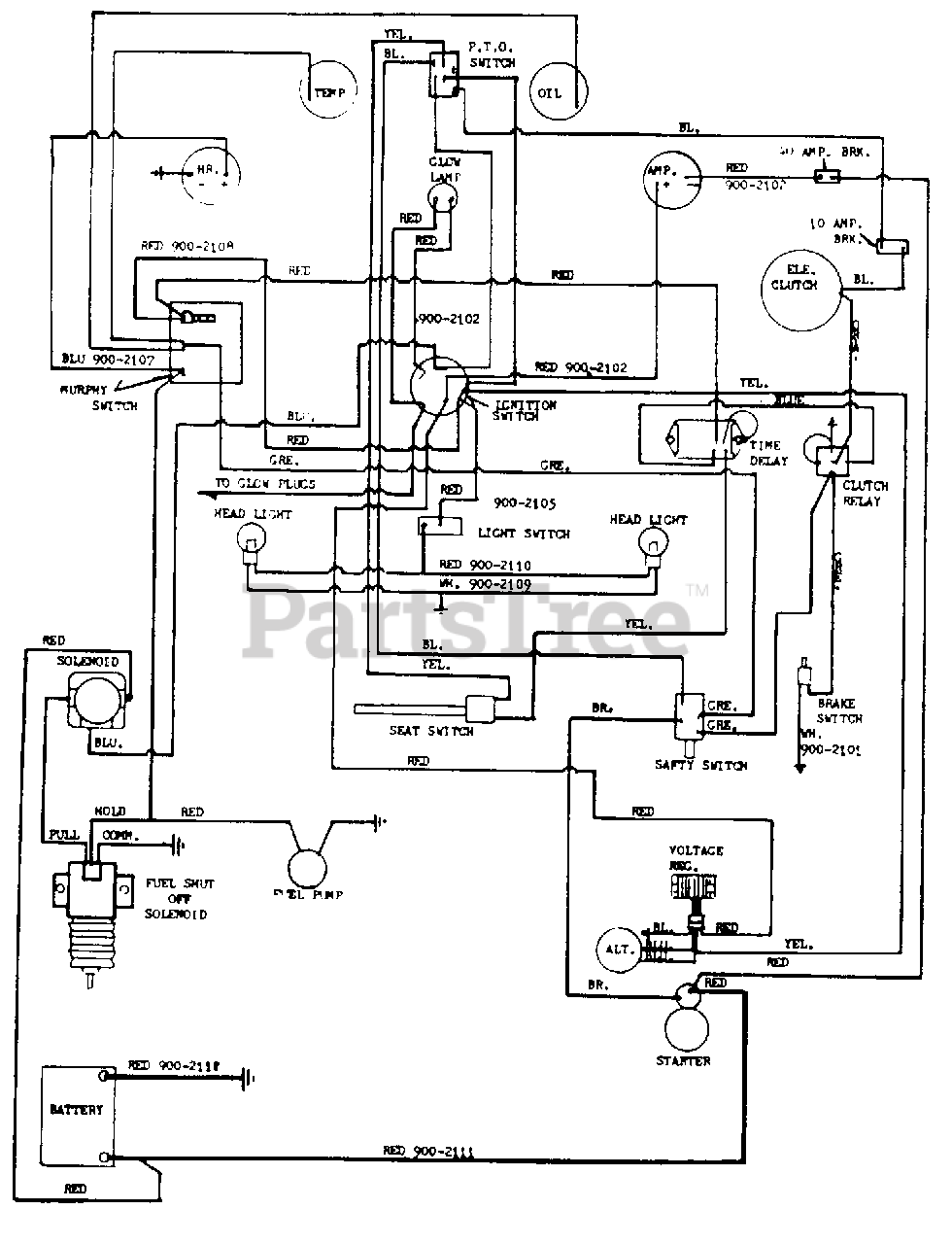

Wiring Diagram Parts Diagram

  • Title

$

$

Not available

$

$

Not available

$

$

Not available

White Outdoor WD-900-2027

Light Switch 1
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

White Outdoor WD-900-2028

PT0 Switch 1
(Superseded to 925-3022)

$54.99

$

In Stock, only 2 left!

0

White Outdoor WD-900-2029

Safety Switch 1

$

$

Not available

White Outdoor WD-900-2037

Electric Clutch Relay 1
(Superseded to WD-C37515)

$

$

Not available

WD-900-2043

Battery 1

$

$

Not available

White Outdoor WD-900-2044

10 Amp Circuit Breaker 1

$

$

Not available

White Outdoor WD-900-2045

Fuel Shutoff Solenoid 1

$

$

Not available

White Outdoor WD-900-2046

Brake Switch 1
(Superseded to 925-3060)

$40.99

$

In Stock, only 2 left!

0

WD-900-2047

30 Amp Circuit Breaker 1

$

$

Not available

WD-900-2051

Light Assembly 2

$

$

Not available

White Outdoor WD-900-2052

Murphy Switch 1

$

$

Not available

White Outdoor WD-900-2053

lgnition Switch 1
(Superseded to KB-66706-55120)

$125.99

$

Usually ships in 3-6 days

0

White Outdoor WD-900-2055

Glow Plug Indlcator 1

$

$

Not available

WD-900-2056

Oil Gauge 1

$

$

Not available

WD-900-2057

Temperature Gauge 1

$

$

Not available

White Outdoor WD-900-2058

60 Amp Gauge 1

$

$

Not available

WD-900-2059

Fuel Pump 1

$

$

Not available

WD-900-2100

Main Wiring Harness 1

$

$

Not available

$

$

Not available
