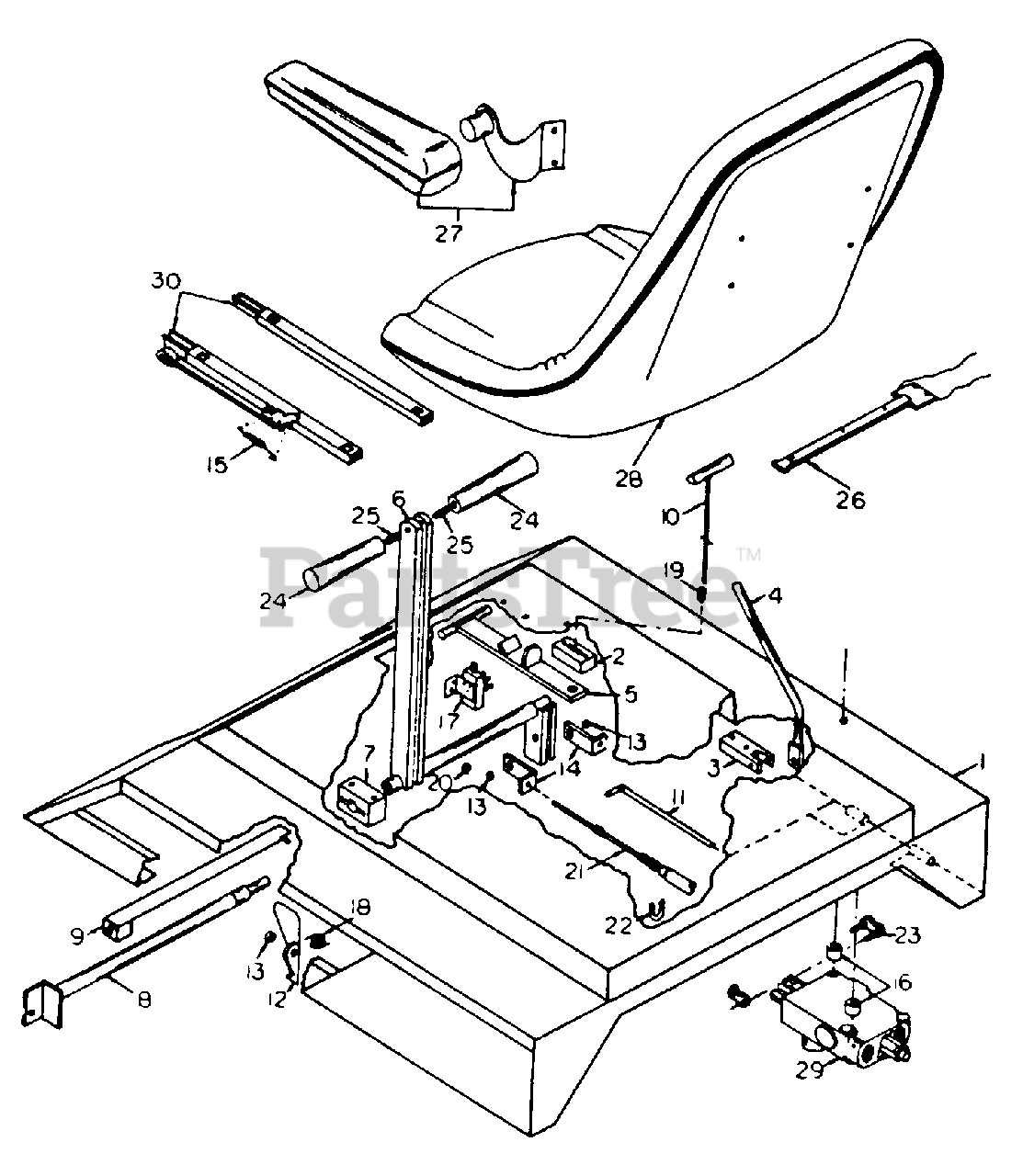

FR-2200 D (130-028-190) - White Outdoor Front-Mount Riding Mower (1990) Seat Lid Assembly Parts Diagram

Front-Mount Riding Mower

Seat Lid Assembly Parts Diagram

  • Title

1

WD-240-0005

Seat Lid

$

$

Not available

2

White Outdoor WD-240-0006

Lever Lock Block

$

$

Not available

3

WD-240-0007

Deck Lift Lever Mount

$

$

Not available

4

WD-240-0008

Deck Lift Lever

$

$

Not available

5

WD-240-0009

Lever Lock

$

$

Not available

6

WD-240-0037

Steering Levers

$

$

Not available

7

WD-240-0011

Steering Lever Block

$

$

Not available

8

WD-240-0014

Lid Prop

$

$

Not available

9

WD-240-0015

Lid Prop Lock

$

$

Not available

10

White Outdoor WD-240-0002

Lever Lock Handle

$

$

Not available

11

WD-240-0023

Seat Lid Pln

$

$

Not available

12

WD-240-0024

Sest Latch

$

$

Not available

13

White Outdoor WD-200-0014

Steerlng Cable Bushlng
(Superseded to WD-C42895)

$

$

Not available

14

White Outdoor WD-140-0023

Steering Cable End

$

$

Not available

15

White Outdoor WD-900-5767

Sprlng, Seat Rall

$

$

Not available

16

White Outdoor WD-111-0022

Spacer

$

$

Not available

17

White Outdoor WD-900-2029

Safety Switch

$

$

Not available

18

White Outdoor WD-900-5700

Spring

$

$

Not available

19

WD-900-5674

Spring

$

$

Not available

20

WD-900-5619

Grease Zerk

$

$

Not available

21

White Outdoor WD-900-5624

Steering Cable, 1/4"

$

$

Not available

22

White Outdoor WD-900-5625

Steering Cable Clamp, 1/4"

$

$

Not available

23

White Outdoor WD-900-1004

Connectlng Link, No. 50

$

$

Not available

24

White Outdoor WD-900-5627

Handle

$

$

Not available

25

WD-900-6094

Stud, 3/8"

$

$

Not available

26

White Outdoor WD-900-2001

Seat Switch

$

$

Not available

27

WD-190-869-190

Arm Rest

Note: (Optional)

$

$

Not available

28

WD-900-5648

Seat

$

$

Not available

29

White Outdoor WD-900-8000

Hydraulic Deck Valve

$

$

Not available

30

White Outdoor WD-900-5813

Seat Rail Kit

Note: (Palr)

$

$

Not available
