FR-2200 D (130-028-190) - White Outdoor Front-Mount Riding Mower (1990) Radiator Assembly Parts Diagram

Front-Mount Riding Mower

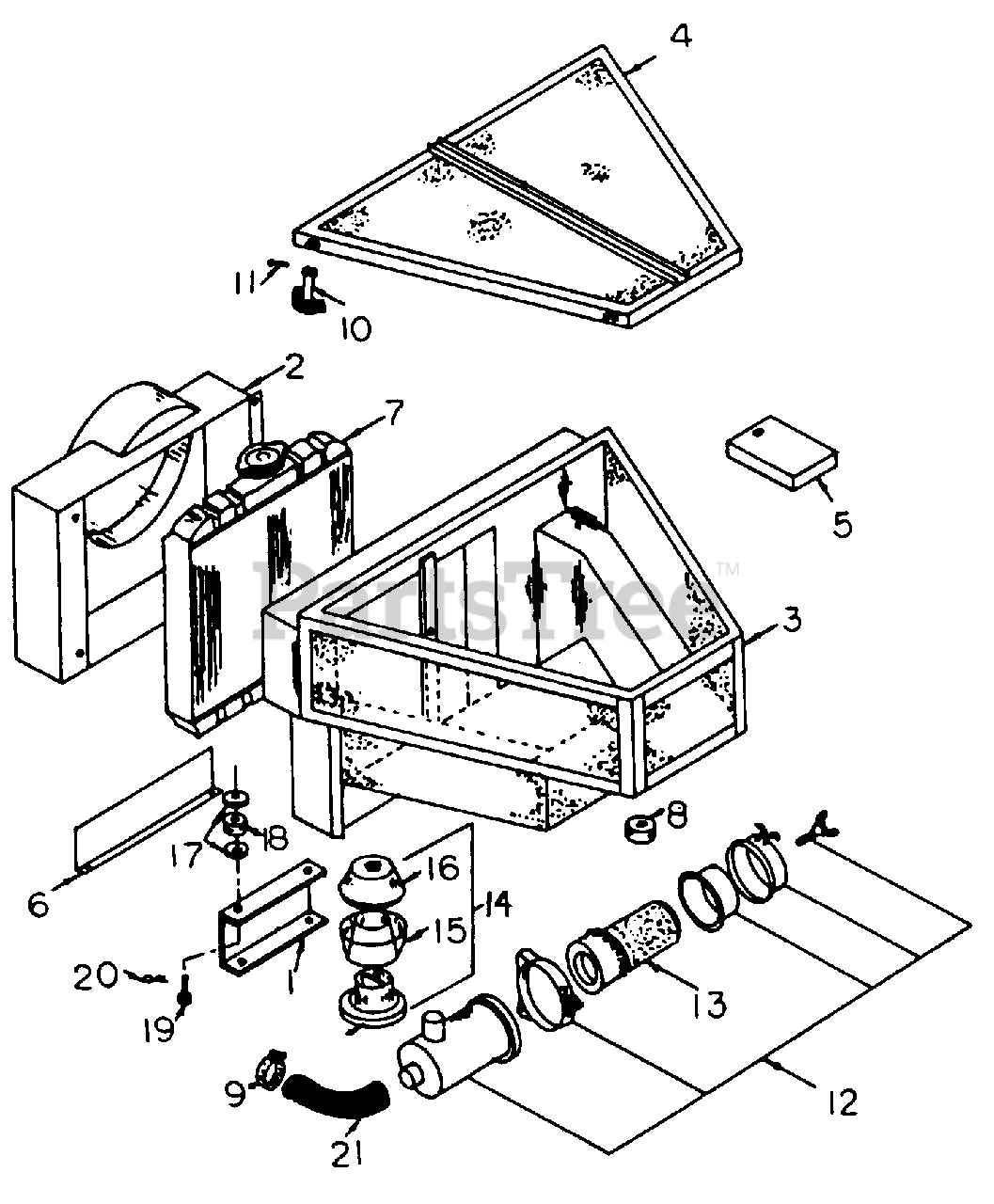

Radiator Assembly Parts Diagram

  • Title

1

WD-140-0006

Radlator Spaclng, 3 Cyl Only

$

$

Not available

2

WD-140-0054

Fan Shroud, 4 Cyl

$

$

Not available

WD-140-0053

Fan Shroud, 3 Cyl

$

$

Not available

3

WD-140-0026

Air Intake, Radiator 1

$

$

Not available

4

WD-140-0027

Air Intake, Lid

$

$

Not available

5

White Outdoor WD-140-0028

Air Intake, Axle Cover

$

$

Not available

6

WD-140-0039

Flll Plate, 3 Cyl

$

$

Not available

7

WD-900-7500

Radiator, 4 Cyl

$

$

Not available

WD-900-7501

Radiator, 3 Cyl

$

$

Not available

8

White Outdoor WD-900-5509

Rubber Mount

$

$

Not available

9

WD-900-5621

Hose Clamp, l" to 2"

$

$

Not available

10

White Outdoor WD-900-5622

Rubber Hold Down

$

$

Not available

11

WD-900-5623

Rubber Hold Down Pln

$

$

Not available

12

White Outdoor WD-900-7502

Air Cleaner Assembly

$

$

Not available

13

White Outdoor WD-900-7503

Air Cle-ner Element
(Superseded to KB-70000-11221)

$47.99

$

In Stock, only 1 left!

0

14

WD-900-7504

Precleaner Assembly

$

$

Not available

15

WD-900-7505

Prccleaner Bowl

$

$

Not available

16

WD-900-7506

Precleaner Lid

$

$

Not available

17

WD-900-7507

Rubber Pad Washer

$

$

Not available

18

WD-900-7508

Rubbr Pad

$

$

Not available

19

WD-900-7509

Ratlator Bolts

$

$

Not available

20

WD-900-7510

Hair Pins, Rad. Bolts

$

$

Not available

21

WD-900-7511

Air Cleaner Hose

$

$

Not available
