FR-2200 D (130-028-190) - White Outdoor Front-Mount Riding Mower (1990) Peerless Gearbox Parts Diagram

Front-Mount Riding Mower

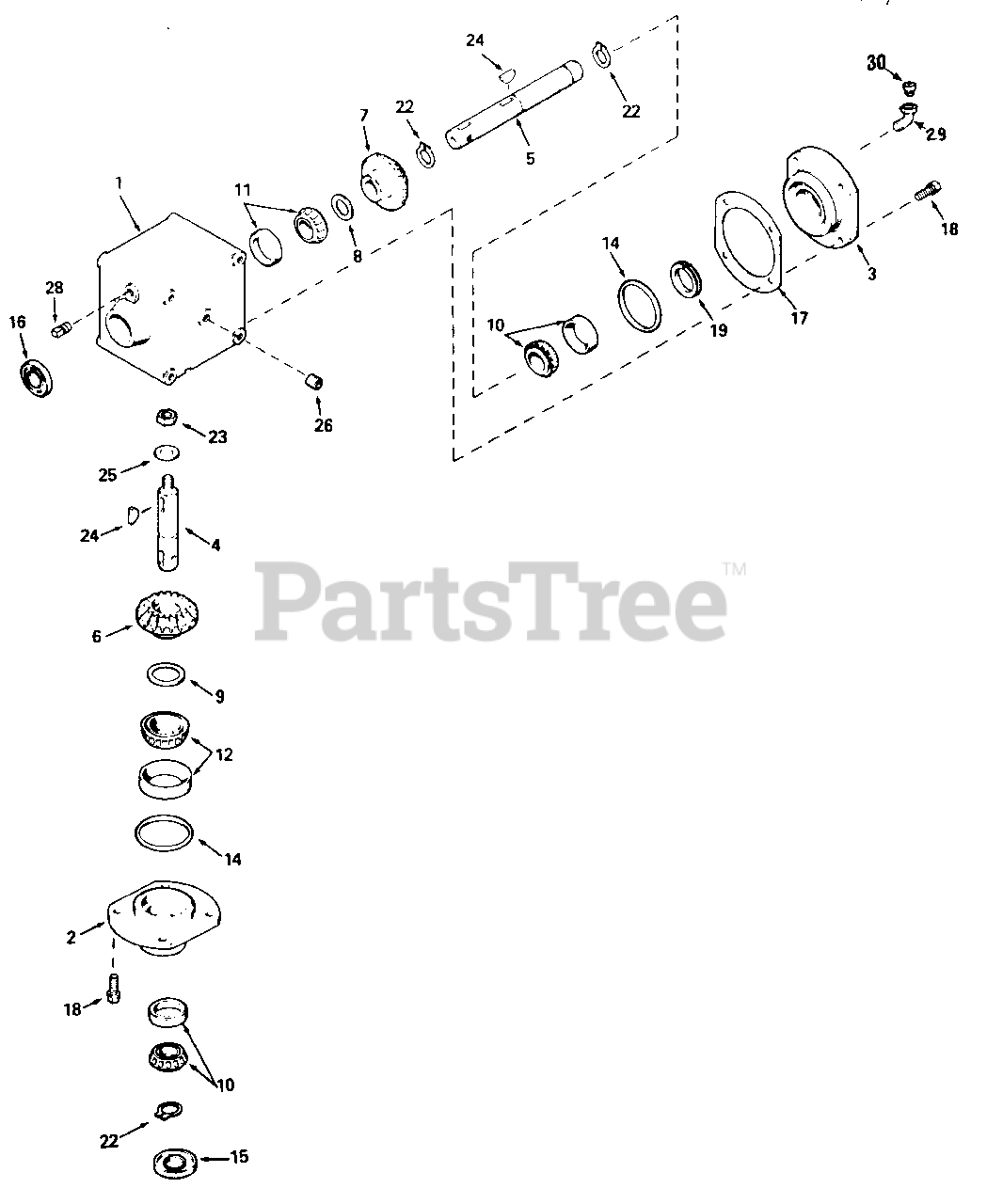

Peerless Gearbox Parts Diagram

  • Title

1

WD-900-7012

Housing

$

$

Not available

2

WD-900-7013

Retalner Cap

$

$

Not available

3

WD-900-7014

Retainer Cap

$

$

Not available

4

White Outdoor WD-900-7015

Input Shaft

$

$

Not available

5

WD-900-7016

Output Shaft

$

$

Not available

6

White Outdoor WD-900-7017

Bevel Gear, 25 Teeth

$

$

Not available

7

White Outdoor WD-900-7018

Bevel Gear, 926 Teeth

$

$

Not available

8

WD-900-7019

Shlm, 1 1/2" OD

Note: As Req'd.

$

$

Not available

9

WD-900-7020

ShLm, 2" OD

Note: As Req'd.

$

$

Not available

10

White Outdoor WD-900-7021

Bearing & Cup Assembly

$

$

Not available

11

White Outdoor WD-900-7022

Bearing & Cup Assembly

$

$

Not available

12

White Outdoor WD-900-7023

Bearing & Cup Assembly

$

$

Not available

14

White Outdoor WD-900-7024

O-ring

$

$

Not available

15

White Outdoor WD-900-7025

0i1 Seal

$

$

Not available

16

White Outdoor WD-900-7026

0i1 Seal

$

$

Not available

17

WD-900-7027

Cap Retalner Shim

$

$

Not available

18

WD-900-7028

Hex Screw, 5/16-18 x 1"

$

$

Not available

19

White Outdoor WD-900-7029

Load Rlng

$

$

Not available

22

White Outdoor WD-900-7030

Retaining Rlng
(Superseded to 716-0127)

$12.99

$

Usually ships in 3-6 days

0

23

White Outdoor WD-900-7031

Jam Nut, 3/4-16

$

$

Not available

24

WD-900-6171

Woodruff Key

$

$

Not available

25

WD-900-7033

Flatwasher

$

$

Not available

26

WD-900-7034

Pipe Plug, 1/4-18 0

$

$

Not available

28

White Outdoor WD-900-7035

Pipe Plug, 1/8-27 0

$

$

Not available

29

WD-900-5020

Street Elbow, 1/8" x 90ø

$

$

Not available

30

White Outdoor WD-900-7004

Relief Valve

$

$

Not available
