FR-2200 D (130-028-190) - White Outdoor Front-Mount Riding Mower (1990) Lift Cylinder, Valve & Filter Assembly Parts Diagram

Front-Mount Riding Mower

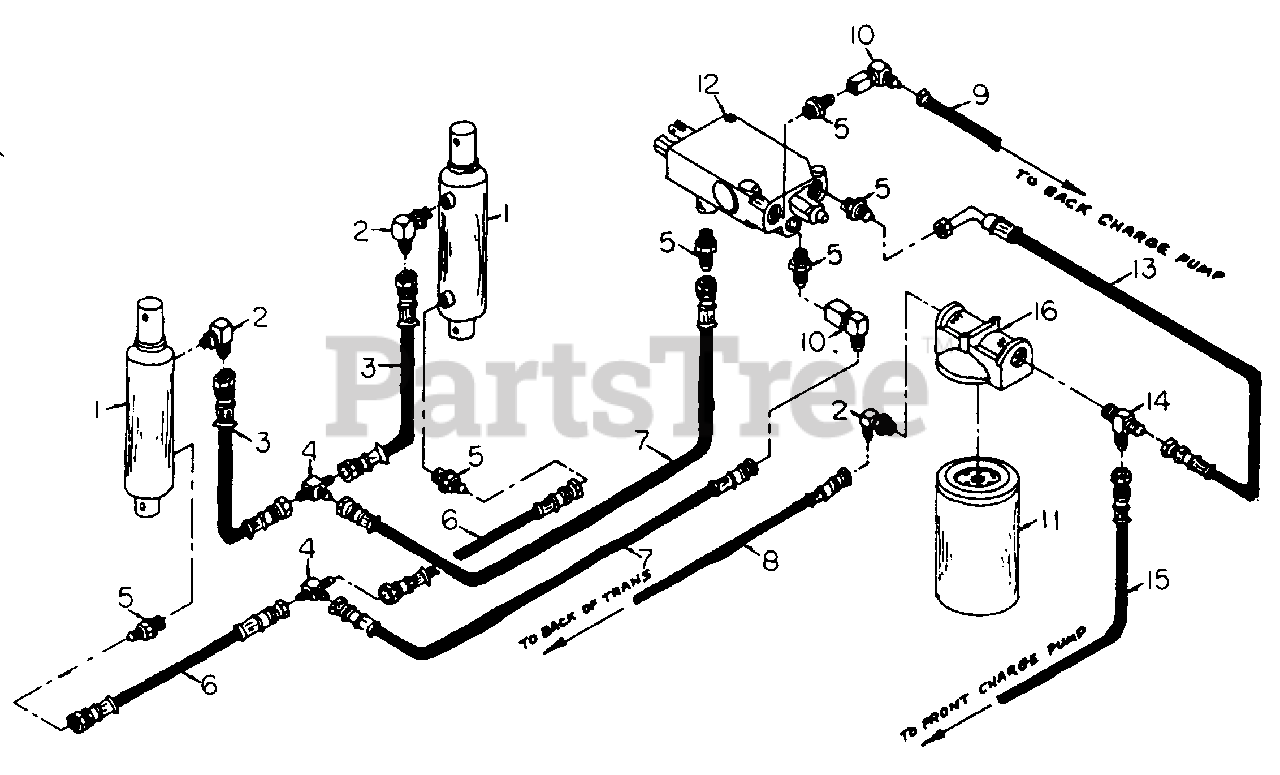

Lift Cylinder, Valve & Filter Assembly Parts Diagram

  • Title

1

WD-900-8051

Lift Cylinder

$

$

Not available

2

WD-900-8097

Male Tube, 90ø Adj. O-ring Adpt.

$

$

Not available

3

WD-900-8154

Hose, 3/8" x 12 1/2, Long

$

$

Not available

4

WD-900-8138

Male Tub Tee

$

$

Not available

5

White Outdoor WD-900-8094

Male Tube, Male O-ring Adpt.

$

$

Not available

6

WD-900-8156

Hose, 3/8" x 9" Long

$

$

Not available

7

WD-900-8155

Hose 3/8" x 52" Long

$

$

Not available

8

WD-900-8105

Hose, 3/8" x 11 1/2" Long

$

$

Not available

9

WD-900-8157

Hose, 3/8" x 42" Long

$

$

Not available

10

White Outdoor WD-900-8121

Male Tube, 90ø Female Swivel Adpt.

$

$

Not available

11

White Outdoor WD-900-8073

Filter Element
(Superseded to WD-C37637)

$61.99

$

Usually ships in 3-6 days

0

12

White Outdoor WD-900-8000

Valve Assembly

$

$

Not available

13

WD-900-8104

Hose, 3/8" x 21" Long

$

$

Not available

14

WD-900-8147

Male Tube, Male O-ring Tee

$

$

Not available

15

White Outdoor WD-900-8106

Hose, 3/8" x 30" Long

$

$

Not available

16

White Outdoor WD-900-8072

Housing, Oil Filter
(Superseded to WD-C37636)

$

$

Not available
