FR-2200 D (130-028-190) - White Outdoor Front-Mount Riding Mower (1990) Fuel Tank Assembly Parts Diagram

Front-Mount Riding Mower

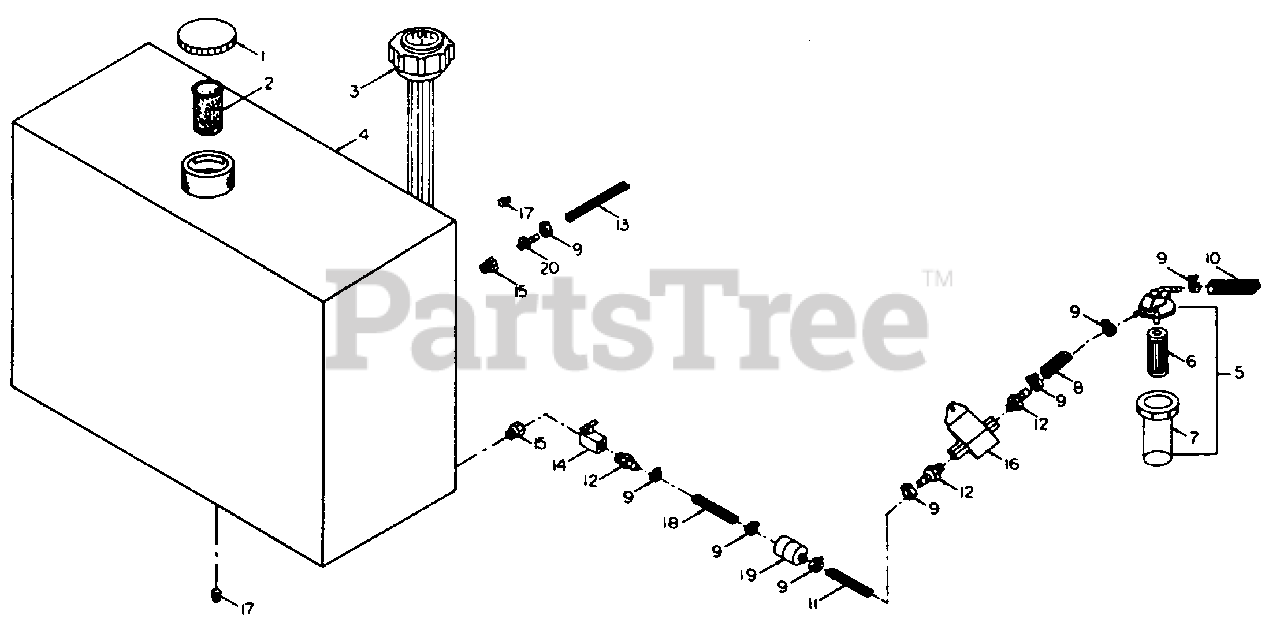

Fuel Tank Assembly Parts Diagram

  • Title

1

White Outdoor WD-900-5670

Fuel Tank Cap

$

$

Not available

2

White Outdoor WD-900-5669

Fuel Tank Screen

$

$

Not available

3

White Outdoor WD-900-5701

Fuel Tank Cap w/Gauge

$

$

Not available

4

WD-140-0043

Fuel Tank

$

$

Not available

5

White Outdoor WD-900-7513

Fuel Filter Ass'y., Diesel Only
(Superseded to KB-1G313-43010)

$114.99

$

Usually ships in 3-6 days

0

6

White Outdoor WD-900-7516

Fuel Filter Element
(Superseded to KB-1T021-43560)

$

$

Not available

7

WD-900-7515

Fuel Filter Bowl

$

$

Not available

8

WD-900-5684

Fuel Line, 5/16" x 3-1/2"

$

$

Not available

9

White Outdoor WD-900-5657

Hose Clamp, 3/8" 10

$

$

Not available

10

WD-900-5665

Fuel Line, 5/16" x 30"

$

$

Not available

11

WD-900-5685

Fuel Line, 5/16" x 6"

$

$

Not available

12

WD-900-5662

Male Pipe, 1/8", Barb Adpt., 5/16

$

$

Not available

13

WD-900-5663

Fuel Return Line, 3/16", Diesel

$

$

Not available

14

WD-900-5656

Brass Shutoff Valve, 1/8"

$

$

Not available

15

WD-900-5725

Male Pipe, 3/8", Female Pipe Adpt., 1/8"

$

$

Not available

16

WD-900-2059

Electric Fuel Pump, Diesel

$

$

Not available

White Outdoor WD-900-2064

Electric Fuel Pump, Gas
(Superseded to KB-EG601-52034)

$279.99

$

Usually ships in 3-6 days

0

17

White Outdoor WD-900-8024

Pipe Plug, 3/8", Diesel

$

$

Not available

White Outdoor WD-900-8024

Pipe Plug, 3/8" Gas

$

$

Not available

18

WD-900-5664

Fuel Line, 5/16" x 2"

$

$

Not available

19

White Outdoor WD-900-5668

Inline Fuel Filter, 5/16"

$

$

Not available

20

WD-900-5656

Male Pipe, 1/8", Barb Adpt., 3/16", Diesel

$

$

Not available
