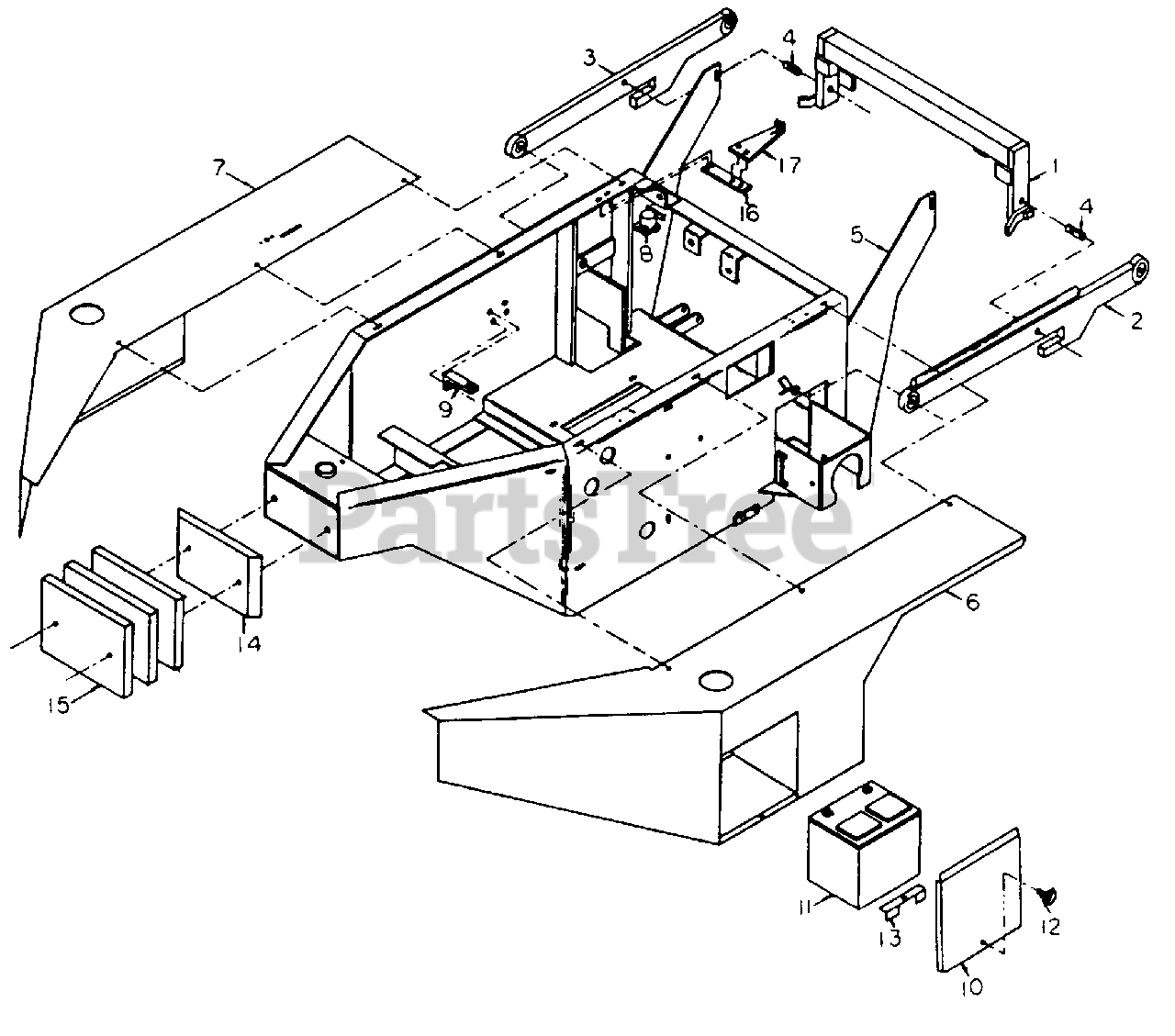

FR-2200 D (130-028-190) - White Outdoor Front-Mount Riding Mower (1990) Frame Assembly Parts Diagram

Front-Mount Riding Mower

Frame Assembly Parts Diagram

  • Title

$

$

Not available

2

White Outdoor WD-140-0033

Deck Llft Arm, RH

$

$

Not available

3

White Outdoor WD-140-0034

Deck Llft Arm, LH

$

$

Not available

4

White Outdoor WD-140-0036

Llft Bar Bushlng

$

$

Not available

5

WD-140-0064

Base

$

$

Not available

6

WD-240-0031

Fender, RH

$

$

Not available

$

$

Not available

$

$

Not available

9

WD-140-0022

Ihrottle Bracket

$

$

Not available

10

White Outdoor WD-240-0032

Battery Box Lid

$

$

Not available

11

WD-900-2043

Battery

$

$

Not available

12

$

$

Not available

13

WD-240-0027

Battery Hold Down

$

$

Not available

14

WD-240-0022

Tail Cap

$

$

Not available

15

$

$

Not available

16

WD-140-0060

Mount, Fuel Shutoff Valve

$

$

Not available

17

WD-140-0052

Retalner, Fuel Shutoff Valve

$

$

Not available
