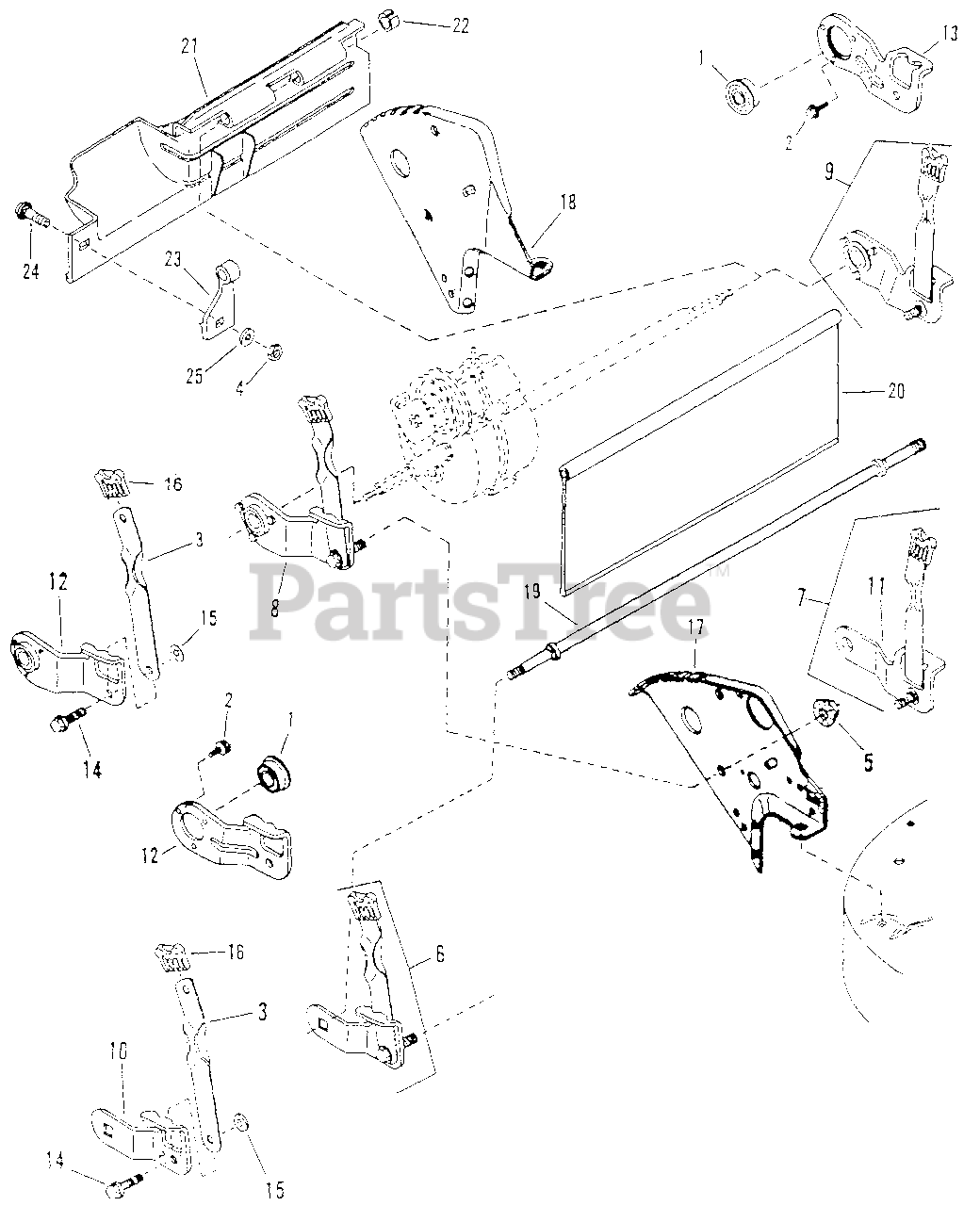

FR 215012 (82460) - Snapper 21" Walk-Behind Mower, 5hp Rear Wheel Brackets, Latches Parts Diagram

21" Walk-Behind Mower, 5hp

Rear Wheel Brackets, Latches Parts Diagram

  • Title

1

Snapper 7012312

BEARING, 9/16" V21
(Superseded to 7012312YP)

$11.99

$

In Stock, Qty 20+

0

2

Snapper 7091012

SCREW, #10-32 x 3/8" Hex Washer Self-Tap (Torx)
(Superseded to 703967)

$3.49

$

In Stock, Qty 20+

0

3

Snapper 7035717

LATCH, Height Adjusting (Long)
(Superseded to 7035717YP)

$6.99

$

In Stock, Qty 10

0

4

Snapper 7091576

NUT, 1/4-20 Hex, Grade 5
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 20+

0

5

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

6

Snapper 7054228

ASSEMBLY, Wheel Arm
(Superseded to 7054228YP)

Note: (Right Rear) (Push Models) (Round Opening - Includes Items 3, 10, 14, 15, 16)

$

$

Not available

7

Snapper 7054229

ASSEMBLY,
(Superseded to 7053019YP)

Note: Wheel Arm (Left Rear) (Push Models) (Square Opening - Includes Items 3, 11, 14, 15, 16)

$34.99

$

Usually ships in 2-12 days

0

8

Snapper 7054230

ASSEMBLY, Wheel Arm (Right Rear)
(Superseded to 7054246YP)

Note: Was 54230 (Self-Propelled Models)(Includes 1, 2, 3, 12, 15, & 16)

$

$

Not available

9

Snapper 7054247

ASSEMBLY, Wheel Arm (Left Rear)
(Superseded to 7054247YP)

Note: Was 54231 (Self-Propelled Models)(Includes 1, 2, 3, 13, 15, & 16)

$40.99

$

In Stock, Qty 9

0

10

Snapper 7033776

ARM, Round Axle End
(Superseded to 7033776YP)

Note: (Right Rear) (Push Models)

$8.49

$

In Stock, only 1 left!

0

11

Snapper 7033775

ARM, Square Axle End

Note: (Left Rear) (Push Models)

$

$

Not available

12

Snapper 7032722

ARM, Wheel Right Rear
(Superseded to 7032722YP)

Note: (Self-Propelled Models)

$

$

Not available

13

Snapper 7032723

ARM, Wheel Left Rear
(Superseded to 7032723YP)

Note: (Self-Propelled Models)

$6.49

$

In Stock, Qty 8

0

14

Snapper 7011078

BOLT, 5/16-18 x 1" Shoulder
(Superseded to 703840)

$5.49

$

In Stock, only 2 left!

0

15

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

16

Snapper 7027702

GRIP, Latch
(Superseded to 7103793YP)

$4.49

$

In Stock, Qty 9

0

17

Snapper 7033494

BRACKET, Right Rear Wheel
(Superseded to 7033494YP)

$41.99

$

Usually ships in 2-12 days

0

18

Snapper 7033495

BRACKET, Left Rear Wheel
(Superseded to 7033495YP)

$19.99

$

Usually ships in 2-12 days

0

19

Snapper 7021119

AXLE
(Superseded to 7021119YP)

Note: (Rear on Push Models - Also Front on All)

$22.99

$

In Stock, Qty 18

0

20

Snapper 7035741

GUARD, Rear Foot
(Superseded to 7035741YP)

Note: (Push Models)

$49.99

$

Usually ships in 2-12 days

0

21

Snapper 7029008

GUARD, Rear Foot
(Superseded to 7029008YP)

Note: (Self-Propelled Models)

$32.99

$

In Stock, Qty 11

0

22

Snapper 7023791

RING
(Superseded to 704009)

$3.99

$

Usually ships in 2-12 days

0

23

Snapper 7012616

SUPPORT, Foot Guard
(Superseded to 7012616YP)

$4.99

$

In Stock, Qty 5

0

24

Snapper 7091604

BOLT, 1/4-20 x 1/2" Short Neck Carriage, Grade 5
(Superseded to 703978)

Note: Was 90005

$3.99

$

In Stock, Qty 20+

0

25

Snapper 7090053

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

Note: Was 91023

$4.49

$

In Stock, Qty 7

0
