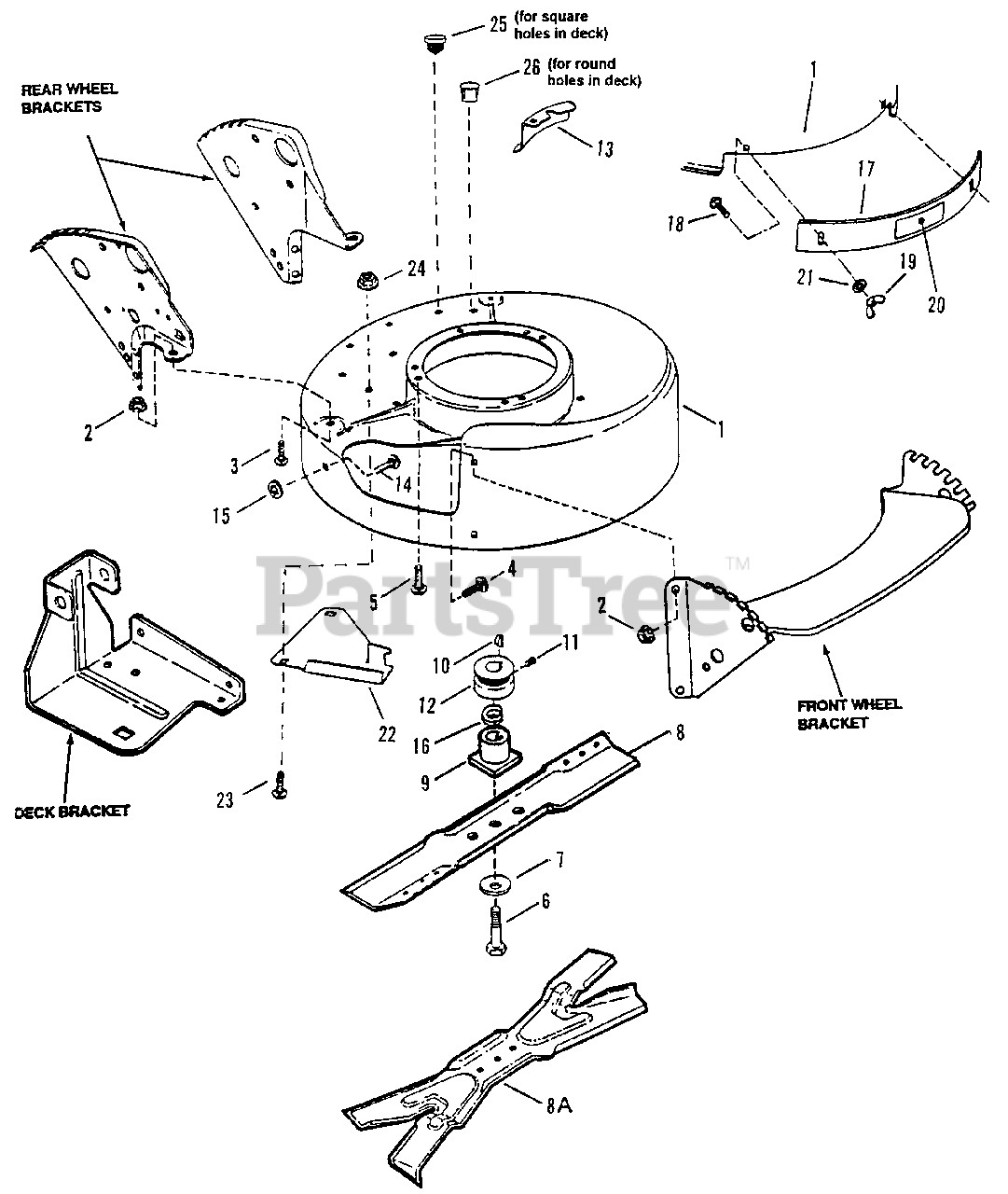

FR 215012 (82460) - Snapper 21" Walk-Behind Mower, 5hp Cutting Deck, Blade Parts Diagram

21" Walk-Behind Mower, 5hp

Cutting Deck, Blade Parts Diagram

  • Title

1

Snapper 7058540

DECK, Mower
(Superseded to 7600034DYP)

Note: Was 53952 (Includes painted Deck with Decals)

$359.99

$

Usually ships in 2-12 days

0

2

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

3

Snapper 7090731

BOLT, 5/16-18 x 1/2" Short Neck Carriage (Gr. 5)
(Superseded to 703798)

$4.49

$

In Stock, Qty 7

0

4

Snapper 7091169

BOLT, Bolt 5/16-18 x 1-1/8" Short Neck Carriage, Grade 5
(Superseded to 704002)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 7090324

SCREW, 3/8-16 x 1" Self-Tapping (Engine Mounting)
(Superseded to 704000)

$4.99

$

In Stock, only 1 left!

0

6

Snapper 7090167

SCREW, 3/8-24 x 2" Hex Head Cap, Grade 5 (Self-Prop)
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

Snapper 7090483

SCREW, 3/8-24 x 1-3/4" Hex Head Cap, Grade 5 (Push)
(Superseded to 703866)

$4.49

$

In Stock, only 1 left!

0

7

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

8

Snapper 7017168

BLADE, Cutter - Mulcher (Push)
(Superseded to 7041939BZYP)

$29.99

$

In Stock, only 1 left!

0

8A

Snapper 7026407

BLADE, Cutter Quad Edge - Ninja (Self-Prop)
(Superseded to 7026407AYP)

$54.99

$

Usually ships in 2-12 days

0

9

Snapper 7015626

HUB, Blade Drive 25mm
(Superseded to 7015626YP)

$15.99

$

In Stock, only 1 left!

0

10

Snapper 7015894

KEY, Woodruff #506 Briggs (Self-Prop)
(Superseded to 7015894SM)

$3.49

$

In Stock, Qty 7

0

11

Snapper 7090201

SCREW, 5/16-18 x 5/16" Hex Socket Set (Self-Prop)
(Superseded to 7090201SM)

$

$

Not available

12

Snapper 7015780

PULLEY, Engine (25mm I.D. x 2-1/8" O.D.) (Self-Prop)
(Superseded to 7015780YP)

$30.99

$

Usually ships in 2-12 days

0

13

Snapper 7031968

SHIELD, Belt Opening Cover (Push)

$

$

Not available

14

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 16

0

15

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

16

Snapper 7029000

SPACER, Blade Hub
(Superseded to 7029000YP)

$15.99

$

Usually ships in 2-12 days

0

17

Snapper 7043851

BAFFLE, Front

Note: Was 34870

$

$

Not available

18

Snapper 7090316

BOLT, 5/16-18 x 1-3/4" Carriage, Grade.5
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

19

Snapper 7091601

NUT, 5/16-18 Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

20

Snapper 7029193

DECAL, Front Baffle
(Superseded to 7029193YP)

$7.99

$

Usually ships in 2-12 days

0

21

Snapper 7090189

WASHER, 5/16" Internal External Tooth Lock
(Superseded to 703936)

$4.49

$

In Stock, only 2 left!

0

22

Snapper 7046446

BAFFLE, Belt
(Superseded to 7046446YP)

$36.99

$

Usually ships in 2-12 days

0

23

Snapper 7090731

BOLT, 5/16-18 x 1/2" Neck Carriage, Grade 5
(Superseded to 703798)

$4.49

$

In Stock, Qty 7

0

24

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

25

Snapper 7046471

PLUG, 5/16" Square Hole
(Superseded to 7046471YP)

Note: (Qty 3 on Push)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper 7045264

PLUG, 5/16" Hole
(Superseded to 7045264YP)

Note: (Qty 3 on Push; qty 2 on Self-propelled)

$3.99

$

Usually ships in 2-12 days

0
