FR 2116 MA 4x4 (965094901) - Jonsered Rear-Engine Riding Mower (2007-01) 44 /112CM CUTTING DECK Parts Diagram

Rear-Engine Riding Mower

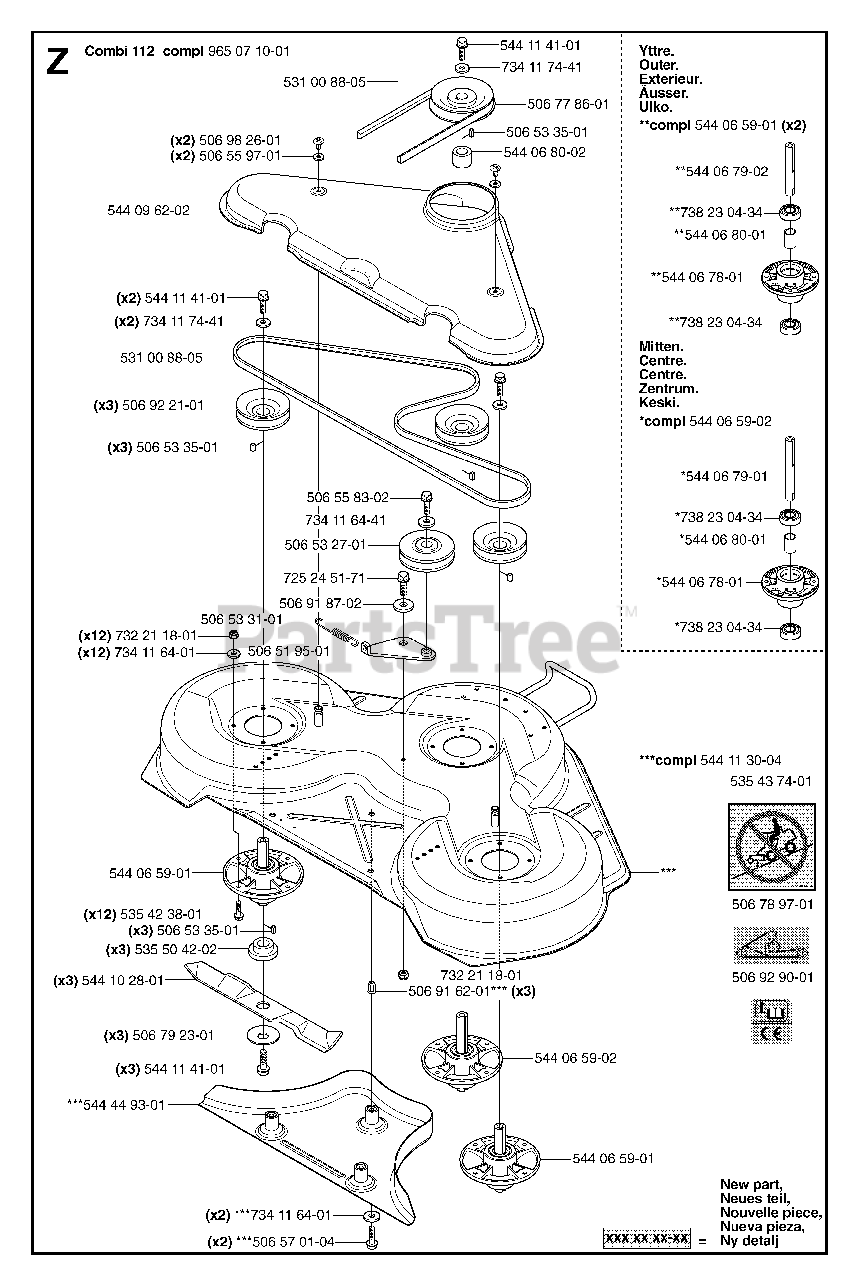

44 /112CM CUTTING DECK Parts Diagram

  • Title

9650710-01

Jonsered 965071001

No Description Available

$

$

Not available

5310088-05

Jonsered 531008805

No Description Available

$

$

Not available

5069826-01

Jonsered 506982601

SCREW

$6.99

$

In Stock, Qty 6

0

5065597-01

Jonsered 506559701

WASHER

$5.99

$

In Stock, only 4 left!

0

5440962-02

Jonsered 544096202

No Description Available

$

$

Not available

5441141-01

Jonsered 544114101

SCREW

$4.99

$

In Stock, Qty 8

0

7341174-41

Jonsered 734117441

WASHER

$4.99

$

In Stock, only 1 left!

0

5310088-05

Jonsered 531008805

No Description Available

$

$

Not available

5069221-01

Jonsered 506922101

PULLEY

$39.99

$

In Stock, only 1 left!

0

5065335-01

Jonsered 506533501

KEY

$6.49

$

Usually ships in 3-10 days

0

5065583-02

Jonsered 506558302

BOLT

$4.99

$

In Stock, only 1 left!

0

7341164-41

Jonsered 734116441

SPACER

$4.99

$

Usually ships in 3-10 days

0

5065327-01

Jonsered 506532701

PULLEY

$45.99

$

In Stock, only 1 left!

0

7252451-71

Jonsered 725245171

SCREW

$1.49

$

In Stock, Qty 5

0

5069187-02

Jonsered 506918702

WASHER
(Superseded to 584288601)

$

$

Not available

5065331-01

Jonsered 506533101

SPRING

$11.99

$

Usually ships in 3-10 days

0

7322118-01

Jonsered 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

7341164-01

Jonsered 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

5065195-01

Jonsered 506519501

BELT TENSIONING ARM

$91.99

$

Usually ships in 3-10 days

0

5440659-01

Jonsered 544065901

RP SPINDLE ASSY
(Superseded to 576384102)

$91.99

$

Usually ships in 3-10 days

0

5354238-01

Jonsered 535423801

BOLT

$5.99

$

Usually ships in 3-10 days

0

5065335-01

Jonsered 506533501

KEY

$6.49

$

Usually ships in 3-10 days

0

5355042-02

Jonsered 535504202

ADAPTER

$22.99

$

Usually ships in 3-10 days

0

5441028-01

Jonsered 544102801

BLADE
(Superseded to 504188101)

$37.99

$

Usually ships in 3-10 days

0

5067923-01

Jonsered 506792301

WASHER

$

$

Not available

5441141-01

Jonsered 544114101

SCREW

$4.99

$

In Stock, Qty 8

0

5444493-01

Jonsered 544449301

PLUG

$79.99

$

Usually ships in 3-10 days

0

7341164-01

Jonsered 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

5065701-04

Jonsered 506570104

BOLT

$6.49

$

In Stock, only 1 left!

0

5440659-01

Jonsered 544065901

RP SPINDLE ASSY
(Superseded to 576384102)

$91.99

$

Usually ships in 3-10 days

0

5440659-02

Jonsered 544065902

RP SPINDLE ASSY
(Superseded to 576384101)

$96.99

$

In Stock, only 1 left!

0

5069162-01

Jonsered 506916201

NUT

$7.49

$

Usually ships in 3-10 days

0

7322118-01

Jonsered 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

5069290-01

Jonsered 506929001

DECAL

$7.49

$

In Stock, only 1 left!

0

5067897-01

Jonsered 506789701

DECAL

$

$

Not available

5354374-01

Jonsered 535437401

DECAL

$

$

Not available

5441130-04

Jonsered 544113004

No Description Available

$

$

Not available

7382304-34

Jonsered 738230434

BEARING

$20.99

$

Usually ships in 3-10 days

0

5440678-01

Jonsered 544067801

BEARING HOUSING

$

$

Not available

5440680-01

Jonsered 544068001

SPACER

$

$

Not available

7382304-34

Jonsered 738230434

BEARING

$20.99

$

Usually ships in 3-10 days

0

5440679-01

Jonsered 544067901

SHAFT

$

$

Not available

5440659-02

Jonsered 544065902

RP SPINDLE ASSY
(Superseded to 576384101)

$96.99

$

In Stock, only 1 left!

0

7382304-34

Jonsered 738230434

BEARING

$20.99

$

Usually ships in 3-10 days

0

5440678-01

Jonsered 544067801

BEARING HOUSING

$

$

Not available

5440680-01

Jonsered 544068001

SPACER

$

$

Not available

7382304-34

Jonsered 738230434

BEARING

$20.99

$

Usually ships in 3-10 days

0

5440679-02

Jonsered 544067902

SHAFT

$

$

Not available

5440659-01

Jonsered 544065901

RP SPINDLE ASSY
(Superseded to 576384102)

$91.99

$

Usually ships in 3-10 days

0

5440680-02

Jonsered 544068002

SPACER

$11.99

$

In Stock, only 3 left!

0

5065335-01

Jonsered 506533501

KEY

$6.49

$

Usually ships in 3-10 days

0

5067786-01

Jonsered 506778601

PULLEY

$56.99

$

Usually ships in 3-10 days

0

7341174-41

Jonsered 734117441

WASHER

$4.99

$

In Stock, only 1 left!

0

5441141-01

Jonsered 544114101

SCREW

$4.99

$

In Stock, Qty 8

0
