FR 2113 MA (953535301) - Jonsered Rear-Engine Riding Mower (2004-01) 90CM CUTTING DECK Parts Diagram

Rear-Engine Riding Mower

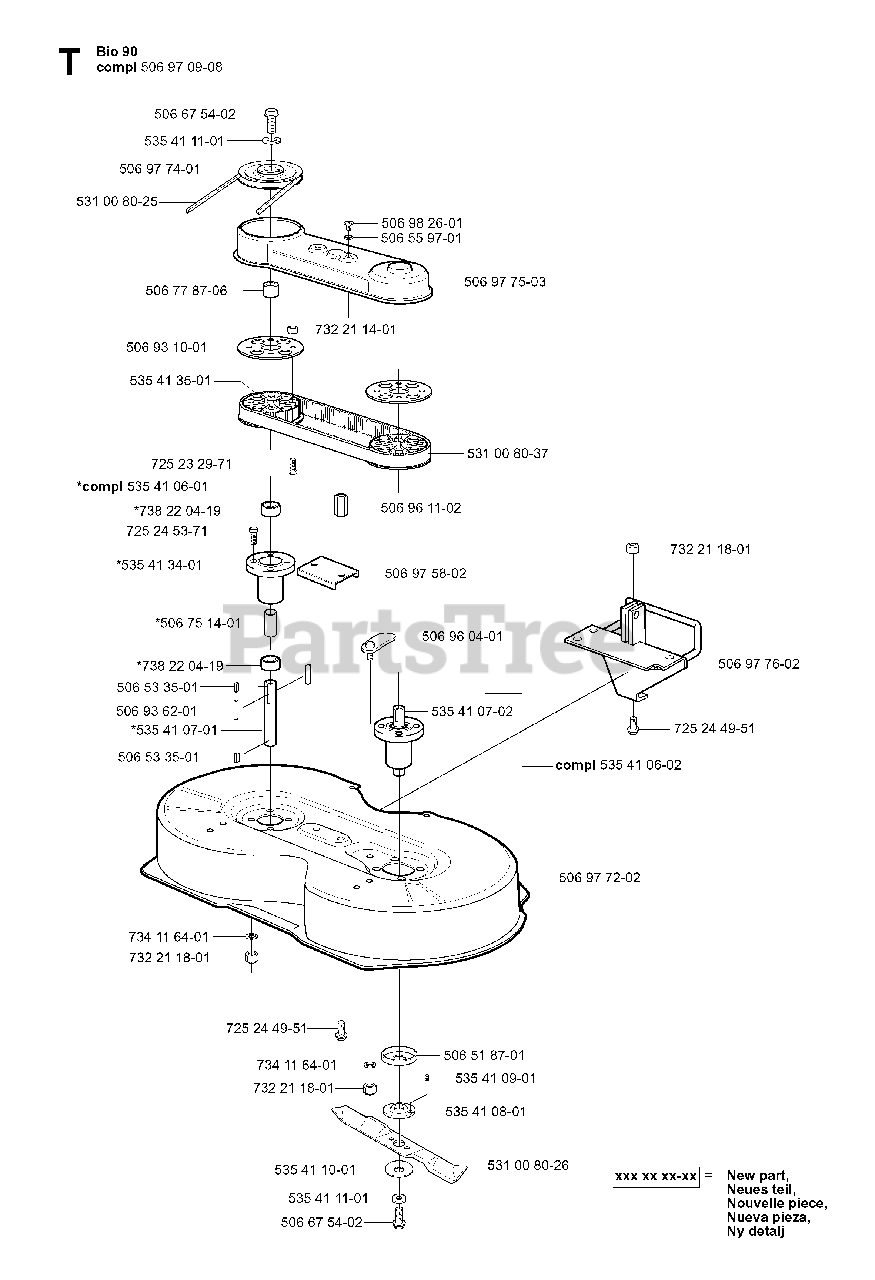

90CM CUTTING DECK Parts Diagram

  • Title
5069709-08

Jonsered 506970908

No Description Available

Note: BIO 90

$

$

Not available

5066754-02

$6.99

$

In Stock, only 3 left!

0

5354111-01

$

$

Not available

5069774-01

$

$

Not available

5310080-25

Jonsered 531008025

No Description Available
(Superseded to 589532201)

$54.99

$

Usually ships in 3-10 days

0

5067787-06

$

$

Not available

5069310-01

$

$

Not available

5354135-01

$

$

Not available

7252329-71

$3.49

$

In Stock, Qty 6

0

5354106-01

Jonsered 535410601

MANDREL ASSY.

$

$

Not available

7382204-19

Jonsered 738220419

BALL-BEARING 6204-2RS

$17.99

$

In Stock, only 2 left!

0

7252453-71

$5.99

$

Usually ships in 3-10 days

0

5354134-01

Jonsered 535413401

BEARING HOUSING

$

$

Not available

5067514-01

$

$

Not available

7382204-19

Jonsered 738220419

BALL-BEARING 6204-2RS

$17.99

$

In Stock, only 2 left!

0

5065335-01

$6.49

$

Usually ships in 3-10 days

0

5069362-01

$

$

Not available

5354107-01

$

$

Not available

5065335-01

$6.49

$

Usually ships in 3-10 days

0

7341164-01

Jonsered 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

7322118-01

Jonsered 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

7252449-51

Jonsered 725244951

BOLT - M8X16

$3.49

$

In Stock, only 2 left!

0

7341164-01

Jonsered 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

7322118-01

Jonsered 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

5354110-01

$12.99

$

Usually ships in 3-10 days

0

5354111-01

$

$

Not available

5066754-02

$6.99

$

In Stock, only 3 left!

0

5310080-26

Jonsered 531008026

No Description Available

$

$

Not available

5354108-01

$

$

Not available

5354109-01

$

$

Not available

5065187-01

Jonsered 506518701

BEARING COVER

$

$

Not available

5069772-02

Jonsered 506977202

No Description Available

$

$

Not available

5354106-02

$

$

Not available

7252449-51

Jonsered 725244951

BOLT - M8X16

$3.49

$

In Stock, only 2 left!

0

5069776-02

$

$

Not available

7322118-01

Jonsered 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

5354107-02

$

$

Not available

5069604-01

Jonsered 506960401

ECCENTRIC

$

$

Not available

5069758-02

$

$

Not available

5069611-02

$

$

Not available

5310080-37

Jonsered 531008037

No Description Available

$

$

Not available

7322114-01

Jonsered 732211401

LOCKNUT M5

$6.49

$

In Stock, Qty 7

0

5069775-03

Jonsered 506977503

COVER
(Superseded to 535433803)

$

$

Not available

5065597-01

$5.99

$

In Stock, only 4 left!

0

5069826-01

$6.99

$

In Stock, Qty 6

0
