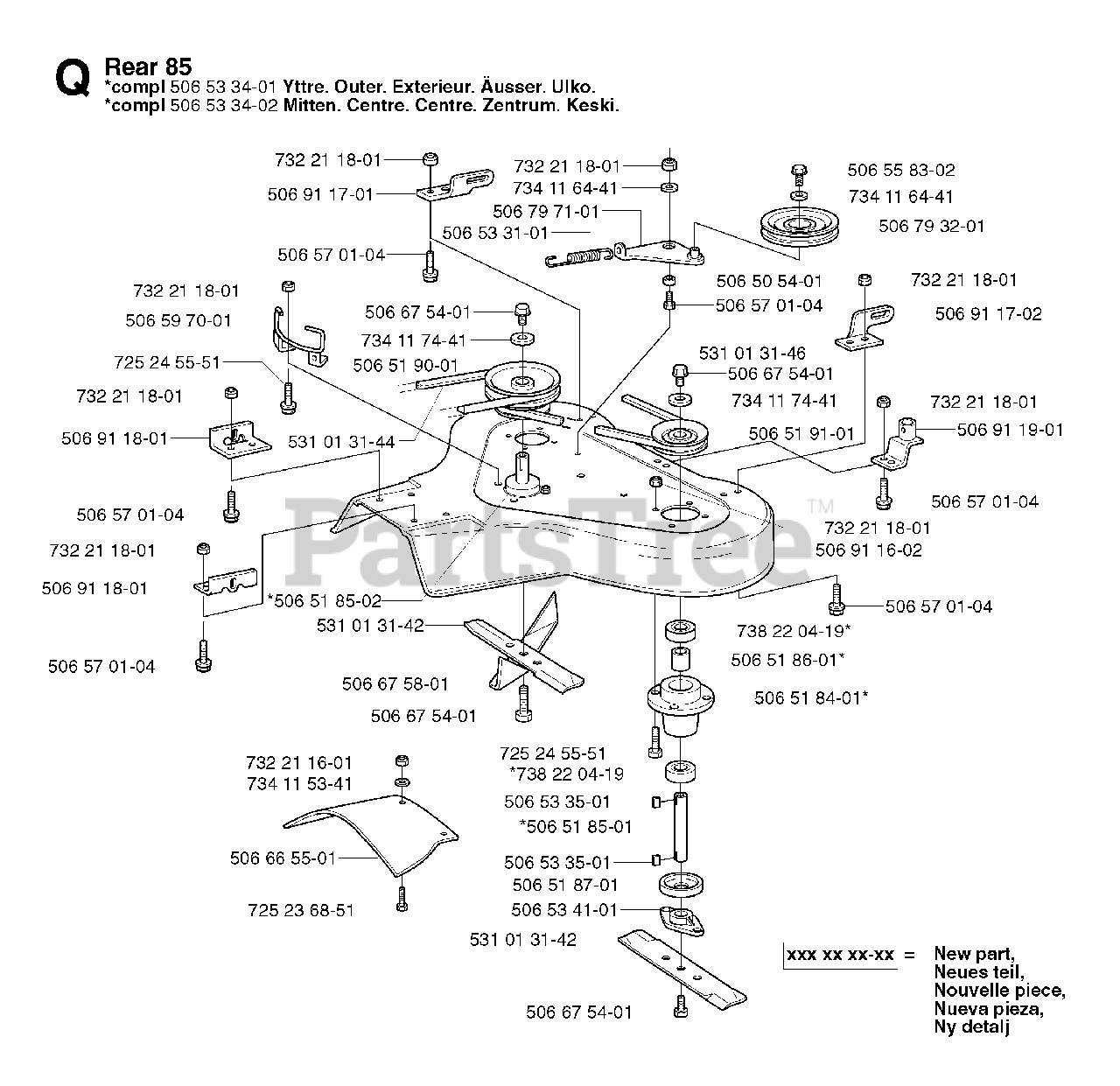

FR 2113 A - Jonsered Rear-Engine Riding Mower (2003-01) 85CM CUTTING DECK Parts Diagram

Rear-Engine Riding Mower

85CM CUTTING DECK Parts Diagram

  • Title
5065334-01

Jonsered 506533401

BLADE BEARING CPL

Note: YTTRE

$

$

Not available

5065334-02

Jonsered 506533402

BLADE BEARING CPL

Note: MITTEN

$

$

Not available

7322118-01

Jonsered 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

5069117-01

$

$

Not available

5065701-04

$6.49

$

In Stock, only 1 left!

0

7322118-01

Jonsered 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

5065970-01

Jonsered 506597001

BELT TENSIONER

$

$

Not available

7252455-51

$

$

Not available

7322118-01

Jonsered 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

5069118-01

$

$

Not available

5065701-04

$6.49

$

In Stock, only 1 left!

0

7322118-01

Jonsered 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

5069118-01

$

$

Not available

5065701-04

$6.49

$

In Stock, only 1 left!

0

7252368-51

$

$

Not available

5066655-01

Jonsered 506665501

SPLASH GUARD

$

$

Not available

7341153-41

$

$

Not available

7322116-01

Jonsered 732211601

LOCKNUT M6

$5.99

$

In Stock, only 1 left!

0

5066754-01

$5.99

$

In Stock, only 1 left!

0

5066758-01

Jonsered 506675801

SPREADER BLADE

$

$

Not available

5310131-42

Jonsered 531013142

No Description Available

$

$

Not available

5065185-02

Jonsered 506518502

CENTRE SHAFT

$

$

Not available

5310131-44

Jonsered 531013144

No Description Available
(Superseded to 589531601)

$

$

Not available

5065190-01

Jonsered 506519001

DOUBLE PULLEY ASSY

$

$

Not available

7341174-41

$4.99

$

In Stock, only 2 left!

0

5066754-01

$5.99

$

In Stock, only 1 left!

0

7322118-01

Jonsered 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

7341164-41

$4.99

$

Usually ships in 3-10 days

0

5067971-01

$26.99

$

Usually ships in 3-10 days

0

5065331-01

$11.99

$

Usually ships in 3-10 days

0

7252455-51

$

$

Not available

7382204-19

Jonsered 738220419

BALL-BEARING 6204-2RS

$17.99

$

In Stock, only 2 left!

0

5065335-01

$6.49

$

Usually ships in 3-10 days

0

5065185-01

$

$

Not available

5065335-01

$6.49

$

Usually ships in 3-10 days

0

5065187-01

Jonsered 506518701

BEARING COVER

$

$

Not available

5065341-01

Jonsered 506534101

BLADE BOSS

$

$

Not available

5310131-42

Jonsered 531013142

No Description Available

$

$

Not available

5066754-01

$5.99

$

In Stock, only 1 left!

0

5065184-01

Jonsered 506518401

BEARING HOUSING

$

$

Not available

5065186-01

$

$

Not available

7382204-19

Jonsered 738220419

BALL-BEARING 6204-2RS

$17.99

$

In Stock, only 2 left!

0

5065191-01

Jonsered 506519101

RP PULLEY
(Superseded to 535482101)

$

$

Not available

7341174-41

$4.99

$

In Stock, only 2 left!

0

5066754-01

$5.99

$

In Stock, only 1 left!

0

5310131-46

Jonsered 531013146

No Description Available
(Superseded to 589530801)

$

$

Not available

5065701-04

$6.49

$

In Stock, only 1 left!

0

5065054-01

$

$

Not available

7322118-01

Jonsered 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

5069116-02

Jonsered 506911602

No Description Available

$

$

Not available

5065701-04

$6.49

$

In Stock, only 1 left!

0

5065701-04

$6.49

$

In Stock, only 1 left!

0

5069119-01

$

$

Not available

7322118-01

Jonsered 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

5069117-02

$

$

Not available

7322118-01

Jonsered 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

5067932-01

Jonsered 506793201

PULLEY
(Superseded to 580794101)

$

$

Not available

7341164-41

$4.99

$

Usually ships in 3-10 days

0

5065583-02

$4.99

$

In Stock, only 1 left!

0
