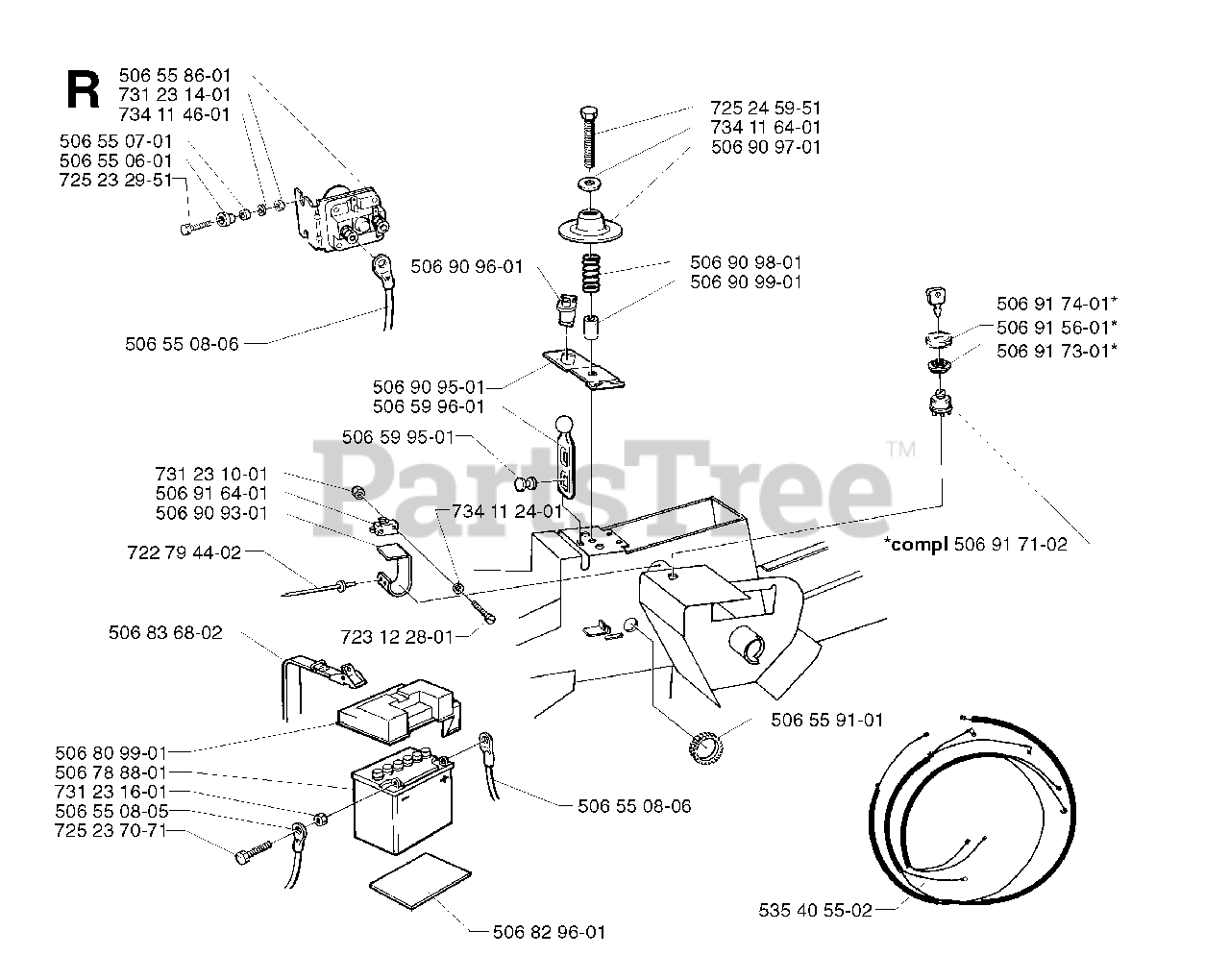

FR 2113 A - Jonsered Rear-Engine Riding Mower (2002-03) ELECTRICAL Parts Diagram

Rear-Engine Riding Mower

ELECTRICAL Parts Diagram

  • Title
5065586-01

Jonsered 506558601

STARTING SOLENOID

$

$

Not available

7312314-01

$2.49

$

Usually ships in 3-10 days

0

7341146-01

Jonsered 734114601

WASHER
(Superseded to 819070816)

$6.99

$

In Stock, only 1 left!

0

5065507-01

$

$

Not available

5065506-01

$5.99

$

In Stock, only 1 left!

0

7252329-51

$

$

Not available

5065508-06

$

$

Not available

7312310-01

Jonsered 731231001

NUT M6M M3

$3.99

$

Usually ships in 3-10 days

0

5069164-01

Jonsered 506916401

SWITCH
(Superseded to 535469101)

$14.99

$

In Stock, only 1 left!

0

5069093-01

$

$

Not available

7227944-02

$0.99

$

Usually ships in 3-10 days

0

5068368-02

$11.99

$

Usually ships in 3-10 days

0

5068099-01

$

$

Not available

5067888-01

Jonsered 506788801

BATTERY - DRY
(Superseded to 531031071)

$

$

Not available

7312316-01

$6.49

$

In Stock, only 1 left!

0

5065508-05

$

$

Not available

7252370-71

$7.49

$

Usually ships in 3-10 days

0

7231228-01

$1.49

$

Usually ships in 3-10 days

0

5065995-01

$

$

Not available

5065996-01

Jonsered 506599601

SUPPORT STRAP

$

$

Not available

5069095-01

$

$

Not available

5069096-01

$31.99

$

Usually ships in 3-10 days

0

7341124-01

Jonsered 734112401

WASHER BRB 3.2X7

$2.99

$

Usually ships in 3-10 days

0

5065508-06

$

$

Not available

5068296-01

$

$

Not available

5354055-02

Jonsered 535405502

No Description Available

$

$

Not available

5065591-01

Jonsered 506559101

PROTECTION RING

$

$

Not available

5069171-02

Jonsered 506917102

IGNITION SWITCH
(Superseded to 506917103)

$

$

Not available

5069173-01

Jonsered 506917301

SWITCH
(Superseded to 532124211)

$5.99

$

In Stock, only 1 left!

0

5069156-01

Jonsered 506915601

GROMMET
(Superseded to 532123620)

$5.99

$

Usually ships in 3-10 days

0

5069174-01

Jonsered 506917401

KEY
(Superseded to 516844602)

$

$

Not available

5069099-01

$

$

Not available

5069098-01

$

$

Not available

5069097-01

$14.99

$

Usually ships in 3-10 days

0

7341164-01

Jonsered 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

7252459-51

$5.99

$

In Stock, only 4 left!

0
