FR 2111 (953535101) - Jonsered Rear-Engine Riding Mower (2006-01) PEDALS Parts Diagram

Rear-Engine Riding Mower

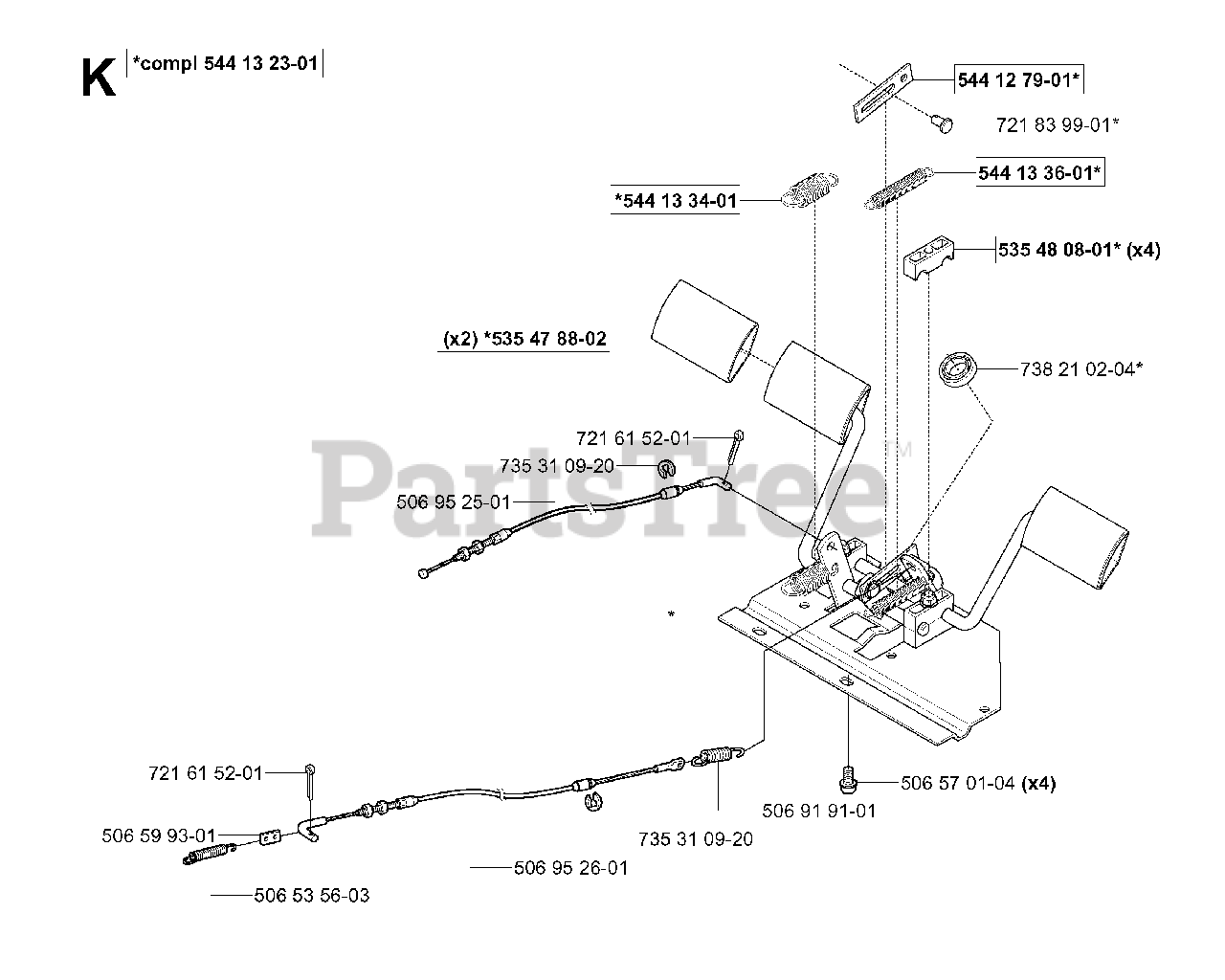

PEDALS Parts Diagram

  • Title
5441323-01

Jonsered 544132301

No Description Available

$

$

Not available

5441334-01

Jonsered 544133401

No Description Available

$

$

Not available

5354788-02

Jonsered 535478802

PEDAL RUBBER, SF
(Superseded to 506506202)

$17.99

$

In Stock, only 3 left!

0

7216152-01

Jonsered 721615201

COTTER PIN

$1.49

$

Usually ships in 3-10 days

0

7353109-20

$7.49

$

In Stock, Qty 7

0

5069525-01

$60.99

$

Usually ships in 3-10 days

0

7216152-01

Jonsered 721615201

COTTER PIN

$1.49

$

Usually ships in 3-10 days

0

5065993-01

Jonsered 506599301

CONNECTOR

$

$

Not available

5065356-03

$5.99

$

In Stock, only 1 left!

0

5069526-01

$

$

Not available

7353109-20

$7.49

$

In Stock, Qty 7

0

5069191-01

$5.76

$

Usually ships in 3-10 days

0

5065701-04

$6.49

$

In Stock, only 1 left!

0

7382102-04

Jonsered 738210204

BALL BEARING 6002-2RS1

$13.99

$

Usually ships in 3-10 days

0

5354808-01

Jonsered 535480801

PEDAL SHAFT CLAMP
(Superseded to 506506501)

$7.99

$

Usually ships in 3-10 days

0

5441336-01

Jonsered 544133601

No Description Available

$

$

Not available

7218399-01

Jonsered 721839901

CLEVIS PIN

$4.99

$

Usually ships in 3-10 days

0

5441279-01

Jonsered 544127901

No Description Available

$

$

Not available
